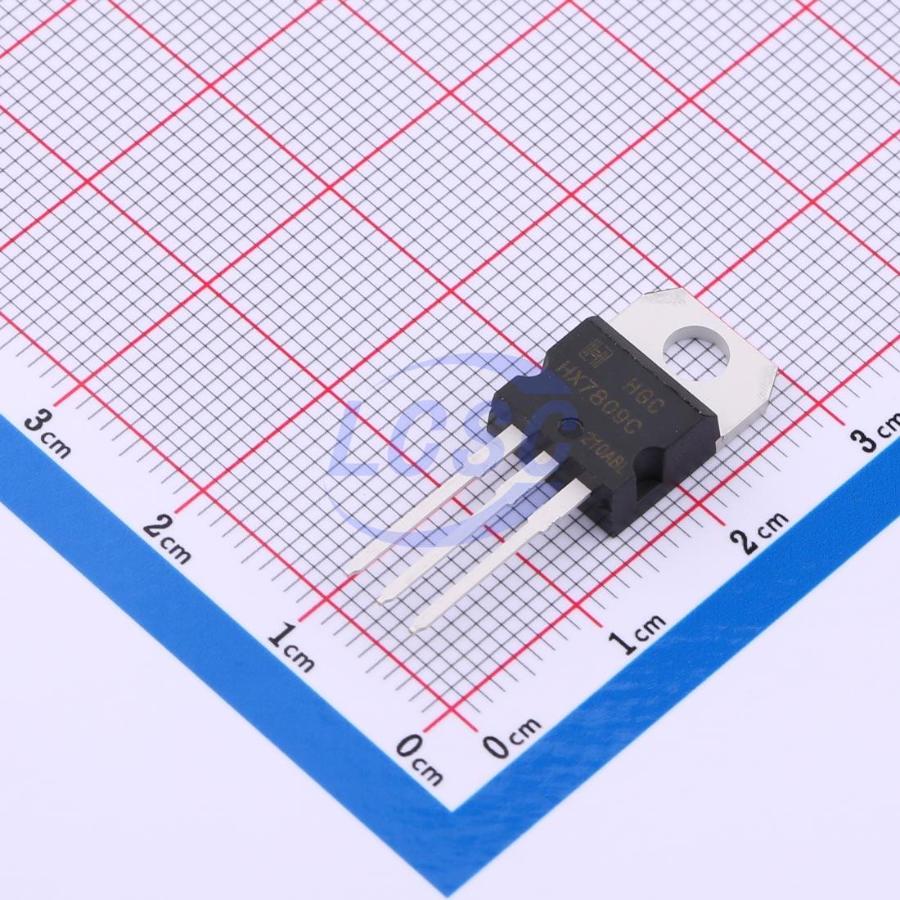

HX7809CTG HANSCHIP semiconductor

HANSCHIP semiconductor

HX7809CTG

Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-220

TO-220ROHS CompliantActive

Bipolar linear integrated circuit, three-terminal 1A positive power supply voltage regulator circuit

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: HX7809CTG
Store part #: C2977157
Package / case: TO-220
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,000 in stock

#C2977157

Stock & price checked 31 h ago

Quantity	Unit price	Pack price
5+	₹24.09	₹120.45
50+	₹18.44	₹922.00
150+	₹16.29	₹2,443.50
500+	₹13.59	₹6,795.00
2,000+	₹12.38	₹24,760.00
5,000+	₹11.67	₹58,350.00

Quantity (min 5, multiples of 5)

5 × ₹24.09

₹120.45

excl. GST

₹142.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

HX7809CTG

₹120.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 9V
Number of Outputs: 1
Operating Temperature: 0℃~+85℃@(Ta)
Supply Current (Iq): 5mA
Output Configuration: Positive
Operating Voltage: 24V
Output Current: 1A
Features: Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 2.5 g

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	LM7809CTG#C49451910HANSCHIP semiconductor · TO-220-3	HANSCHIP semiconductor	TO-220-3	860	₹28.05 · 860 in stock	View
	LM7809TG#C5145468HANSCHIP semiconductor · TO-220-3L	HANSCHIP semiconductor	TO-220-3L	870	₹24.49 · 870 in stock	View
