hengjiaxingDatasheet (PDF)

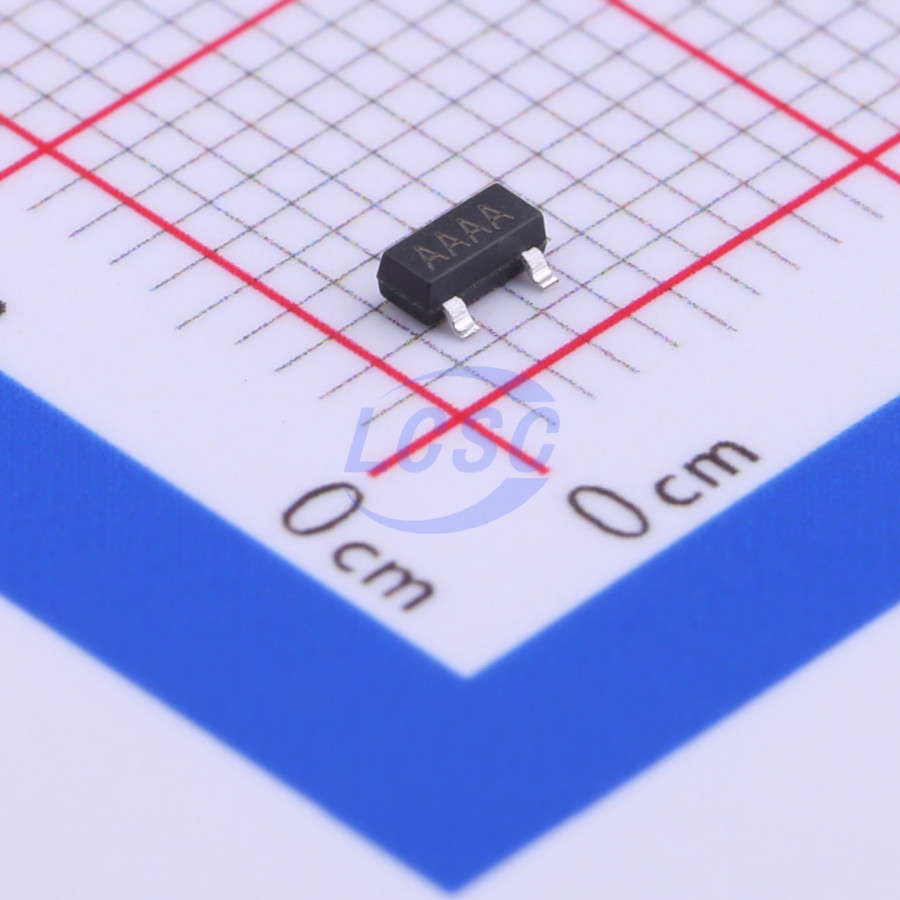

HX809L-4.63V
Supervisor 1 Channel SOT-23
SOT-23ROHS CompliantActive
Low-Voltage Reset Detector
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX809L-4.63V
- Store part #
- C296140
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,290 in stock
#C296140
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.58 | ₹65.80 |
| 100+ | ₹5.25 | ₹525.00 |
| 300+ | ₹4.59 | ₹1,377.00 |
| 3,000+ | ₹3.84 | ₹11,520.00 |
| 6,000+ | ₹3.44 | ₹20,640.00 |
| 9,000+ | ₹3.24 | ₹29,160.00 |
10 × ₹6.58
₹65.80
excl. GST
₹77.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX809L-4.63V
₹65.80 for 10 + GST
Specifications
- output type
- Open-drain
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 350ms
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 900mV~6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The HX809XX series is a three-port low-voltage reset detection monitor implemented using digital system circuit design technology, providing a reset monitoring signal to the host processor. This series of reset detection monitors can monitor fixed voltages from 1.0V to 5.0V, with simple application requiring no external components.
Applications
- Battery-powered equipment
- Non-volatile RAM signal storage protector
- Power failure detector
- Critical MP power supply monitor
- Computers and microprocessor systems
- Embedded systems
Key features
- Low power consumption: 2.0uA (typical)
- Wide operating voltage range: 0.9V~6.0V
- VCC transient noise immunity
- No external components required
- Built-in reset delay time 350ms (typical)
- High-accuracy reset voltage: ±2%
- Compact package: SOT23, SOT89-3
