HANSCHIP semiconductorDatasheet (PDF)
HX809RDBZRG

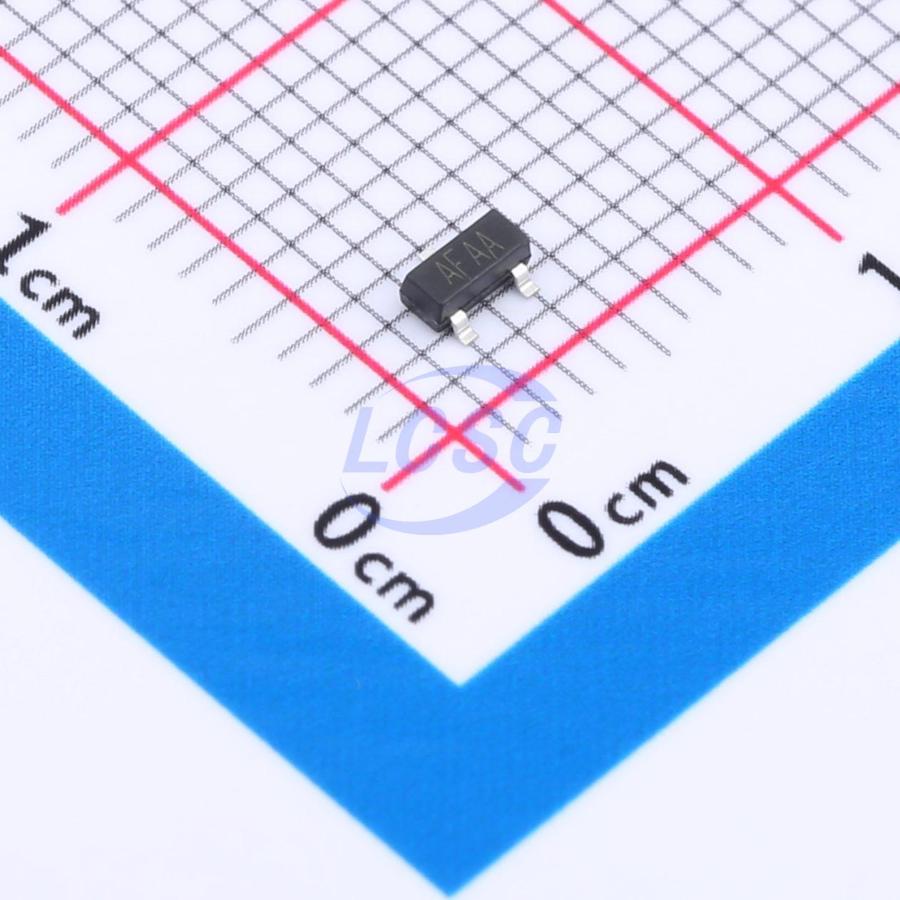

Supervisor Open Drain 1 Channel SOT-23-3
SOT-23-3ROHS CompliantActive
Low-Voltage Reset Detector
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- HX809RDBZRG
- Store part #
- C5145366
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,380 in stock
#C5145366
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.86 | ₹97.20 |
| 200+ | ₹3.81 | ₹762.00 |
| 600+ | ₹3.23 | ₹1,938.00 |
| 3,000+ | ₹2.77 | ₹8,310.00 |
| 9,000+ | ₹2.46 | ₹22,140.00 |
| 21,000+ | ₹2.30 | ₹48,300.00 |
20 × ₹4.86
₹97.20
excl. GST
₹114.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX809RDBZRG
₹97.20 for 20 + GST
Specifications
- Reset Timeout
- 350ms
- output type
- Open-drain
- Operating Temperature
- -50℃~+95℃@(TA)
- Reset Active Level
- Active Low
- standby current
- 5.5uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.04 g
Overview
The HX809X series is a three-port low-voltage reset detector/supervisor implemented using digital system circuit design technology, providing a reset monitoring signal for host processors. This series can monitor fixed voltages ranging from 1.0V to 5.0V, offering simple application with no external components required.
Applications
- Battery-powered equipment
- Power failure detection
- Computers and microprocessors
- Non-volatile RAM signal storage protection
- Critical MP power supply monitoring
Key features
- Low power consumption: 5.5μA at VCC=6V (typical)
- Wide operating voltage range: 1V ~ 6.0V
- VCC transient noise immunity
- No external components required
- Built-in reset delay time: 200ms (typical)
- High-accuracy reset voltage: ±2.5%
- Compact package: SOT-23
Alternatives
Similar parts — check the datasheet before substituting.
