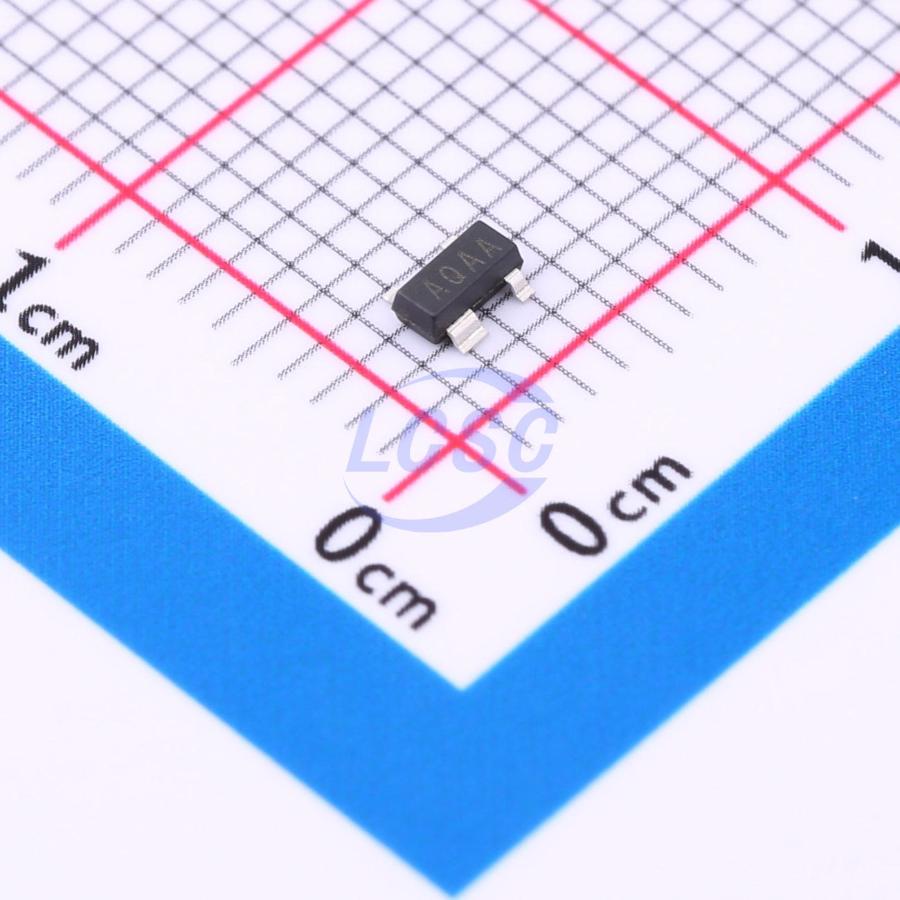

HX811SDB4RG
Manual reset input Active Low 1V~6V 1 SOT-143 Supervisors RoHS
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- HX811SDB4RG
- Store part #
- C5145358
- Package / case
- SOT-143
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,635 in stock
#C5145358
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.03 | ₹60.15 |
| 50+ | ₹9.57 | ₹478.50 |
| 150+ | ₹8.35 | ₹1,252.50 |
| 500+ | ₹7.42 | ₹3,710.00 |
| 3,000+ | ₹6.38 | ₹19,140.00 |
| 6,000+ | ₹6.01 | ₹36,060.00 |
5 × ₹12.03
₹60.15
excl. GST
₹70.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX811SDB4RG
₹60.15 for 5 + GST
Specifications
- Operating Temperature
- -20℃~+70℃
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 1uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The HX811X series is a microprocessor reset IC with voltage detection and enable control, designed to monitor the supply voltage of microcontrollers or other logic systems. It provides a reset signal to the system during power-up, power-down, and power-saving conditions, or when the supply voltage falls below the preset threshold voltage Vth. When the supply voltage rises above Vth or the enable pin transitions from low to high, the VOUT output goes high after a delay of Trp. When the input voltage falls below Vth, VOUT goes low; VOUT also goes low when the enable control pin is at a low level. The IC requires no external components, making it simple to use.
Applications
- Battery-powered devices
- Power failure detectors
- Computers and microprocessors
- Non-volatile RAM signal storage protectors
- Critical MP power supply monitoring
- Embedded systems
Key features
- Low power consumption: 2uA (typ.) @ VMR = VCC
- Wide operating voltage range: 1V ~ 6.0V
- VCC transient noise immunity
- Simple application, no external components required
- Built-in reset delay time: 500ms (typ.)
- High-accuracy reset voltage: ±2.5%
- Enable control pin, active low
- Compact package: SOT-143
