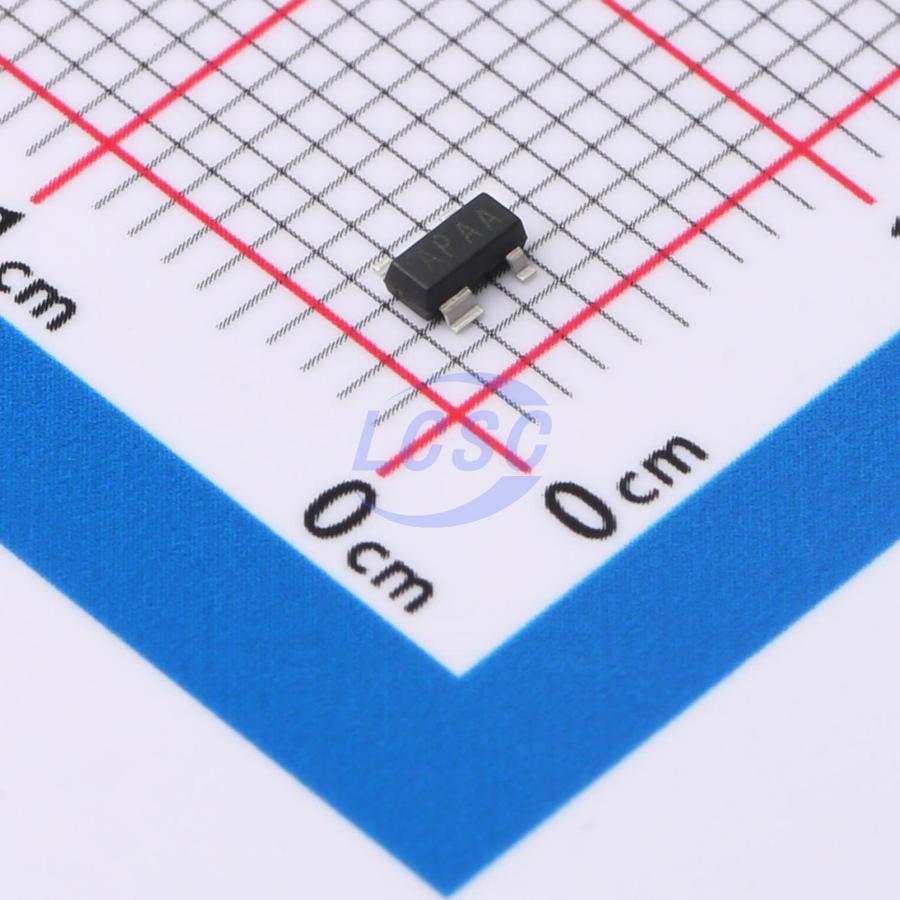

HX811TDB4RG
Supervisor Open Drain 1 Channel SOT-143
Low-Voltage Reset Detector
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- HX811TDB4RG
- Store part #
- C5145357
- Package / case
- SOT-143
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,835 in stock
#C5145357
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.01 | ₹60.05 |
| 50+ | ₹9.54 | ₹477.00 |
| 150+ | ₹8.30 | ₹1,245.00 |
| 500+ | ₹7.37 | ₹3,685.00 |
| 3,000+ | ₹6.31 | ₹18,930.00 |
| 6,000+ | ₹5.94 | ₹35,640.00 |
5 × ₹12.01
₹60.05
excl. GST
₹70.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX811TDB4RG
₹60.05 for 5 + GST
Specifications
- Operating Temperature
- -20℃~+70℃@(TA)
- output type
- Open-drain
- Reset Timeout
- 500ms
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 32uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.29 g
Overview
A microprocessor reset IC with voltage detection function and enable control pin, designed to monitor the supply voltage of microcontrollers or other logic systems. It can provide a reset signal to the system during power-up, power-down, and power-saving conditions, or when the supply voltage falls below the preset detection voltage Vth. Meanwhile, when powering up or when the supply voltage recovers above the preset detection voltage Vth, or when the enable pin MR(overline) transitions from low to high, the VRESET output will go high after a delay of Trp. When the input voltage falls below the detection voltage Vth, VRESET output is low; when the enable control pin MR(overline) is low, VRESET output is also low. Simple to implement with no external components required.
Applications
- Battery-powered equipment
- Non-volatile RAM signal storage protector
- Power failure detector
- Critical MP power supply monitor
- Computers and microprocessor systems
- Embedded systems
Key features
- Low power consumption: 2uA (typical) @VMR = VCC
- Wide operating voltage range: 1 - 6.0V
- VCC transient noise immunity
- Simple application, no external components required
- Built-in reset delay time 500ms (typical)
- High accuracy reset voltage: ±2.5%
- Enable control pin MR(overline), active low
- Compact package: SOT143
