InfineonDatasheet (PDF)

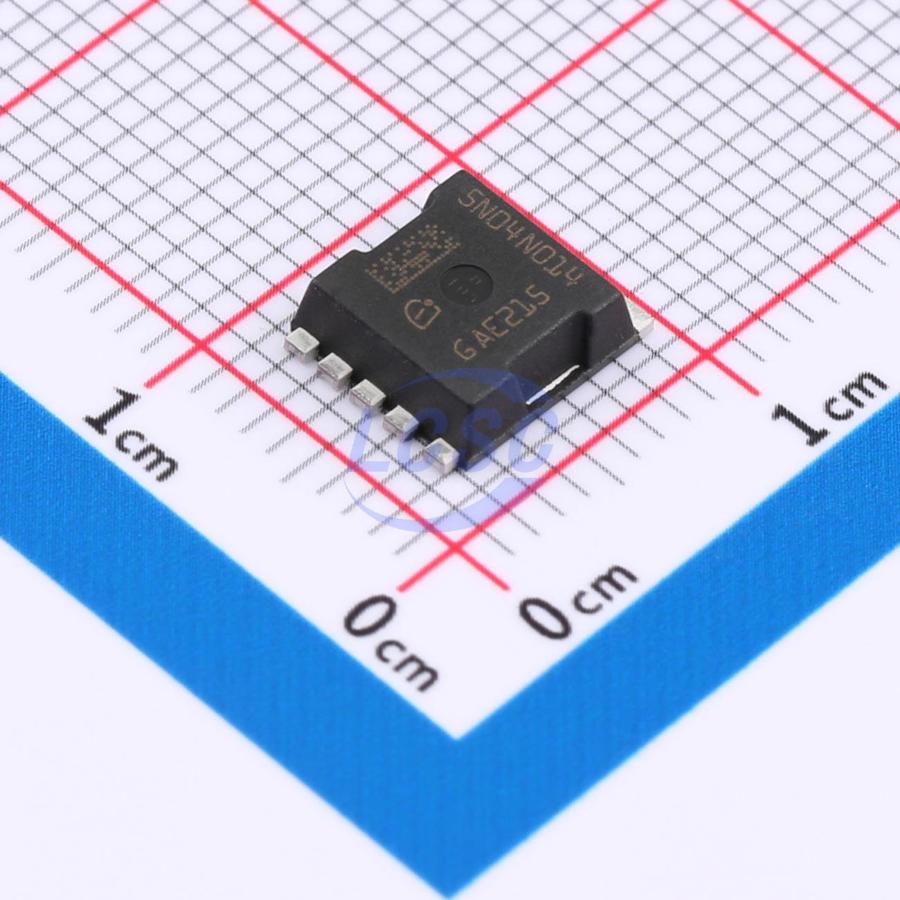

IAUA120N04S5N014
N-Channel 40V 120A 136W HSOF-5
HSOF-5ROHS3 CompliantActive
MOSFET N-CH 40V 120A HSOF-5
- Manufacturer
- Infineon
- Manufacturer part #
- IAUA120N04S5N014
- Store part #
- C3288759
- Package / case
- HSOF-5
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C3288759
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹735.40 | ₹735.40 |
| 10+ | ₹634.39 | ₹6,343.90 |
| 30+ | ₹574.23 | ₹17,226.90 |
| 100+ | ₹513.47 | ₹51,347.00 |
| 500+ | ₹485.54 | ₹2,42,770.00 |
| 1,000+ | ₹472.81 | ₹4,72,810.00 |
1 × ₹735.40
₹735.40
excl. GST
₹867.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IAUA120N04S5N014
₹735.40 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 1.317nF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 4.828nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 69pF
- RDS(on)
- 1.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 82nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.455 g
Overview
Applications
- General automotive applications.
Key features
- OptiMOS™ power MOSFET for automotive applications
- N-channel – Enhancement mode – Normal Level
- Extended qualification beyond AEC-Q101
- Enhanced electrical testing
- Robust design
- MSL3 up to 260°C peak reflow
- 175°C operating temperature
- Green product (RoHS compliant)
- 100% Avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IAUA120N04S5N014#C535688Infineon · HSOF-5 | Infineon | HSOF-5 | 10 | ₹607.23 · 10 in stock | View |
 | IAUAN04S7N008AUMA1#C27029419Infineon · HSOF-5 | Infineon | HSOF-5 | 39 | ₹315.52 · 39 in stock | View |
 | IAUA180N04S5N012AUMA1#C3278533Infineon · HSOF-5 | Infineon | HSOF-5 | 7 | ₹184.93 · 7 in stock | View |
 | IAUAN04S7N007AUMA1#C24851154Infineon · HSOF-5 | Infineon | HSOF-5 | 8 | ₹231.00 · 8 in stock | View |
 | IAUA250N08S5N018AUMA1#C3278535Infineon · HSOF-5 | Infineon | HSOF-5 | 5 | ₹462.97 · 5 in stock | View |
