Infineon

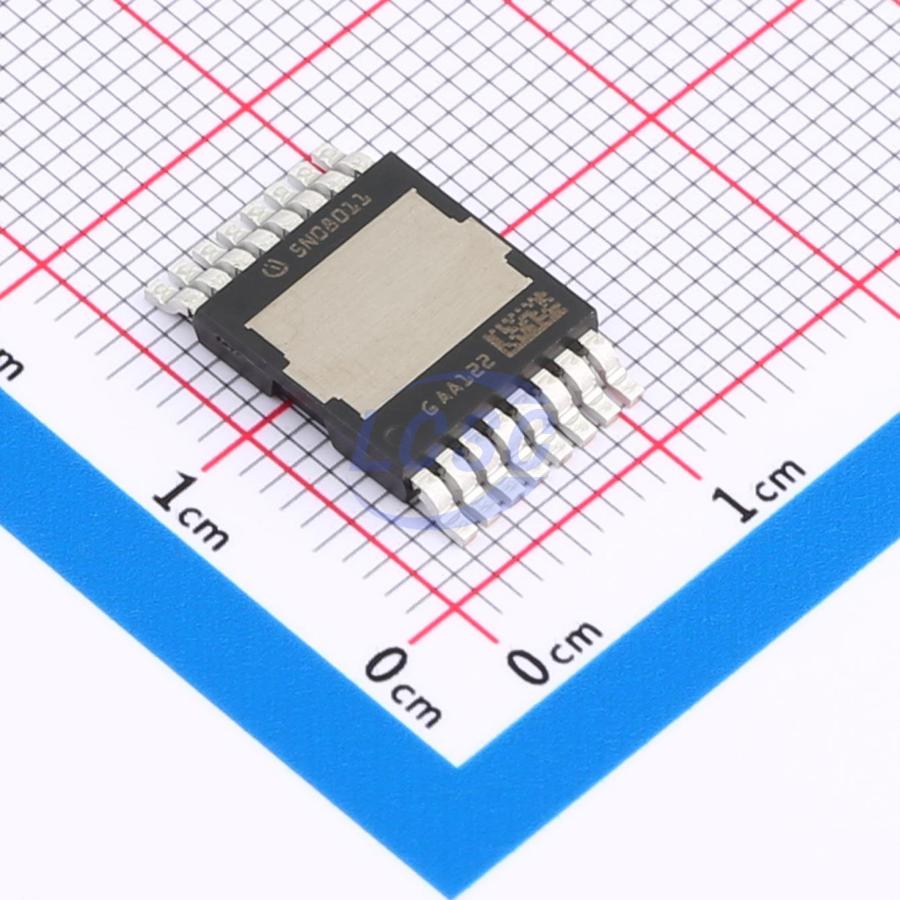

IAUS300N08S5N011TATMA1

N-Channel 80V 300A 375W Surface Mount HDSOP-16

HDSOP-16ROHS3 CompliantActive

MOSFET N-CH 80V 300A HDSOP-16

Manufacturer: Infineon
Manufacturer part #: IAUS300N08S5N011TATMA1
Store part #: C5656328
Package / case: HDSOP-16
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

50 in stock

#C5656328

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹791.22	₹791.22
10+	₹682.51	₹6,825.10
30+	₹616.19	₹18,485.70
100+	₹560.53	₹56,053.00

Quantity (min 1)

1 × ₹791.22

₹791.22

excl. GST

₹933.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,800 per reel

IAUS300N08S5N011TATMA1

₹791.22 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+175℃
Drain to Source Voltage: 80V
Current - Continuous Drain(Id): 300A
Ciss-Input Capacitance: 16.25nF
Pd - Power Dissipation: 375W
Reverse Transfer Capacitance (Crss): 130pF
RDS(on): 1.1mΩ@10V
Number: 1 N-channel
Gate Charge(Qg): 231nC@10V
Gate Threshold Voltage (Vgs(th)): 3V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,800 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.95 g

Overview

This MOSFET is designed to meet the stringent requirements of automotive applications. It is AEC-Q101 compliant with PPAP support, making it ideal for: backlighting, power management functions, DC-DC converters

Applications

Backlighting
Power management functions
DC-DC converter

Key features

OptiMOS power MOSFET for automotive applications
N-channel - Enhancement mode - Normal level
Extended qualification beyond AEC-Q101
Enhanced electrical testing
Robust design
MSL1 rated up to 260°C peak reflow temperature
175°C operating temperature
Green product (RoHS compliant)
100% avalanche tested

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
IAUS300N10S5N015TATMA1#C3288751Infineon · HDSOP-16	Infineon	HDSOP-16	4	₹829.92 · 4 in stock	View
IPTC015N10NM5ATMA1#C3278524Infineon · HDSOP-16	Infineon	HDSOP-16	1	₹795.76 · 1 in stock	View
IPTC017N12NM6ATMA1#C17701797Infineon · HDSOP-16	Infineon	HDSOP-16	4	₹1,224.57 · 4 in stock	View
IPTC019N10NM5ATMA1#C3278522Infineon · HDSOP-16	Infineon	HDSOP-16	22	₹583.88 · 22 in stock	View
IPTC014N10NM5ATMA1#C5443905Infineon · HDSOP-16	Infineon	HDSOP-16	On request	₹1,414.30 · 0 in stock	View
