InfineonDatasheet (PDF)

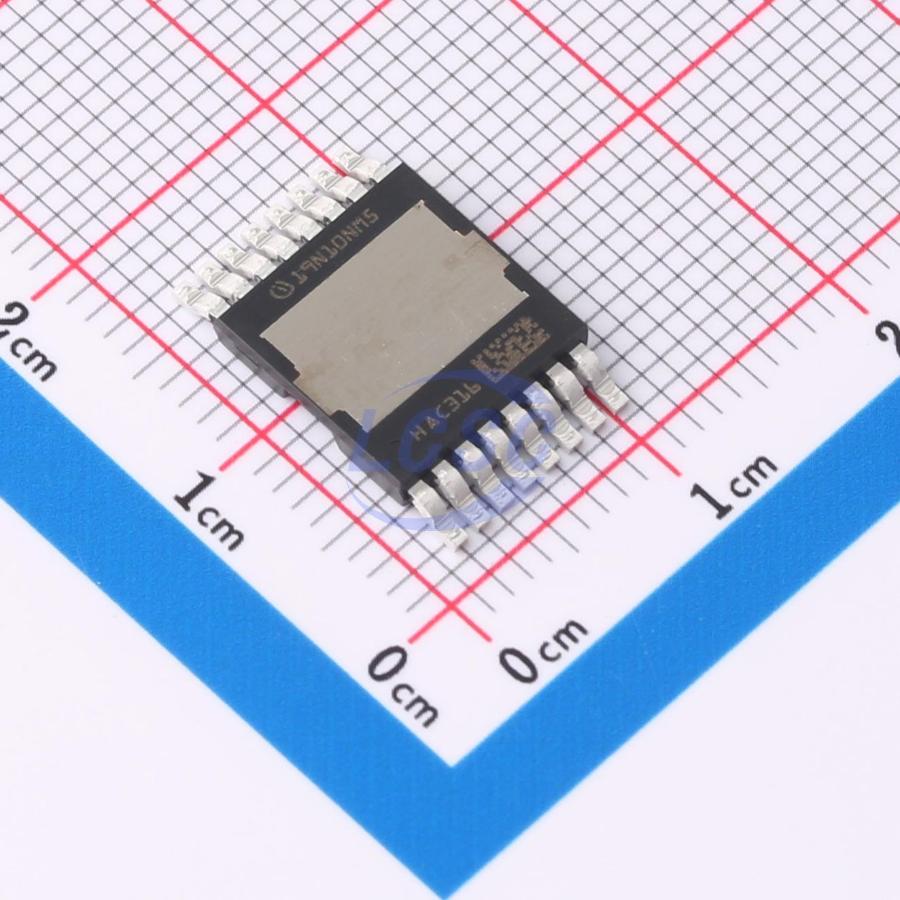

IPTC019N10NM5ATMA1
N-Channel 100V 279A 300W Surface Mount HDSOP-16
HDSOP-16ROHS3 CompliantActive
MOSFET N-CH 100V 279A HDSOP-16
- Manufacturer
- Infineon
- Manufacturer part #
- IPTC019N10NM5ATMA1
- Store part #
- C3278522
- Package / case
- HDSOP-16
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C3278522
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹583.88 | ₹583.88 |
| 10+ | ₹496.54 | ₹4,965.40 |
| 30+ | ₹444.59 | ₹13,337.70 |
| 100+ | ₹392.23 | ₹39,223.00 |
| 500+ | ₹367.89 | ₹1,83,945.00 |
| 1,000+ | ₹357.02 | ₹3,57,020.00 |
1 × ₹583.88
₹583.88
excl. GST
₹688.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
IPTC019N10NM5ATMA1
₹583.88 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 1.8nF
- Current - Continuous Drain(Id)
- 279A
- Ciss-Input Capacitance
- 12nF
- Pd - Power Dissipation
- 300W
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 1.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 160nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.86 g
Overview
N-channel enhancement-mode MOSFET with 500 A continuous drain current, standard-level gate drive, in LFPAK88 package. Nexperia's NextPowerS3 series, featuring the proprietary SchottkyPlus technology, delivers high efficiency and low-spike performance — typically achievable only in MOSFETs with integrated Schottky or Schottky-like diodes — without the drawback of high leakage current. NextPowerS3 is especially suited for high-efficiency applications at high switching frequencies, as well as safe and reliable switching under high load currents.
Applications
- Brushless DC motor control
- Synchronous rectifiers in high-power AC-DC applications such as server power supplies
- Battery protection and battery management systems (BMS)
- Electronic fuses and load switches
- Hot-plug/inrush current management
Key features
- Optimized for motor drives and battery powered applications
- Optimized for top side cooling
- High current capability
- 175°C rated
- 100% avalanche tested
- Superior thermal performance
- N-channel
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IAUS260N10S5N019TATMA1#C3278526Infineon · HDSOP-16 | Infineon | HDSOP-16 | 19 | ₹681.89 · 19 in stock | View |
 | IPTC015N10NM5ATMA1#C3278524Infineon · HDSOP-16 | Infineon | HDSOP-16 | 1 | ₹795.76 · 1 in stock | View |
 | IAUS300N10S5N015TATMA1#C3288751Infineon · HDSOP-16 | Infineon | HDSOP-16 | 4 | ₹829.92 · 4 in stock | View |
 | IPTC020N13NM6ATMA1#C22408422Infineon · HDSOP-16 | Infineon | HDSOP-16 | 10 | ₹1,460.08 · 10 in stock | View |
 | IPTC017N12NM6ATMA1#C17701797Infineon · HDSOP-16 | Infineon | HDSOP-16 | 4 | ₹1,224.57 · 4 in stock | View |
