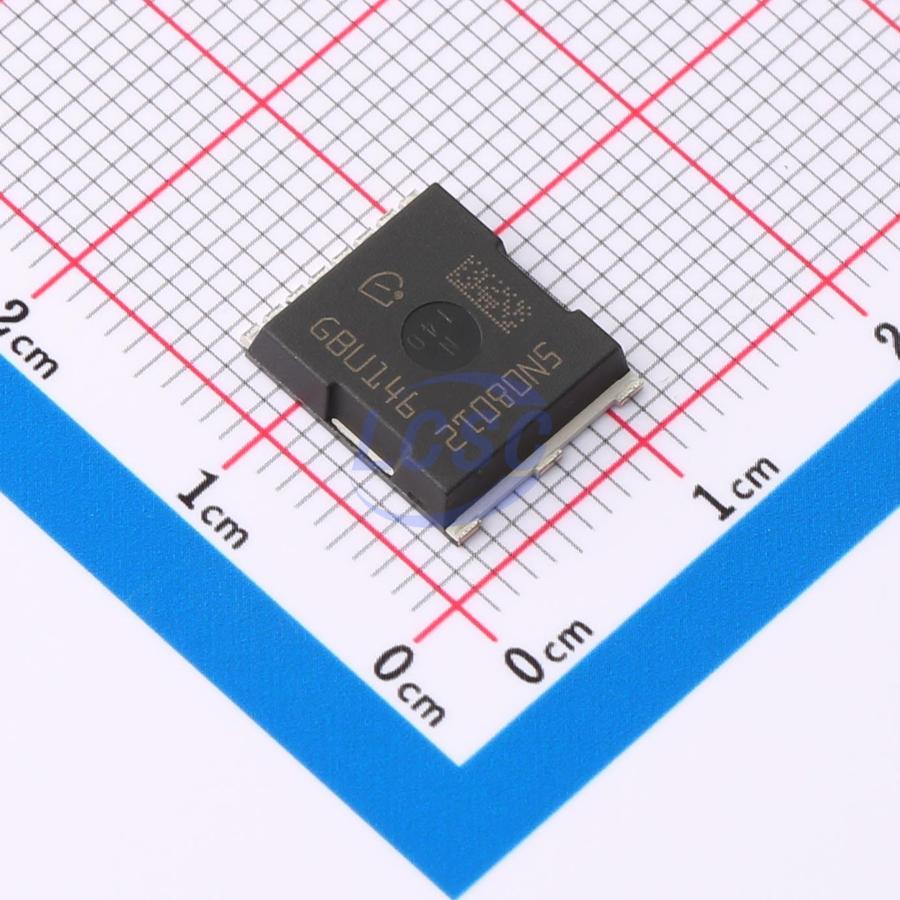

InfineonDatasheet (PDF)
IAUT300N08S5N012ATMA2
N-Channel 80V 375W HSOF-8
HSOF-8ROHS3 CompliantActive
MOSFET N-CH 80V HSOF-8
- Manufacturer
- Infineon
- Manufacturer part #
- IAUT300N08S5N012ATMA2
- Store part #
- C3278548
- Package / case
- HSOF-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C3278548
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹772.51 | ₹772.51 |
| 10+ | ₹673.65 | ₹6,736.50 |
| 30+ | ₹614.89 | ₹18,446.70 |
| 100+ | ₹555.49 | ₹55,549.00 |
| 500+ | ₹528.17 | ₹2,64,085.00 |
| 1,000+ | ₹515.81 | ₹5,15,810.00 |
1 × ₹772.51
₹772.51
excl. GST
₹911.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IAUT300N08S5N012ATMA2
₹772.51 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Output Capacitance(Coss)
- 2.114nF
- Current - Continuous Drain(Id)
- 300A
- Ciss-Input Capacitance
- 16.25nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 1.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 231nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.92 g
Overview
CoolMOS is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The latest CoolMOS CFD7 is the successor to the CoolMOS CFD2 series — an optimized platform tailored for soft-switching applications such as phase-shifted full-bridge (ZVS) and LLC. With reduced gate charge (Qg), best-in-class reverse recovery charge (Qrr), and improved turn-off characteristics, CoolMOS CFD7 delivers maximum efficiency in resonant topologies. As part of Infineon's fast body diode portfolio, this new product family combines all the advantages of fast switching technology with outstanding hard-commutation robustness, while ensuring ease of implementation throughout the design-in process.
Applications
- Soft-switching topology
- Phase-shifted full-bridge (ZVS), LLC applications — servers, telecom, EV charging
Key features
- N-channel - Enhancement mode
- AEC qualified
- MSL1 up to 260°C peak reflow
- 17500 operating temperature
- Green product (RoHS compliant)
- Ultra low Rds(on)
- 100% Avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IAUT300N08S5N011ATMA1#C3288767Infineon · HSOF-8 | Infineon | HSOF-8 | On request | ₹768.53 · 0 in stock | View |
| IAUT300N10S5N014ATMA1#C3288775Infineon · HSOF-8 | Infineon | HSOF-8 | 11 | ₹903.25 · 11 in stock | View | |
 | IPT010N08NM5ATMA1#C3288766Infineon · HSOF-8 | Infineon | HSOF-8 | 165 | ₹954.29 · 165 in stock | View |
 | IPT015N10N5#C108964Infineon · HSOF-8 | Infineon | HSOF-8 | 37,083 | ₹245.68 · 37,083 in stock | View |
 | IPT020N10N3ATMA1#C6062371Infineon · HSOF-8 | Infineon | HSOF-8 | 1 | ₹1,739.98 · 1 in stock | View |
