Inbisen

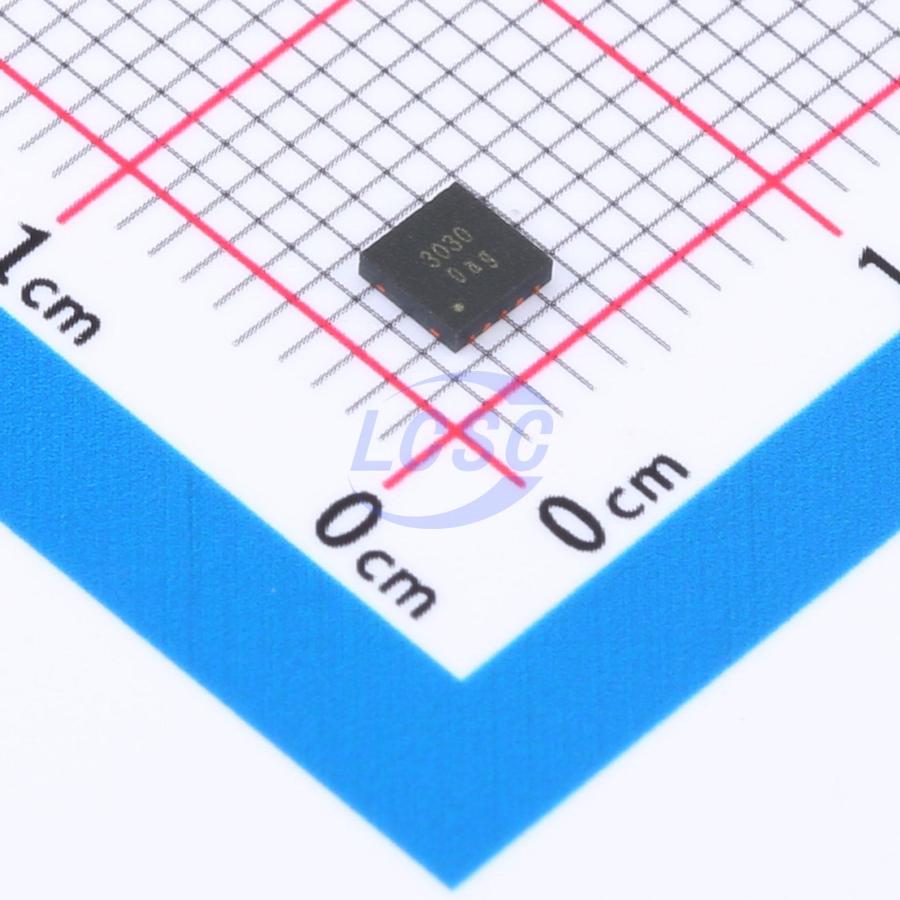

IBSP3030ADJDN10R00

Linear Voltage Regulator IC Positive Adjustable 1 Output 200mA DFN-10-EP(3x3)

DFN-10-EP(3x3)RoHSActive

Ultra-low noise, 20V, 200mA, low quiescent current linear regulator

Manufacturer: Inbisen
Manufacturer part #: IBSP3030ADJDN10R00
Store part #: C19267516
Package / case: DFN-10-EP(3x3)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,211 in stock

#C19267516

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹477.87	₹477.87
10+	₹408.05	₹4,080.50
30+	₹366.64	₹10,999.20
100+	₹324.80	₹32,480.00
500+	₹305.49	₹1,52,745.00
1,000+	₹296.60	₹2,96,600.00

Quantity (min 1)

1 × ₹477.87

₹477.87

excl. GST

₹563.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

IBSP3030ADJDN10R00

₹477.87 for 1 + GST

Specifications

Output Voltage: 500mV~16V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 3.2mA
Output Configuration: Positive
Output Current: 200mA
Operating Voltage: 20V
Output Type: Adjustable
Features: Enable control;Operating status indication;Adjustable current limiting;Input under-voltage protection;Over Current Protection;Short Circuit Protection;Reverse-polarity current protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.26 g

Overview

The IBSP3030 is a 0.5V to 16V adjustable output, high-performance, low-dropout linear regulator. It employs an ultra-low noise and ultra-high PSRR architecture, making it ideal for noise-sensitive applications. The device delivers 200mA of output current at a typical dropout voltage of 350mV. Quiescent current is typically 3.2mA, dropping to well below 1μA in shutdown mode. It features a wide output voltage range (0.5V to 16V) while providing excellent output noise, PSRR, bandwidth, and load regulation at stable output. In addition, the regulator offers programmable current limiting, fast startup, and output voltage regulation indication capability. A ceramic output capacitor of no less than 4.7μF is recommended to achieve optimal noise performance and ensure circuit stability. Multiple built-in protection features include overcurrent protection, internal foldback current limiting, and thermal shutdown. Available in DFN10 and MSOP10 packages.

Applications

RF power supplies: PLL, VCO, mixers, LNA
Ultra-low-noise instrumentation
High-speed/high-precision data converters
Medical applications: imaging, diagnostics
High-precision power supplies
Post-regulators for switching power supplies

Key features

Ultra-low RMS noise: 1.6μVRMS (VN = 4V, VOUT = 3V, IOUT = 10mA, 10Hz to 100kHz)
Ultra-low noise density: 3nV/√Hz (at 10kHz)
Ultra-high PSRR: 120dB (at 100Hz), 118dB (at 10kHz), 95dB (at 100kHz), 78dB (at 1MHz), 40dB (at 10MHz)
Output current: 200mA
Wide input voltage range: 2.4V to 20V
Single capacitor improves noise and PSRR
High bandwidth: 1MHz
Programmable current limit
Dropout voltage: 350mV @200mA
Output voltage range: 0.5V to 16V
Fast startup capability
High-accuracy enable/UVLO
Internal foldback current limiting
Output voltage configured via external resistor
