Inbisen

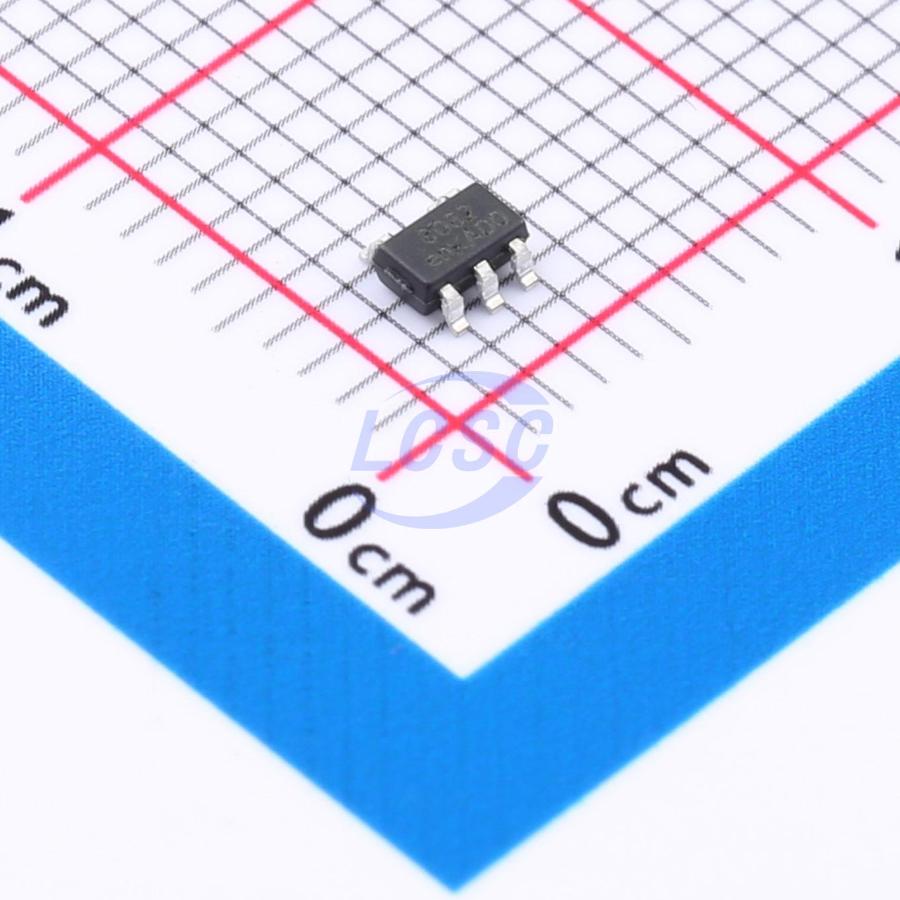

IBSP3032ADJST5R00

Linear Voltage Regulator IC Positive Adjustable 1 Output 300mA SOT23-5

SOT23-5RoHSActive

20V, 300mA low-noise, low quiescent current linear regulator

Manufacturer: Inbisen
Manufacturer part #: IBSP3032ADJST5R00
Store part #: C18164956
Package / case: SOT23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,679 in stock

#C18164956

Stock & price checked 43 h ago

Quantity	Unit price	Pack price
1+	₹214.88	₹214.88
10+	₹182.28	₹1,822.80
30+	₹161.87	₹4,856.10
100+	₹140.79	₹14,079.00
500+	₹131.23	₹65,615.00
1,000+	₹127.10	₹1,27,100.00

Quantity (min 1)

1 × ₹214.88

₹214.88

excl. GST

₹253.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

IBSP3032ADJST5R00

₹214.88 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.2V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 40uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 20V
Output Type: Adjustable
Features: Enable control;Built-in soft-start;Reverse polarity voltage protection;Over Current Protection;Short Circuit Protection;Thermal shutdown;Input under-voltage protection

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.044 g

Overview

IBSP3032 is a low-dropout linear regulator (LDO) powered by a 2.7 V to 20 V supply, with a maximum output current of 300 mA. This high-input-voltage LDO delivers an adjustable output voltage from 1.2 V to VIN - VDO, featuring high power supply rejection ratio (PSRR) and low noise, making it ideal for powering high-performance analog and mixed-signal circuits. The device employs an advanced circuit architecture and a unique process technology, requiring only a single 2.2 uF small ceramic capacitor for both CIN and COUT to achieve excellent line and load transient response performance. The IBSP3032 output voltage can be adjusted above the initial setpoint via an external resistive voltage divider, enabling an output voltage range from 1.2 V to VIN - VDO.

Applications

Noise-sensitive applications: ADC, DAC, precision amplifiers, communications and infrastructure
Medical and healthcare
Industrial and instrumentation

Key features

Low noise: 10 uVrms (IOUT = 300 mA)
PSRR: 100 dB (10 Hz), 91 dB (10 kHz), 62 dB (100 kHz)
Input voltage range: 2.7 V to 20 V
Output voltage range: 1.2 V to VIN - VDO
Fixed output voltage versions: 3.3 V and 5 V
Output current: 300 mA
Initial accuracy: < ±1%
Low dropout: 67 mV (IOUT = 50 mA), 203 mV (IOUT = 150 mA), 450 mV (IOUT = 300 mA)
Internal soft-start
Low quiescent current: IGND = 40 uA (typical, no load)
Low shutdown current: 1.2 uA
Precision enable
Reverse battery protection
