MAXIMDatasheet (PDF)

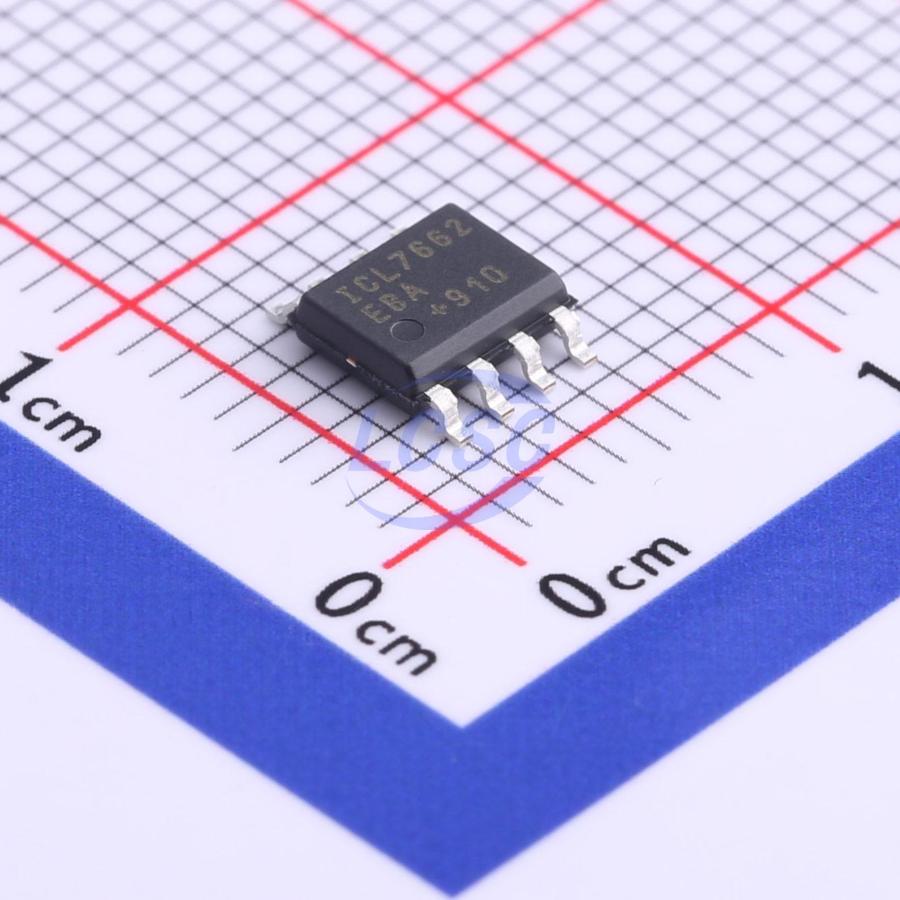

ICL7662EBA+T
Inverted 10kHz -20V~-4.5V SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8ROHS3 CompliantActive
CMos Voltage Converters
- Manufacturer
- MAXIM
- Manufacturer part #
- ICL7662EBA+T
- Store part #
- C28595
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,330 in stock
#C28595
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹255.79 | ₹255.79 |
| 10+ | ₹217.26 | ₹2,172.60 |
| 30+ | ₹193.32 | ₹5,799.60 |
| 100+ | ₹168.71 | ₹16,871.00 |
| 500+ | ₹157.61 | ₹78,805.00 |
| 1,000+ | ₹152.82 | ₹1,52,820.00 |
1 × ₹255.79
₹255.79
excl. GST
₹301.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ICL7662EBA+T
₹255.79 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Inverted
- Frequency - Switching
- 10kHz
- Features
- Cascade support
- Operating Voltage
- 4.5V~20V
- Output Voltage
- -20V~-4.5V
- Quiescent Current
- 200uA
- Energy Efficiency
- 96%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.219 g
Overview
The ICL7662/Si7661 is a monolithic charge_ pump voltage inverter that will convert a positive voltage in the range of +4.5V to +20V to the corresponding negative voltage of -4.5V to -20V. The ICL7662/Si7661 provides performance far superior to previous implementations of charge pump voltage inverters by combining low quiescent current with high efficiency. The ICL7662/Si7661 has an oscillator, control circuitry, and 4 power MOS switches on-chip, with the only required external components being two low cost capacitors.
Applications
- Inexpensive Negative Supplies
- Data Acquisition Systems
- Up to -20V for Op Amps, and Other Linear Circuits
- Supply Splitter, Vout = Vs/2
- RS-232 Power Supplies
Key features
- +4.5V to ±20V Supply to -4.5V to -20V Output
- Cascaded Voltage Multiplication (Vout = -n × Vin)
- 99.7% Typical Open Circuit Conversion Efficiency
- Requires Only 2 External Capacitors
- Pin Compatible with the ICL7660
