ICWDatasheet (PDF)

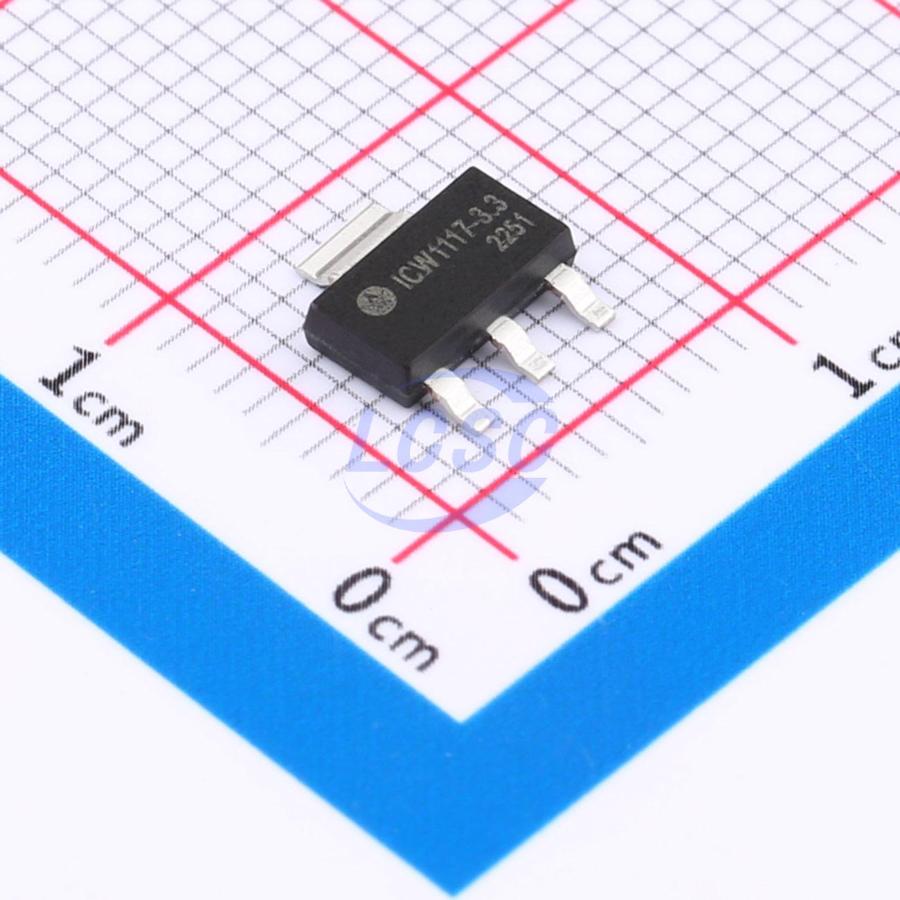

ICW1117-3.3V
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-89
SOT-89ROHS CompliantActive
1A adjustable/fixed low-dropout linear regulator
- Manufacturer
- ICW
- Manufacturer part #
- ICW1117-3.3V
- Store part #
- C5448702
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,955 in stock
#C5448702
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.36 | ₹101.80 |
| 50+ | ₹15.98 | ₹799.00 |
| 150+ | ₹14.12 | ₹2,118.00 |
| 500+ | ₹11.77 | ₹5,885.00 |
| 2,500+ | ₹10.74 | ₹26,850.00 |
| 5,000+ | ₹10.11 | ₹50,550.00 |
5 × ₹20.36
₹101.80
excl. GST
₹120.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ICW1117-3.3V
₹101.80 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.171 g
Overview
The ICW1117 series is a low dropout three-terminal voltage regulator with a dropout voltage of 1.3V at 1A load current. It features a very low standby current of 2mA. In addition to fixed output versions of Vout = 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V, an adjustable version is also available, providing output voltages from 1.25V to 12V using only two external resistors. Thermal shutdown protection is provided to ensure the stability of the IC and power supply system. Trimming technology is employed to guarantee output voltage accuracy within 2%. Other output voltage accuracy options, such as 1%, are available upon request. Available in SOT-223, TO-252, and SOT89 power packages.
Applications
- Post regulator for switching DC/DC converters
- High-efficiency linear regulator
- Battery charger
- PCI add-in cards
- Motherboard clock supply
- LCD monitors
- Set-top boxes
Key features
- Output current: 1A
- Input voltage range: 15V
- Line regulation: 0.03%/V (typical)
- Standby current: 2mA (typical)
- Load regulation: 0.2%/A (typical)
- Ambient temperature: -40℃~85℃
