ICWDatasheet (PDF)

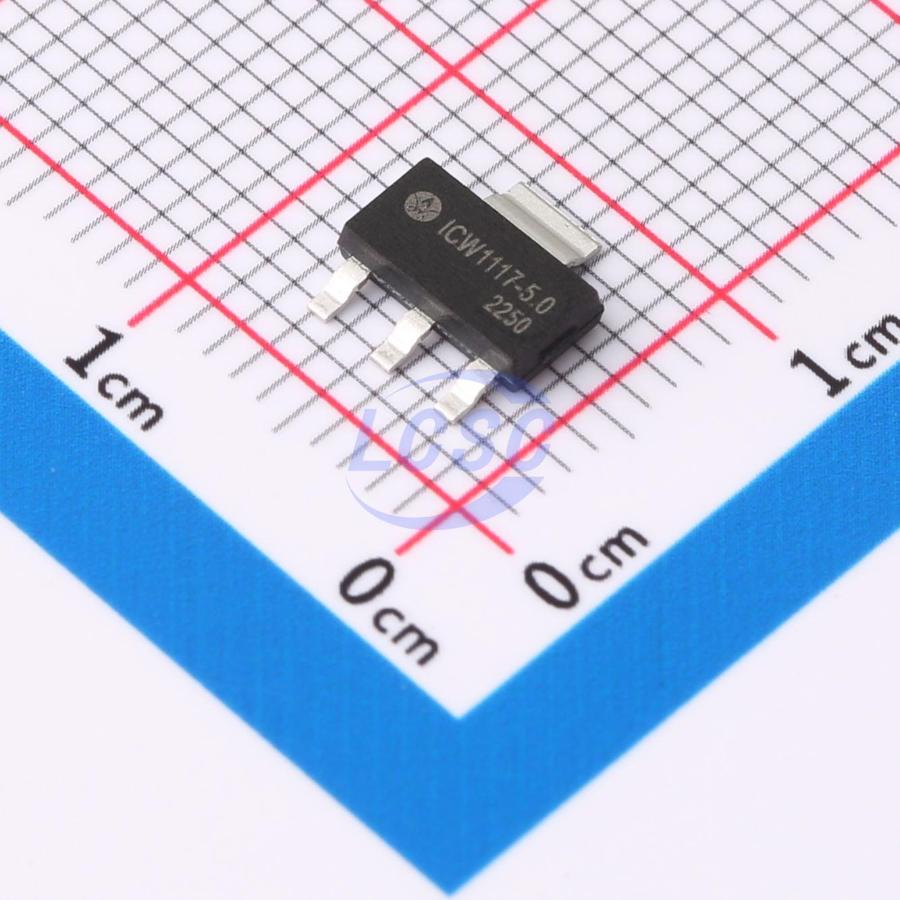

ICW1117A50S3G
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-3L
SOT-223-3LROHS CompliantActive
1A adjustable/fixed low-dropout linear regulator
- Manufacturer
- ICW
- Manufacturer part #
- ICW1117A50S3G
- Store part #
- C7544924
- Package / case
- SOT-223-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C7544924
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.86 | ₹104.30 |
| 50+ | ₹16.39 | ₹819.50 |
| 150+ | ₹14.46 | ₹2,169.00 |
| 500+ | ₹12.07 | ₹6,035.00 |
| 2,500+ | ₹11.01 | ₹27,525.00 |
| 5,000+ | ₹10.36 | ₹51,800.00 |
5 × ₹20.86
₹104.30
excl. GST
₹123.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ICW1117A50S3G
₹104.30 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Enable control;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.146 g
Overview
The ICW1117 series is a low dropout linear regulator with a 1.3V dropout voltage at 1A load current. Compared to the 5mA standby current of competing devices, the ICW1117 features an ultra-low standby current of 2mA. In addition to fixed output versions of 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V, the ICW1117 also offers an adjustable version that provides output voltages ranging from 1.25V to 12V using only two external resistors. The ICW1117 features thermal shutdown protection to ensure stability of both the IC and the power supply system. Laser trimming technology is employed to guarantee output voltage accuracy within 2%. Other output voltage accuracies such as 1% are available upon request.
Applications
- Post-regulator for switching DC/DC converters
- High-efficiency linear regulator
- Battery charger
- PCI add-in card
- Motherboard clock supply
- LCD monitor set-top box
Key features
- Output current: 1A
- Input voltage range: 15V
- Line regulation: 0.03% (typical)
- Standby current: 2mA (typical)
- Load regulation: 0.2%/A (typical)
- Ambient temperature: -40°C~85°C
