ICWDatasheet (PDF)

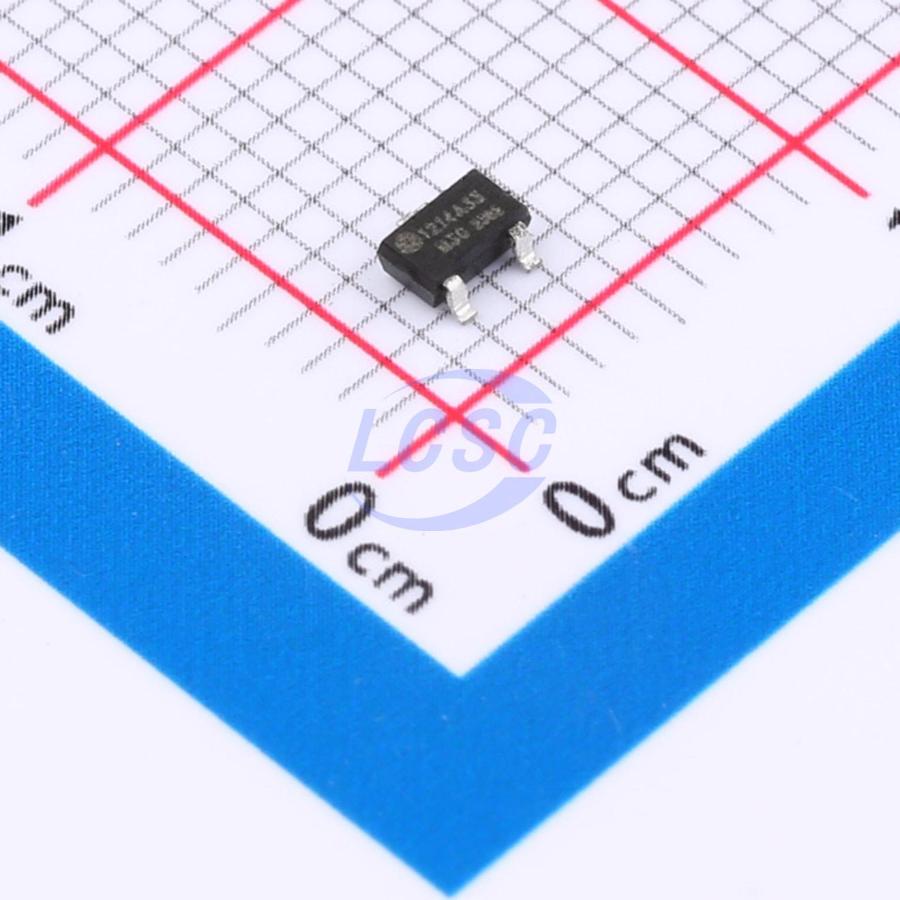

ICW1214A33M3GQ1
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT23-3
SOT23-3ROHS CompliantActive
Automotive-grade ultra-low power consumption, low dropout and high current linear voltage regulator
- Manufacturer
- ICW
- Manufacturer part #
- ICW1214A33M3GQ1
- Store part #
- C5448704
- Package / case
- SOT23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,803 in stock
#C5448704
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.01 | ₹52.01 |
| 10+ | ₹40.31 | ₹403.10 |
| 30+ | ₹35.11 | ₹1,053.30 |
| 100+ | ₹28.83 | ₹2,883.00 |
1 × ₹52.01
₹52.01
excl. GST
₹61.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ICW1214A33M3GQ1
₹52.01 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 700nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 18V
- Features
- Over Current Protection;Short Circuit Protection;Output discharge;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
The ICW1214-Q1 series is an ultra-low quiescent current, low-dropout linear regulator fabricated using CMOS process technology. The regulator draws approximately 0.7µA of quiescent current, with a typical shutdown current of 0.01µA after enable is deasserted. It integrates enable control, current limiting, and foldback short-circuit protection, along with an automatic output capacitor discharge function via the enable control. The ICW1214-Q1 is a high-performance LDO regulator targeting automotive applications, with the entire product family certified to AEC-Q100 standards.
Applications
- Body Control Module (BCM)
- EV Battery Management System
- Audio Head Unit
- Smart Cockpit Power Management
- T-BOX
Key features
- Ultra-low power consumption: Active: 0.7uA (typical), Sleep: 0.01uA (typical)
- Input voltage range: 2.0~18V
- Output voltage range: 1.5~5.0V (in 0.1V steps)
- Output accuracy: ±2%
- Input-output voltage differential: 160mV @ Iout = 100mA (3.3V)
- Output current: 300mA
- Current protection: Foldback, short-circuit current 30mA
- Overcurrent protection enable control: High = ON / Low = OFF, must not be left floating
- Output capacitor auto-discharge function
- ICW1214C series: with enable; ICW1214A series: without enable
- Temperature grade 1: -45°C to +125°C
