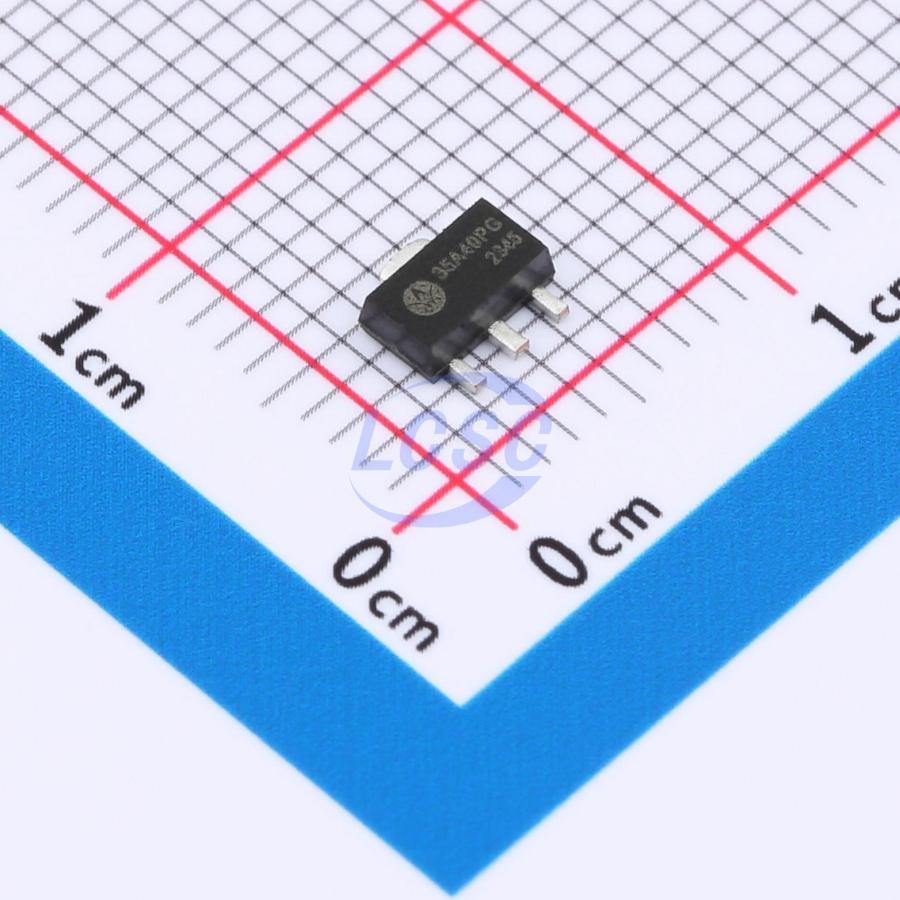

ICW1235A40PGQ1
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-89-3
SOT-89-3ROHS CompliantActive
Automotive-grade 40V voltage withstand, low-power consumption, high-precision LDO converter
- Manufacturer
- ICW
- Manufacturer part #
- ICW1235A40PGQ1
- Store part #
- C22395379
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,105 in stock
#C22395379
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.46 | ₹75.46 |
| 10+ | ₹59.19 | ₹591.90 |
| 30+ | ₹52.26 | ₹1,567.80 |
| 100+ | ₹43.59 | ₹4,359.00 |
| 500+ | ₹39.90 | ₹19,950.00 |
| 1,000+ | ₹37.52 | ₹37,520.00 |
1 × ₹75.46
₹75.46
excl. GST
₹89.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ICW1235A40PGQ1
₹75.46 for 1 + GST
Specifications
- Output Voltage
- 4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 40V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.095 g
Overview
The ICW1235-Q1 is a high-voltage (up to 40V), ultra-low quiescent current LDO regulator fabricated using CMOS process technology. It delivers up to 200mA of output current while consuming only 1.5μA of quiescent current. The ICW1235-Q1 integrates a voltage reference circuit, error amplifier, short-circuit foldback current limiting circuit, phase compensation circuit, and pass transistor. The ICW1235-Q1 is designed specifically for applications where ultra-low IQ is a critical parameter. The device maintains low quiescent current consumption even in dropout mode. In shutdown mode, the device draws less than 100nA of IQ even with an input voltage of 40V, helping to extend battery life in battery-powered products. The ICW1235-Q1 is a high-performance LDO regulator targeting automotive applications, with the entire product line certified to the AEC-Q100 standard.
Applications
- Body Control Module (BCM)
- EV Battery Management System
- Audio Head Unit
- Smart Cockpit Power Management
- Automotive Electric Sunroof Power Management
Key features
- Ultra-low quiescent current: 1.5μA
- Maximum input voltage: 40V
- Output voltage accuracy: ±2%
- Maximum output current: 200mA (VIN=5V, VOUT=3.3V)
- Dropout voltage: 4mV @ IOUT=1mA
- Temperature stability: ±50ppm/°C
- Enable function
- Protection circuits: OTP, OCP
- Output capacitor: low ESR, ceramic capacitor compatible
- Temperature grade 1: -40°C to +125°C
