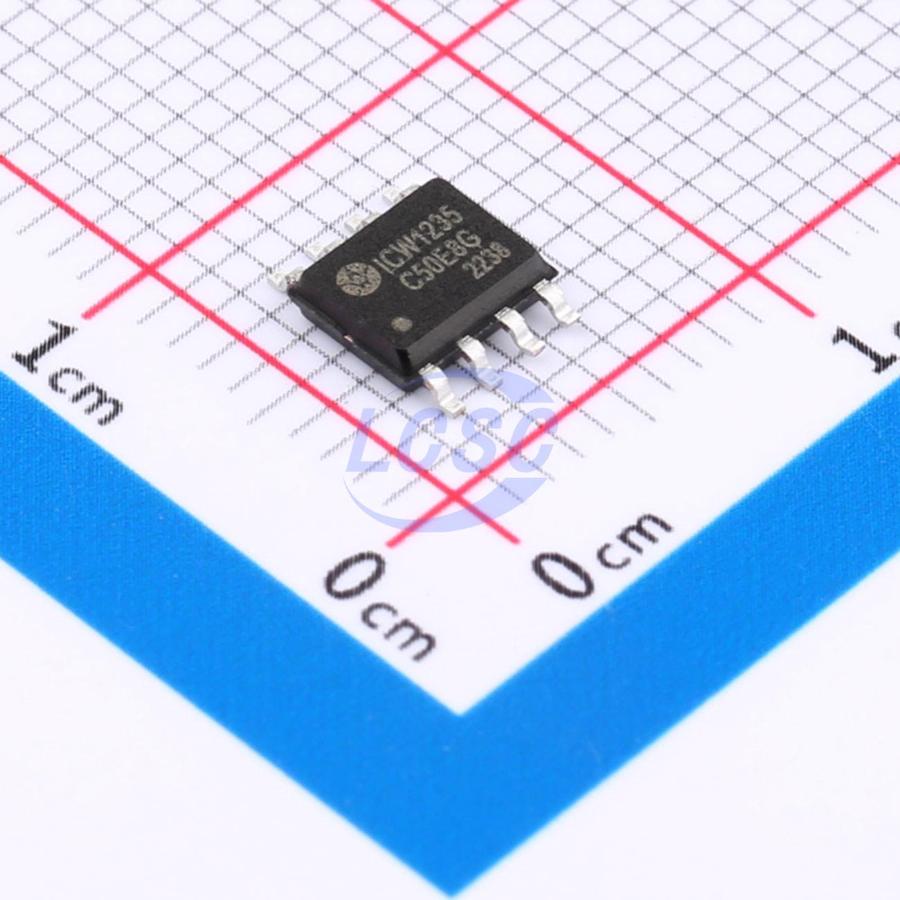

ICW1235C50E8GQ1

The ICW1235-Q1 is a high-voltage (up to 40V) ultra-low quiescent current LDO regulator fabricated in CMOS technology, capable of delivering up to 200mA of output current while consuming only 1.5μA of quiescent current. The ICW1235-Q1 integrates a bandgap reference, an error amplifier, a current foldback circuit, a phase compensation network, and a pass transistor. The device maintains low quiescent current consumption even in dropout mode, further extending battery life. In shutdown or disabled mode, the device draws less than 100nA of IQ even with an input voltage of 40V, helping to extend battery shelf life. The ICW1235-Q1 is a high-performance LDO regulator designed for automotive applications, with the entire product family certified to the AEC-Q100 standard.

Applications

• Body Control Module (BCM)
• EV Battery Management System
• Audio Head Unit
• Smart Cockpit Power Management
• Automotive Power Sunroof Power Management

Key features

• Ultra-low quiescent current: 1.5uA
• Maximum input voltage: 40V
• Output voltage accuracy: ±2%
• Maximum output current: 200mA (VIN = 5V, VOUT = 3.3V)
• Dropout voltage: 4mV @ IOUT = 1mA
• Temperature stability: ±50ppm/°C
• ON/OFF Logic = Enable High
• Protection circuits: thermal protection, current limiting, foldback function
• Output capacitor: low ESR, ceramic capacitor compatible
• Temperature grade 1: -45°C to +125°C
