ICWDatasheet (PDF)

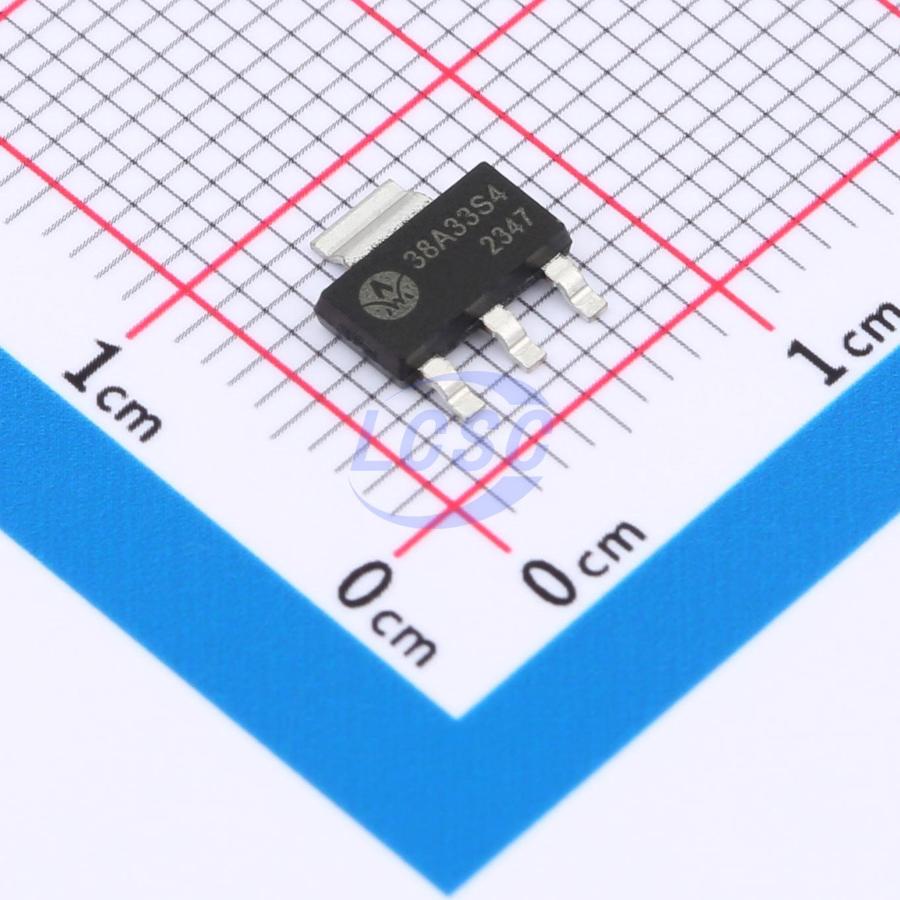

ICW1238A33S4GQ1
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-223-3
SOT-223-3ROHS CompliantActive
High-voltage, low-power, low-dropout regulator
- Manufacturer
- ICW
- Manufacturer part #
- ICW1238A33S4GQ1
- Store part #
- C22395386
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,933 in stock
#C22395386
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.79 | ₹72.79 |
| 10+ | ₹58.01 | ₹580.10 |
| 30+ | ₹50.63 | ₹1,518.90 |
| 100+ | ₹43.46 | ₹4,346.00 |
| 500+ | ₹39.11 | ₹19,555.00 |
| 1,000+ | ₹36.94 | ₹36,940.00 |
1 × ₹72.79
₹72.79
excl. GST
₹85.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ICW1238A33S4GQ1
₹72.79 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 1.6uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 40V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.155 g
Overview
The ICW1238-Q1 series is a high-voltage (up to 40V) low-power LDO regulator fabricated in CMOS process. It can deliver up to 1A of output current with a quiescent current of only 1.6uA. It consists of a bandgap reference generator, error amplifier, current foldback circuit, phase compensation circuit, and transistor driver circuit. The ICW1238-Q1 is a high-performance LDO regulator targeting automotive applications, with the entire product family certified to AEC-Q100 Grade 1 standards.
Applications
- Body Control Module (BCM)
- EV Battery Management System
- Audio Head Unit
- Smart Cockpit Power Management
- Automotive Power Sunroof Power Management
Key features
- Ultra-low quiescent current: 1.6uA
- Maximum input voltage: 40V
- Output voltage accuracy: ±2%
- Maximum output current: 500mA
- Dropout voltage: 10mV@Iour = 10mA
- Temperature stability: ±45ppm/°C
- ON/OFF Logic = Enable High
- Protection circuits: over-temperature protection, current limiting, foldback function
- Output capacitor: low ESR, ceramic capacitor compatible
- Temperature grade 1: -40°C to +125°C
