ICWDatasheet (PDF)

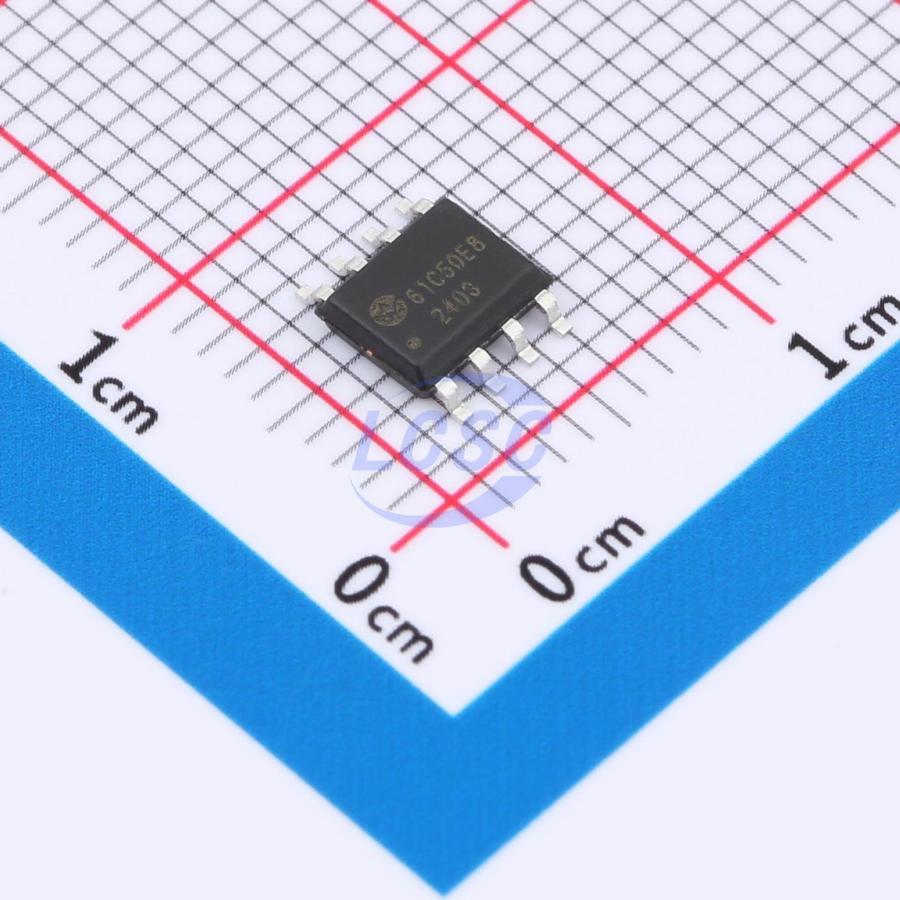

ICW1261C50E8GQ1
5V Positive Fixed ESOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
ESOP-8ROHS CompliantActive
High Voltage Low Power Consumption LDO CMos Voltage Regulator
- Manufacturer
- ICW
- Manufacturer part #
- ICW1261C50E8GQ1
- Store part #
- C22395380
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,941 in stock
#C22395380
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.24 | ₹67.24 |
| 10+ | ₹54.09 | ₹540.90 |
| 30+ | ₹47.60 | ₹1,428.00 |
| 100+ | ₹41.11 | ₹4,111.00 |
| 500+ | ₹37.14 | ₹18,570.00 |
| 1,000+ | ₹35.16 | ₹35,160.00 |
1 × ₹67.24
₹67.24
excl. GST
₹79.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
ICW1261C50E8GQ1
₹67.24 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 2.3uA
- Output Configuration
- Positive
- Operating Voltage
- 60V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection;Reverse-polarity current protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.105 g
Overview
ICW1261-Q1 is a high voltage (up to 60V) ultra-low quiescent current low dropout voltage regulator (LDO) manufactured in CMOS processes. It can deliver up to 150mA of current while consuming only 2.3uA of quiescent current. It consists of a reference voltage generator, an error amplifier, a current foldback circuit, and a phase compensation circuit plus a driver transistor. The ICW1261-Q1 is designed specifically for applications where very-low IQ is a critical parameter. This device maintains low quiescent current consumption even in dropout mode to further increase the battery life. When in shutdown or disabled mode, the device consumes less than 100-nA IQ even with input voltage of 60V that helps increase the shelf life of the battery.
Applications
- Automotive Head Units
- Headlights
- Body Control Modules
- Inverter and Motor Controls
Key features
- AEC-Q100 Qualified with the Grade 1
- Ultra-low Quiescent Current: 2.3uA
- Maximum Input Voltage: 60V
- Output Voltage Highly Accurate: ±2%
- Maximum Output Current: 150mA
- Dropout Voltage: 8mV@IOUT=1mA
- Temperature Stability: ±40ppm/°C
- ON/OFF Logic = Enable High
- Protections Circuits: Current Limiter, Foldback, Thermal shutdown
- Output Capacitor: Low ESR Ceramic Capacitor Compatible
