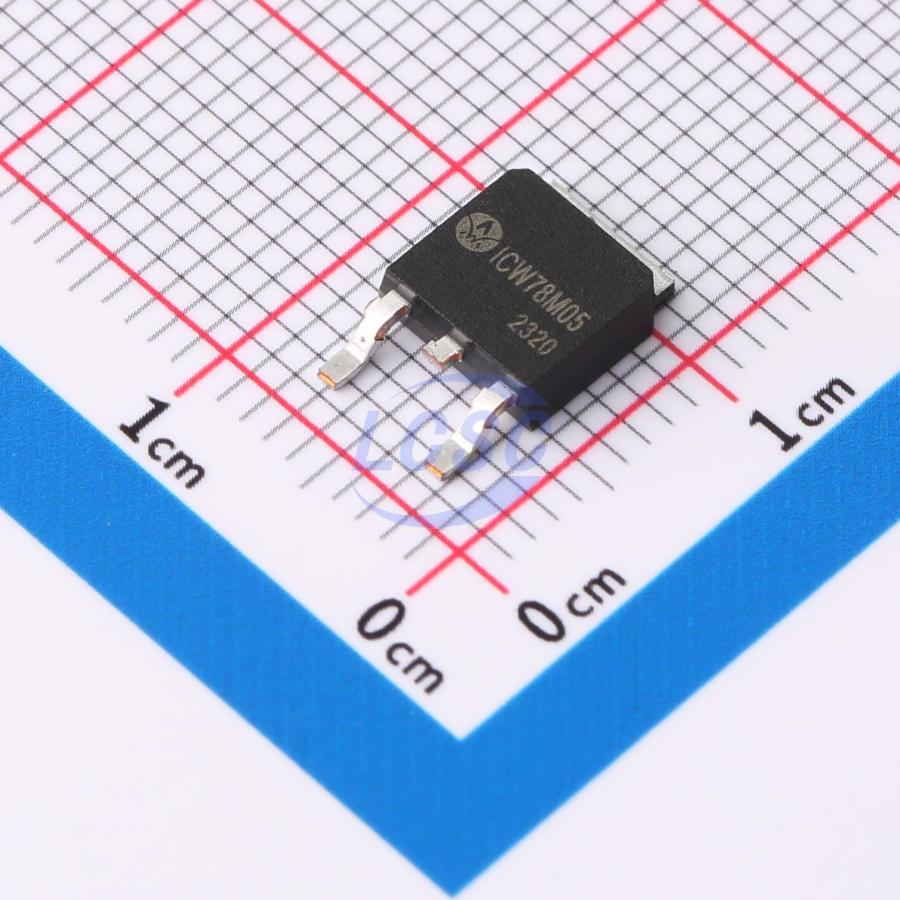

ICW7805T2G
Linear Voltage Regulator IC Positive Fixed 1 Output 1000mA TO-252
TO-252ROHS CompliantActive
ICW78XX High-precision LDO Controller Integrated Circuit: Fixed-output Three-terminal Positive Power Supply Voltage Regulation Circuit
- Manufacturer
- ICW
- Manufacturer part #
- ICW7805T2G
- Store part #
- C7544936
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C7544936
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.24 | ₹131.20 |
| 50+ | ₹20.60 | ₹1,030.00 |
| 150+ | ₹18.18 | ₹2,727.00 |
| 500+ | ₹15.17 | ₹7,585.00 |
| 2,500+ | ₹13.83 | ₹34,575.00 |
| 5,000+ | ₹13.02 | ₹65,100.00 |
5 × ₹26.24
₹131.20
excl. GST
₹154.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ICW7805T2G
₹131.20 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 25V
- Features
- Thermal shutdown;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.373 g
Overview
The ICW7805/08/09/12/15 series are fixed-voltage three-terminal positive voltage regulator ICs, primarily used as fixed output voltage sources in various electronic equipment. The devices incorporate overtemperature, overcurrent, and safe operating area protection. With an appropriate external heatsink and adequate input voltage, the output current can exceed 1A. These devices can serve not only as fixed output voltage sources, but also — when configured with appropriate external components — deliver other required output voltages and currents.
Applications
- 5V regulated output
- Voltage expansion application circuit
Key features
- Output current: >1A
- Minimal external components, highly versatile
- Built-in over-temperature and over-current protection
- Internal safe operating area compensation for output transistor
- Fixed output voltages: 5V / 8V / 9V / 12V / 15V
