HXY MOSFETDatasheet (PDF)

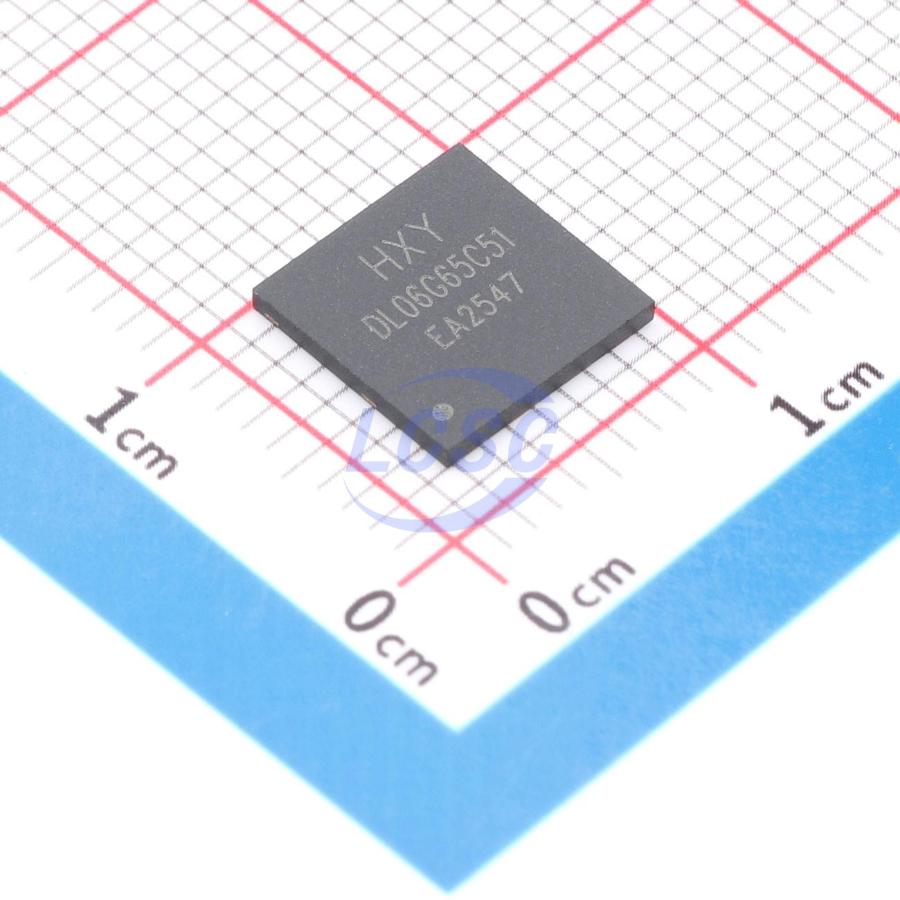

IDL06G65C5XUMA1-HXY
1 Independent 650V 1.32V@6A 6A DFN-5B(8x8) Single Diodes
DFN-5B(8x8)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IDL06G65C5XUMA1-HXY
- Store part #
- C53468031
- Package / case
- DFN-5B(8x8)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41 in stock
#C53468031
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹183.01 | ₹183.01 |
| 10+ | ₹152.16 | ₹1,521.60 |
| 30+ | ₹135.22 | ₹4,056.60 |
| 100+ | ₹115.93 | ₹11,593.00 |
| 500+ | ₹107.59 | ₹53,795.00 |
| 1,000+ | ₹103.72 | ₹1,03,720.00 |
1 × ₹183.01
₹183.01
excl. GST
₹215.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IDL06G65C5XUMA1-HXY
₹183.01 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.32V@6A
- Reverse Leakage Current (Ir)
- 50uA@650V
- Current - Rectified
- 6A
- Non-Repetitive Peak Forward Surge Current
- 60A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
Applications
- Switch-mode power supplies
- Power factor correction
- Motor drives
Key features
- 650V Schottky rectifier
- Zero reverse recovery current
- Zero forward recovery voltage
- High-frequency operation
- Temperature-independent switching characteristics
- Extremely fast switching
- Positive temperature coefficient of forward voltage VF
