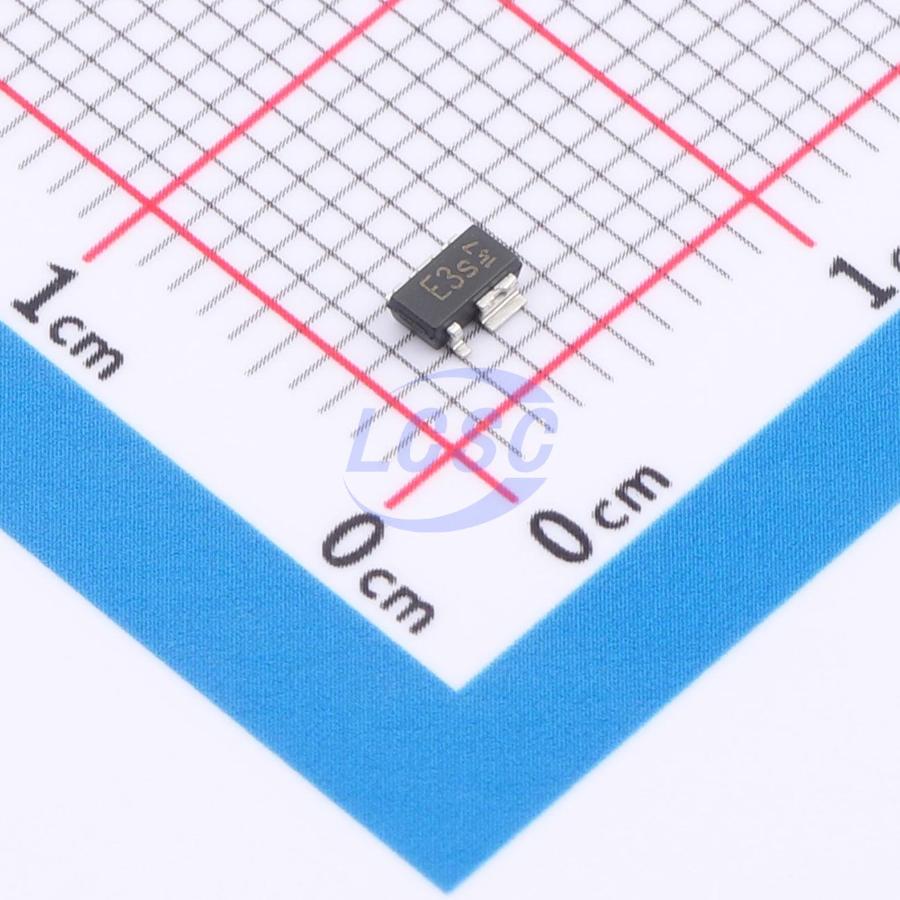

IFX20002MB V33

The IFX20002 is a monolithic integrated low drop voltage regulator in a very small SMD package PG - SCT595 - 5. It is designed to supply e.g. micro controller, sensors, etc or may serve as standby supply under severe conditions. Therefore the device is equipped with additional protection functions against overload, short circuit and reverse polarity. At over temperature the regulator is automatically turned off by the integrated thermal protection circuit. Input voltages up to 40 V are regulated to VQ,nom = 3.3 V (V33 version) or 5.0 V (V50 version). The output is able to drive a load of 30 mA while it regulates the output voltage within a 4% accuracy. To save energy the device can be switched in stand - by mode via an inhibit input which causes the current consumption to drop below 5 μA.

Applications

• Manufacturing Automation Appliances
• Network Routers

Key features

• Two versions: 3.3 V, 5.0 V
• Low drop voltage ≤300 mV over the full temperature range
• Output current: 30 mA
• Inhibit input
• Low quiescent current
• Stable with ceramic output capacitor
• Input voltage up to 45 V
• Wide temperature range: Tj = -40 °C to +125 °C
• Output protected against short circuit
• Over temperature protection
• Reverse polarity protection
• Very small and thermally enhanced SMD - Package PG - SCT595 - 5
• Green Product (RoHS compliant)
