Infineon

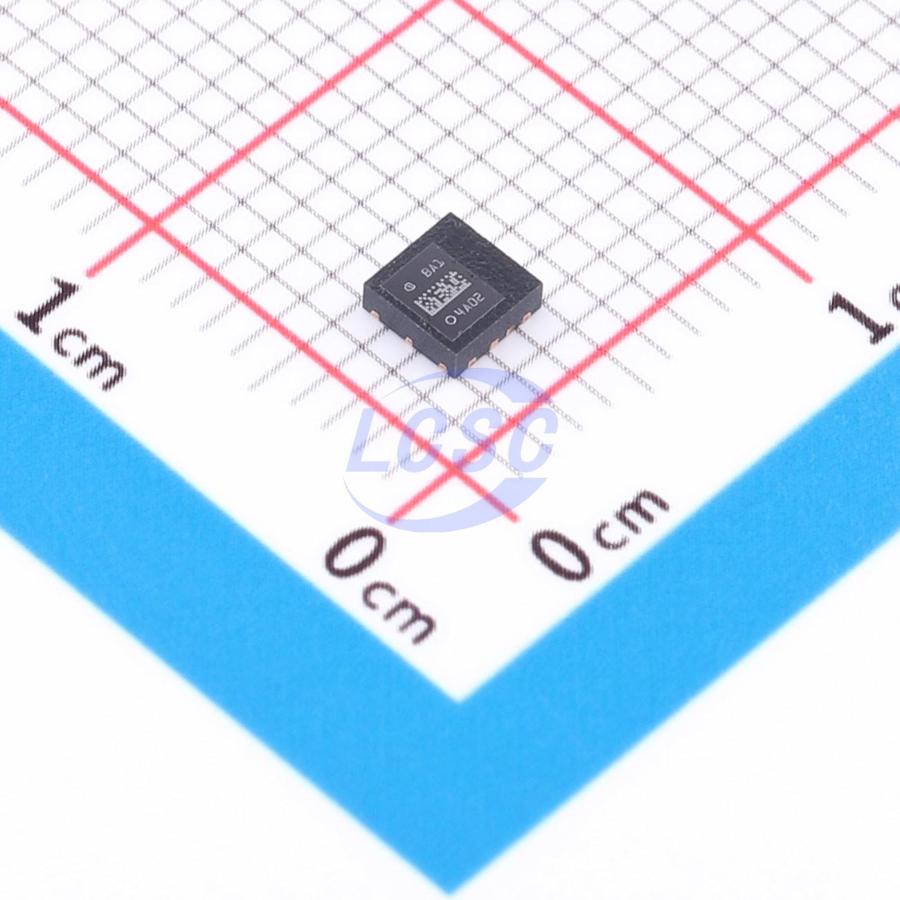

IGB110S10S1XTMA1

100V 23A 15W 9.4mΩ 1 N-channel N-Channel PG-TSON-4-2 Single FETs, MOSFETs RoHS

PG-TSON-4-2ROHS CompliantActive

Manufacturer: Infineon
Manufacturer part #: IGB110S10S1XTMA1
Store part #: C43313312
Package / case: PG-TSON-4-2
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

42 in stock

#C43313312

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹254.33	₹254.33
10+	₹215.31	₹2,153.10
30+	₹190.80	₹5,724.00
100+	₹165.65	₹16,565.00
500+	₹154.38	₹77,190.00
1,000+	₹149.39	₹1,49,390.00

Quantity (min 1)

1 × ₹254.33

₹254.33

excl. GST

₹300.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

IGB110S10S1XTMA1

₹254.33 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃
Drain to Source Voltage: 100V
Current - Continuous Drain(Id): 23A
Output Capacitance(Coss): 140pF
Ciss-Input Capacitance: 300pF
Pd - Power Dissipation: 15W
Technology: E-mode
Reverse Transfer Capacitance (Crss): 2.3pF
RDS(on): 9.4mΩ
Number: 1 N-channel
Gate Charge(Qg): 3.4nC
Type: N-Channel
Gate Threshold Voltage (Vgs(th)): 2V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.204 g

Overview

CoolGaN transistors feature 100V G3T M technology with ultra-fast switching speed and high efficiency, housed in a space-saving and highly robust package. Key characteristics include zero reverse recovery charge, ultra-low gate charge and output charge, exposed die top for superior top-side cooling, MSL1 moisture sensitivity level, and industrial-grade 3×3 package. Products are fully qualified for industrial applications per JEDEC standards.
