InfineonDatasheet (PDF)

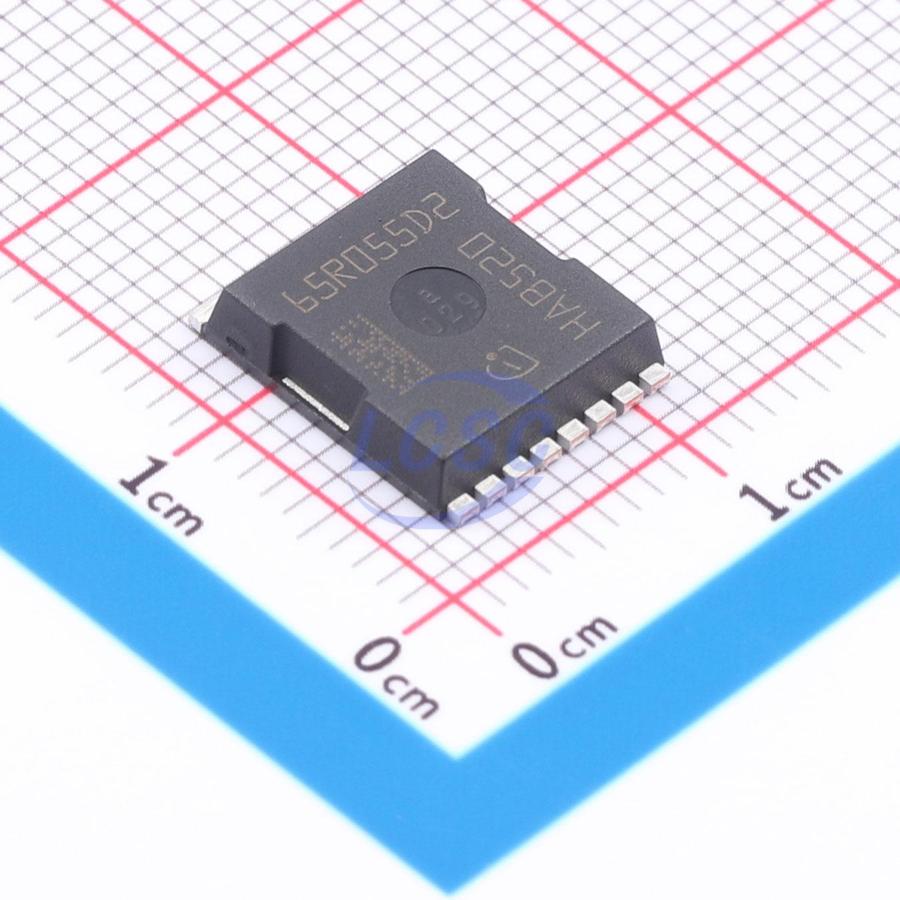

IGT65R055D2XTMA1
650V 31A 106W 55mΩ 1 N-channel N-Channel PG-HSOF-8 Single FETs, MOSFETs RoHS
PG-HSOF-8ROHS CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IGT65R055D2XTMA1
- Store part #
- C42669721
- Package / case
- PG-HSOF-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C42669721
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹951.92 | ₹951.92 |
| 10+ | ₹818.13 | ₹8,181.30 |
| 30+ | ₹736.38 | ₹22,091.40 |
| 100+ | ₹667.86 | ₹66,786.00 |
1 × ₹951.92
₹951.92
excl. GST
₹1,123.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IGT65R055D2XTMA1
₹951.92 for 1 + GST
Specifications
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 57pF
- Current - Continuous Drain(Id)
- 31A
- Ciss-Input Capacitance
- 340pF
- Pd - Power Dissipation
- 106W
- Technology
- E-mode
- Reverse Transfer Capacitance (Crss)
- 0.77pF
- RDS(on)
- 55mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.7nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.76 g
Overview
CoolGaN™ is a high-efficiency GaN transistor designed for 650 V power conversion. It enables higher power density, supports reduced system BOM cost, and facilitates miniaturized form factors. Manufactured using 200 mm wafer technology on a fully automated production line, it features tight production tolerances and the highest product quality. This makes it suitable for a wide range of applications, from consumer electronics to industrial use.
Applications
- Industrial switching power supplies
- Telecom switching power supplies
- Data center switching power supplies
- Chargers
- Adapters
Key features
- Enhancement-mode transistor
- Ultra-fast switching speed
- Zero reverse recovery charge
- Reverse conduction capability
- Low gate charge and output charge
- Superior commutation robustness
- 2 kV HBM ESD compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IGT65R045D2ATMA1#C42669719Infineon · PG-HSOF-8 | Infineon | PG-HSOF-8 | 37 | ₹1,126.24 · 37 in stock | View | |
 | IGT65R035D2ATMA1#C42669718Infineon · PG-HSOF-8 | Infineon | PG-HSOF-8 | 11 | ₹1,550.13 · 11 in stock | View |
