IKSEMICONDatasheet (PDF)

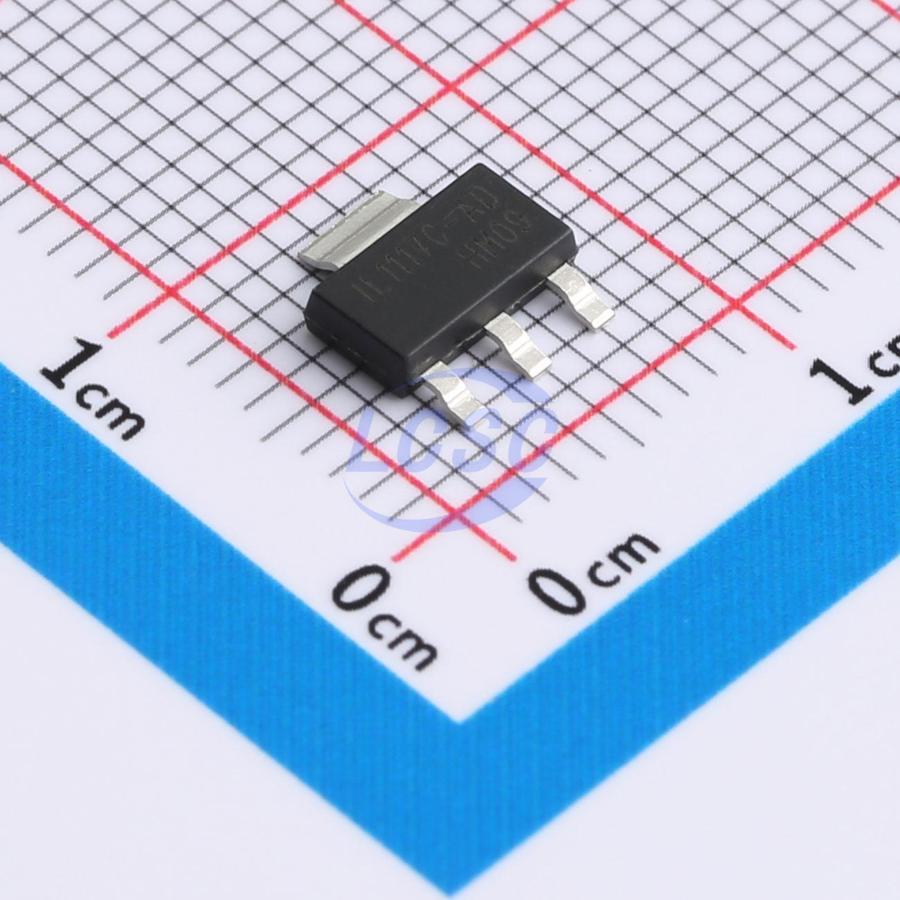

IL1117C-AD(1.25)
1.225V~1.275V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
Low Dropout Positive Voltage Regulator
- Manufacturer
- IKSEMICON
- Manufacturer part #
- IL1117C-AD(1.25)
- Store part #
- C5157593
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,725 in stock
#C5157593
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.89 | ₹149.45 |
| 50+ | ₹26.54 | ₹1,327.00 |
| 150+ | ₹25.11 | ₹3,766.50 |
| 500+ | ₹23.32 | ₹11,660.00 |
| 2,500+ | ₹21.57 | ₹53,925.00 |
| 4,000+ | ₹21.09 | ₹84,360.00 |
5 × ₹29.89
₹149.45
excl. GST
₹176.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IL1117C-AD(1.25)
₹149.45 for 5 + GST
Specifications
- Output Voltage
- 1.225V~1.275V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
The IL1117C is a series of low dropout voltage regulators which can provide up to 1A of output current. The IL1117C is available in eight fixed voltage, 1.5, 1.8, 2.5, 2.85, 3.0, 3.3, 3.5 and 5.0V. Additionally it is also available in adjustable version. On chip precision trimming adjusts the reference/output voltage to within ± 2%. Current limit is also trimmed to ensure specified output current and controlled short-circuit current. The IL1117C series is available in SOT-223, TO-252, SOT-89 packages. A minimum of 10uF tantalum capacitor is required at the output to improve the transient response and Stability.
Applications
- Post Regulator for switching DC/DC Converter
- High Efficiency Linear Regulator
- Battery Chargers
- PC Add on Card
- Motherboard clock supplies
- LCD Monitor
- Set-top Box
Key features
- Dropout Voltage – 1.2V (Typical)
- Reference/Output Voltage Trimmed to ± 2%
- Maximum Input Voltage – 15V Adjustable Output Voltage or Fixed 1.2V, 1.25V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 5V
- Line Regulation typically at 0.2% max
- Load Regulation typically at 0.4% max
- Current Limiting and Thermal Protection
- Standard 3-Pin Power Packages Operating Junction Temperature Range -40 to +125°C
- MSL (Moisture Sensitive Level) 3 RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117-ADJ#C5250989TWGMC · SOT-223-3L | TWGMC | SOT-223-3L | 2,200 | ₹5.05 · 2,200 in stock | View |
