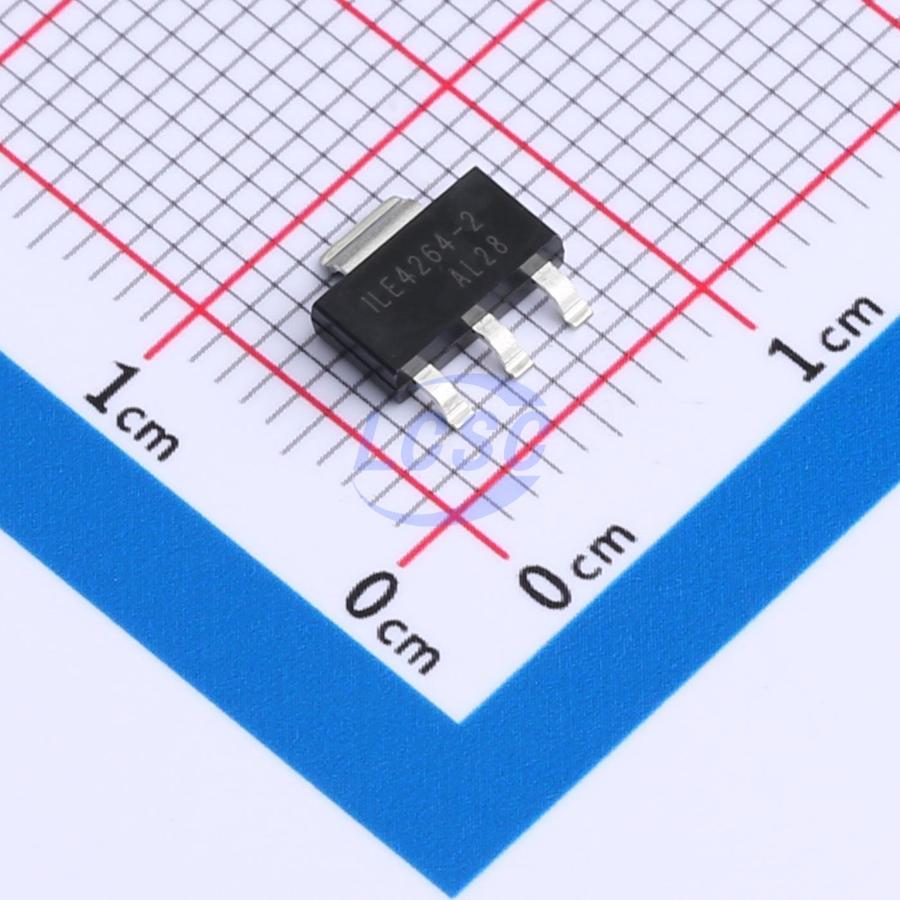

ILE4264-2G
5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
5-V/100mA Low Power Low-Drop Fixed-Voltage Regulator
- Manufacturer
- IKSEMICON
- Manufacturer part #
- ILE4264-2G
- Store part #
- C5157601
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,685 in stock
#C5157601
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹170.47 | ₹170.47 |
| 10+ | ₹157.29 | ₹1,572.90 |
| 30+ | ₹149.30 | ₹4,479.00 |
| 100+ | ₹134.73 | ₹13,473.00 |
| 500+ | ₹130.95 | ₹65,475.00 |
| 1,000+ | ₹129.15 | ₹1,29,150.00 |
1 × ₹170.47
₹170.47
excl. GST
₹201.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
ILE4264-2G
₹170.47 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 28V
- Features
- Reverse polarity voltage protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
The ILE 4264-2G is a Monolithic Integrated Low Power Low-Drop Fixed Voltage Regulator 5-V/100mA with low current consumption. The ILE 4264-2G is specially designed to create power source with 5V output voltage, loads up to 100 mA and drop voltage less than 0.5V. The regulator is designed to supply electronic device in automotive applications and some another applications. The ILE 4264-2G is equipped with additional protection against overvoltage of both polarities, load current limitation, short-circuit and over temperature shutdown of output voltage.
Applications
- automotive applications
Key features
- Output voltage tolerance 5V ±3% (±2% up to 50 mA)
- Low-drop voltage
- Current capability up to 150 mA
- Very low current consumption
- Over temperature protection
- Reverse polarity proof
- Suitable for use in automotive electronics
- Short-circuit proof
- AEC-Q100 Qualified
- ESD Protection: HBM ±8.000V / MM ±400V / CDM ±2.000V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV4266-2CST50T3G#C511968onsemi · SOT-223 | onsemi | SOT-223 | 11 | ₹118.16 · 11 in stock | View |
 | TLE42642GHTSA2#C3743740Infineon · SOT-223-4 | Infineon | SOT-223-4 | 542 | ₹251.58 · 542 in stock | View |
 | SL4264-2#C2690316Slkor · SOT-223-3 | Slkor | SOT-223-3 | 237 | ₹190.99 · 237 in stock | View |
 | NCV4266ST50T3G#C895033onsemi · SOT-223 | onsemi | SOT-223 | 208 | ₹199.27 · 208 in stock | View |
 | L5150BNTR#C125140ST · SOT-223-4 | ST | SOT-223-4 | 1,455 | ₹106.38 · 1,455 in stock | View |
