InfineonDatasheet (PDF)

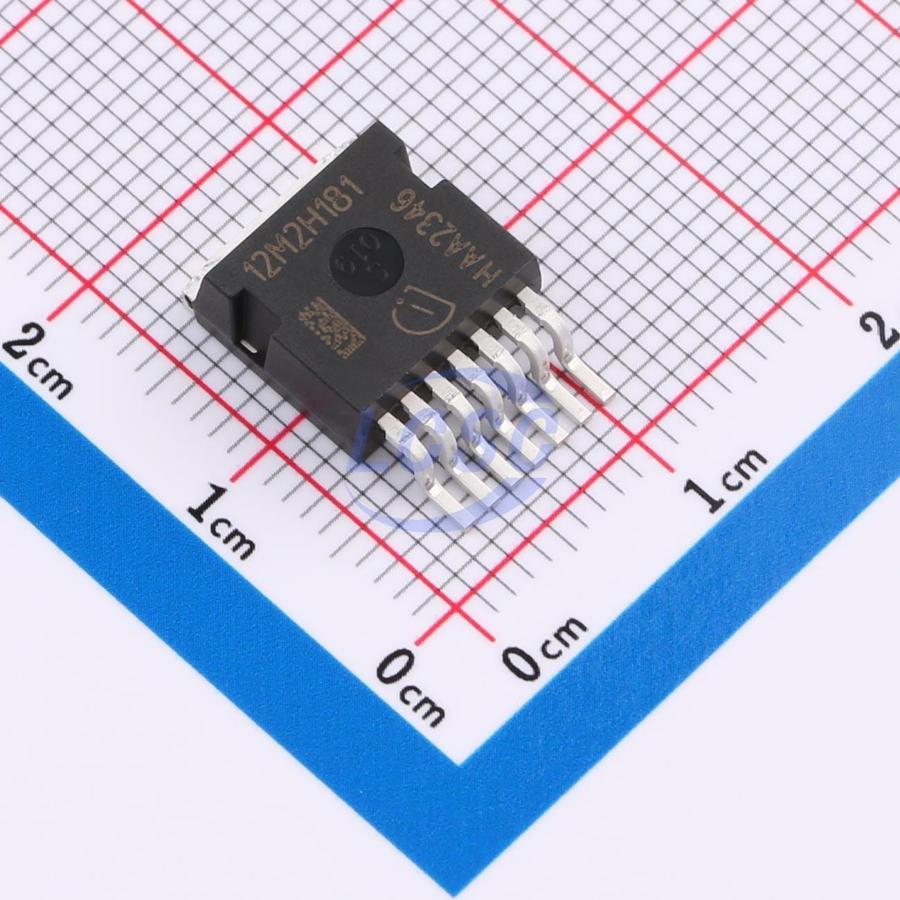

IMBG120R181M2HXTMA1
1.2kV 14.9A 94W TO-263-7
TO-263-7ROHS3 CompliantActive
SICFET 1.2kV 14.9A TO-263-7
- Manufacturer
- Infineon
- Manufacturer part #
- IMBG120R181M2HXTMA1
- Store part #
- C23040258
- Package / case
- TO-263-7
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3 in stock
#C23040258
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹647.85 | ₹647.85 |
| 10+ | ₹551.15 | ₹5,511.50 |
| 30+ | ₹493.69 | ₹14,810.70 |
| 100+ | ₹435.58 | ₹43,558.00 |
| 500+ | ₹408.91 | ₹2,04,455.00 |
| 1,000+ | ₹396.78 | ₹3,96,780.00 |
1 × ₹647.85
₹647.85
excl. GST
₹764.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IMBG120R181M2HXTMA1
₹647.85 for 1 + GST
Specifications
- Drain to Source Voltage
- 1.2kV
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 12pF
- Current - Continuous Drain(Id)
- 14.9A
- Ciss-Input Capacitance
- 350pF
- Pd - Power Dissipation
- 94W
- Reverse Transfer Capacitance (Crss)
- 1pF
- RDS(on)
- 181.4mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.7nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 4.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.765 g
Overview
Applications
- EV Charging
- Online UPS/Industrial UPS
- String inverter
- General purpose drives (GPD)
Key features
- VDSS = 1200 V at TVj = 25℃
- IDDC = 10.5 A at TC = 100℃
- RDSS(on) = 181.4 mΩ at VGS = 18 V, TVj = 25℃
- Very low switching losses
- Overload operation up to TVj = 200℃
- Short circuit withstand time 2 μs
- Benchmark gate threshold voltage, VDDS(th) = 4.2 V
- Robust against parasitic turn on, 0 V turn-off gate voltage can be applied
- Robust body diode for hard commutation
- XT interconnection technology for best-in-class thermal performance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCES120P160D7#C54426066NCE · TO263-7L | NCE | TO263-7L | 412 | ₹110.80 · 412 in stock | View |
 | NTBG160N120SC1#C898804onsemi · TO-263-7 | onsemi | TO-263-7 | 6 | ₹851.46 · 6 in stock | View |
 | IMBG120R053M2HXTMA1#C28441915Infineon · TO-263-7 | Infineon | TO-263-7 | 36 | ₹1,469.14 · 36 in stock | View |
 | IMBG120R078M2HXTMA1#C22417582Infineon · TO-263-7 | Infineon | TO-263-7 | 24 | ₹1,137.90 · 24 in stock | View |
 | IMBG120R040M2HXTMA1#C22417919Infineon · TO-263-7 | Infineon | TO-263-7 | 52 | ₹1,519.93 · 52 in stock | View |
