InfineonDatasheet (PDF)

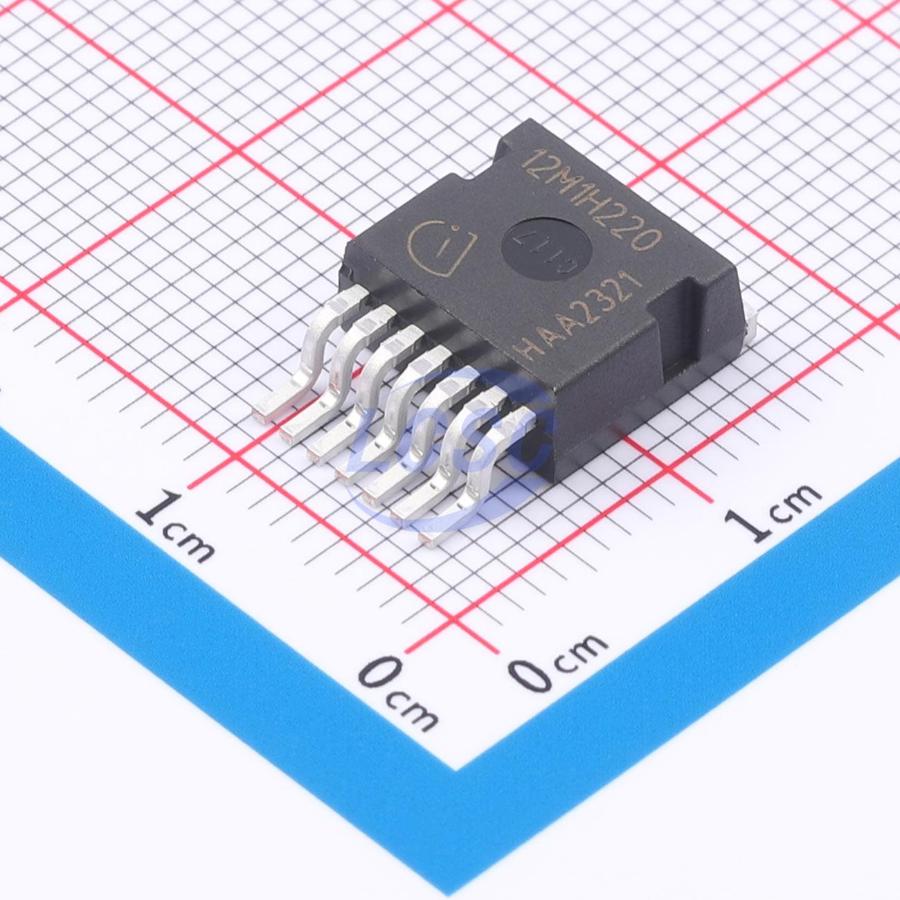

IMBG120R220M1HXTMA1
1.2kV 13A 83W 220mΩ 1 N-channel N-Channel TO-263-7 Single FETs, MOSFETs RoHS
TO-263-7ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IMBG120R220M1HXTMA1
- Store part #
- C5342192
- Package / case
- TO-263-7
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C5342192
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹714.91 | ₹714.91 |
| 10+ | ₹610.18 | ₹6,101.80 |
| 30+ | ₹547.81 | ₹16,434.30 |
| 100+ | ₹484.80 | ₹48,480.00 |
| 500+ | ₹455.68 | ₹2,27,840.00 |
| 1,000+ | ₹442.64 | ₹4,42,640.00 |
1 × ₹714.91
₹714.91
excl. GST
₹843.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IMBG120R220M1HXTMA1
₹714.91 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 1.2kV
- Output Capacitance(Coss)
- 14pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 312pF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 1.5pF
- RDS(on)
- 220mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.4nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 4.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.668 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IMBG120R181M2HXTMA1#C23040258Infineon · TO-263-7 | Infineon | TO-263-7 | 3 | ₹647.85 · 3 in stock | View |
 | NCES120P160D7#C54426066NCE · TO263-7L | NCE | TO263-7L | 412 | ₹110.80 · 412 in stock | View |
 | NTBG160N120SC1#C898804onsemi · TO-263-7 | onsemi | TO-263-7 | 6 | ₹851.46 · 6 in stock | View |
 | IV2Q12080D7Z#C22368197InventChip · TO-263-7 | InventChip | TO-263-7 | 5 | ₹1,383.67 · 5 in stock | View |
 | IMBG120R116M2HXTMA1#C28489444Infineon · TO-263-7 | Infineon | TO-263-7 | 1 | ₹782.42 · 1 in stock | View |
