TDSEMICDatasheet (PDF)

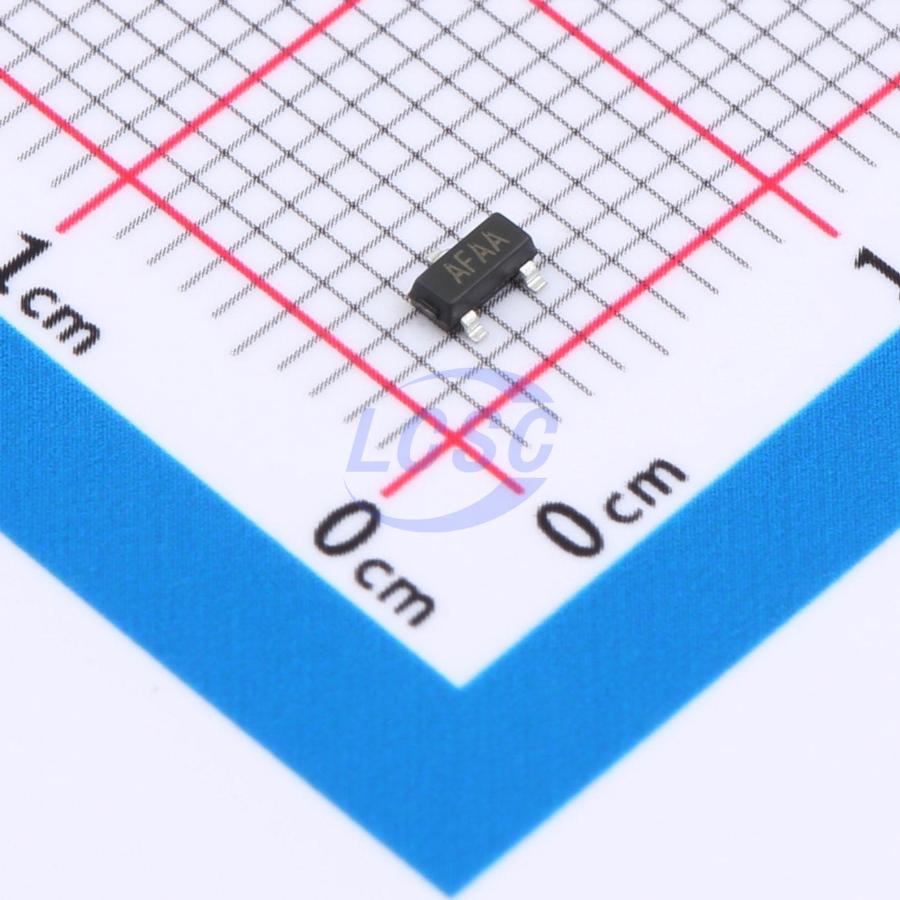

IMP809R-TD
Supervisor SOT-23-3
SOT-23-3ROHS CompliantActive
Low-Voltage Reset Detector
- Manufacturer
- TDSEMIC
- Manufacturer part #
- IMP809R-TD
- Store part #
- C42421904
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,070 in stock
#C42421904
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.08 | ₹80.80 |
| 100+ | ₹6.36 | ₹636.00 |
| 300+ | ₹5.50 | ₹1,650.00 |
| 1,000+ | ₹4.87 | ₹4,870.00 |
| 5,000+ | ₹4.35 | ₹21,750.00 |
| 10,000+ | ₹4.09 | ₹40,900.00 |
10 × ₹8.08
₹80.80
excl. GST
₹95.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IMP809R-TD
₹80.80 for 10 + GST
Specifications
- Operating Temperature
- -20℃~+70℃
- Reset Timeout
- 500ms
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
IMP809R-TD is a three-terminal low-voltage reset detector/supervisor implemented using digital system circuit design technology, providing reset monitoring signals for host processors. This reset detector/supervisor monitors fixed voltages from 1.0V to 5.0V, requires no external components, and is simple to use.
Applications
- Battery-powered devices
- Power failure detectors
- Computer and microprocessor systems
- Non-volatile RAM data protection
- Critical MP power supply monitoring
- Embedded systems
Key features
- Low power consumption: 2uA (typical)
- Wide operating voltage range: 1V ~ 6.0V
- VCC transient immunity
- No external components required
- Built-in reset delay time: 500ms (typical)
- High-accuracy reset voltage: ±2.5%
- Compact package: SOT23
