TDSEMICDatasheet (PDF)

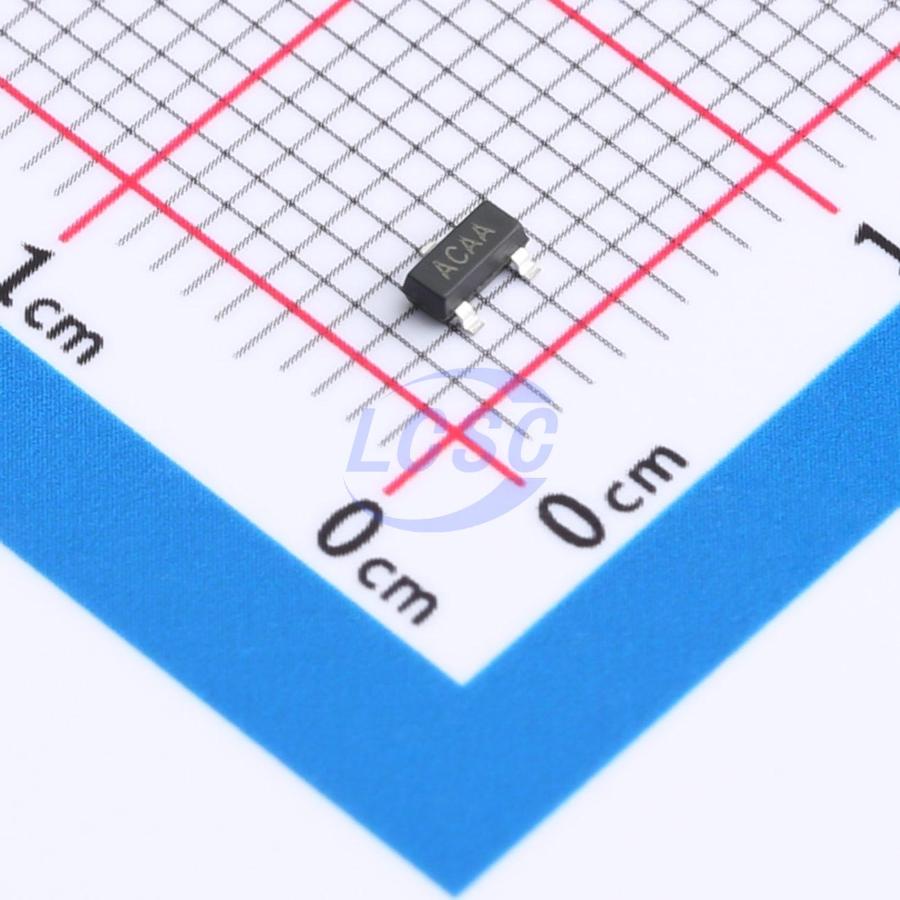

IMP809T-TD
Supervisor SOT-23-3
SOT-23-3ROHS CompliantActive
Low-Voltage Reset Detector
- Manufacturer
- TDSEMIC
- Manufacturer part #
- IMP809T-TD
- Store part #
- C42421906
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,270 in stock
#C42421906
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.95 | ₹79.50 |
| 100+ | ₹6.35 | ₹635.00 |
| 300+ | ₹5.56 | ₹1,668.00 |
| 1,000+ | ₹4.95 | ₹4,950.00 |
| 5,000+ | ₹4.47 | ₹22,350.00 |
| 10,000+ | ₹4.22 | ₹42,200.00 |
10 × ₹7.95
₹79.50
excl. GST
₹93.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IMP809T-TD
₹79.50 for 10 + GST
Specifications
- Operating Temperature
- -20℃~+70℃
- Reset Timeout
- 500ms
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
IMP809T-TD is a three-terminal low-voltage reset detector and supervisor implemented using digital system circuit design technology, providing reset supervisory signals for host processors. This reset supervisor monitors fixed voltages from 1.0V to 5.0V, is easy to use, and requires no external components.
Applications
- Battery-powered equipment
- Power failure detectors
- Computer and microprocessor systems
- Non-volatile RAM signal storage protectors
- Critical MP power supply monitoring
Key features
- Low power consumption: 2uA (typical)
- Wide operating voltage range: 1V～6.0V
- VCC transient noise immunity
- No external components required
- Built-in reset delay time: 500ms (typical)
- High-accuracy reset voltage: ±2.5%
- Compact package: SOT23
