TDSEMICDatasheet (PDF)

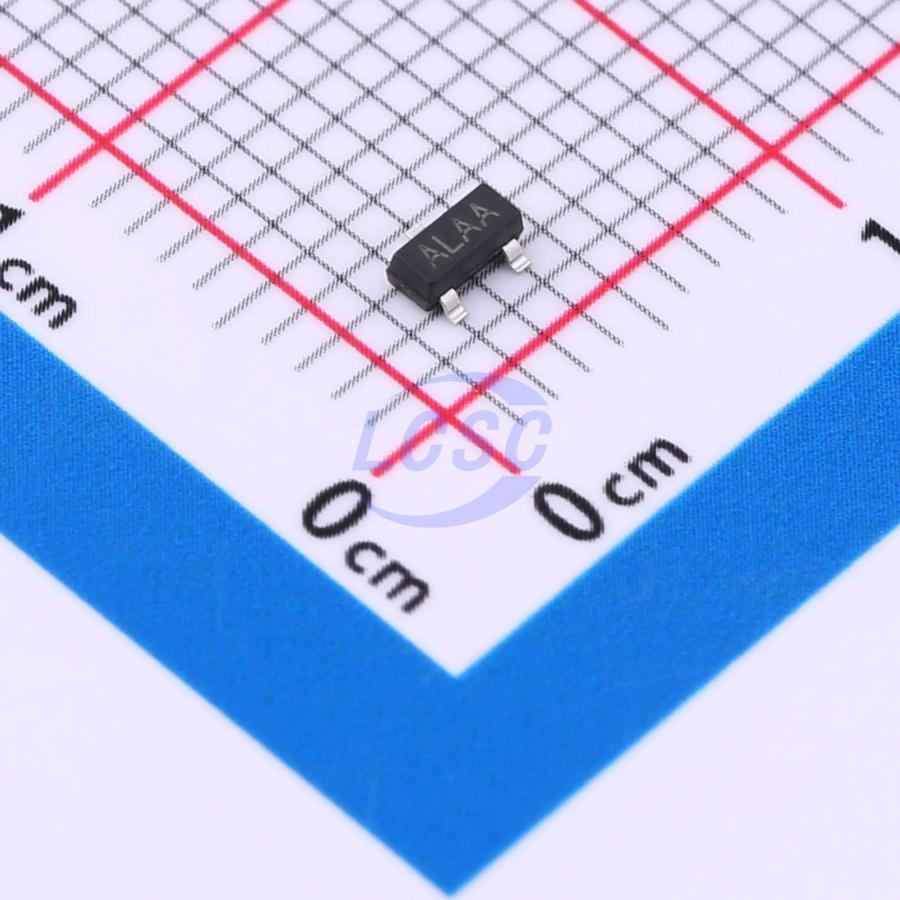

IMP810R-TD
Supervisor 1 Channel SOT-23-3
SOT-23-3ROHS CompliantActive
Low-Voltage Reset Detector
- Manufacturer
- TDSEMIC
- Manufacturer part #
- IMP810R-TD
- Store part #
- C42421907
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,120 in stock
#C42421907
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.44 | ₹64.40 |
| 100+ | ₹5.09 | ₹509.00 |
| 300+ | ₹4.42 | ₹1,326.00 |
| 1,000+ | ₹3.92 | ₹3,920.00 |
| 5,000+ | ₹3.52 | ₹17,600.00 |
| 10,000+ | ₹3.31 | ₹33,100.00 |
10 × ₹6.44
₹64.40
excl. GST
₹75.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IMP810R-TD
₹64.40 for 10 + GST
Specifications
- Reset Timeout
- 500ms
- Operating Temperature
- -20℃~+60℃
- Reset Active Level
- Active High
- standby current
- 2uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
Supply voltage. It provides reset signals to microcontrollers during power-up, power-down, and power-saving conditions. When the supply voltage drops below the preset detection voltage, the device asserts a reset signal until the supply voltage recovers above the detection voltage. When the input voltage falls below the detection voltage, VRESET output goes high — simple to use, no external components required.
Applications
- Battery-powered PAD and handheld devices
- Wireless communication systems
- Embedded systems
- Computers and microprocessors
Key features
- Low power consumption: 2uA (typical)
- Built-in reset delay time 500ms (typical)
- Wide operating voltage range: 1V ~ 6.0V
- High accuracy reset voltage: ±2.5%
- VCC transient noise immunity
- VRESET output low when input voltage exceeds detection voltage
- No external components required
- Compact package: SOT23
