IMZA120R078M2HXKSA1

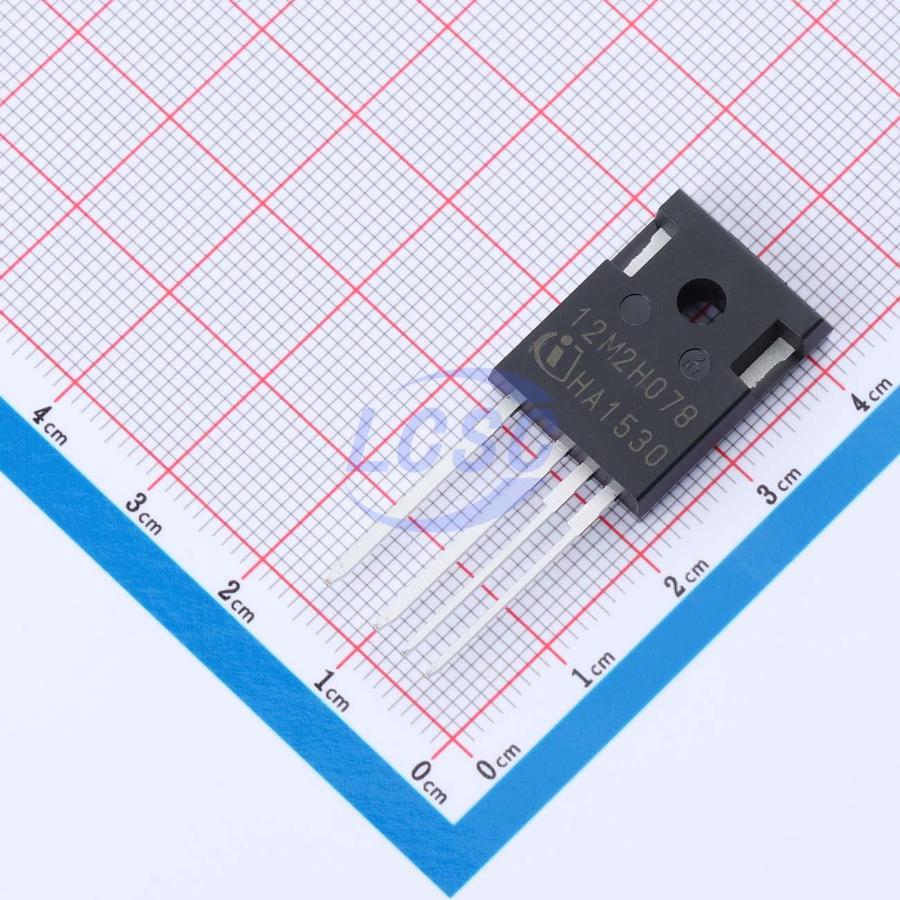

1.2kV 28A 143W 103mΩ 1 N-channel N-Channel TO-247-4 Single FETs, MOSFETs
TO-247-4RoHSActive
- Manufacturer
- Infineon
- Manufacturer part #
- IMZA120R078M2HXKSA1
- Store part #
- C50383068
- Package / case
- TO-247-4
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C50383068
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,810.23 | ₹1,810.23 |
| 10+ | ₹1,570.65 | ₹15,706.50 |
| 30+ | ₹1,424.45 | ₹42,733.50 |
| 90+ | ₹1,301.94 | ₹1,17,174.60 |
1 × ₹1,810.23
₹1,810.23
excl. GST
₹2,136.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IMZA120R078M2HXKSA1
₹1,810.23 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 1.2kV
- Current - Continuous Drain(Id)
- 28A
- Output Capacitance(Coss)
- 28pF
- Ciss-Input Capacitance
- 700pF
- Pd - Power Dissipation
- 143W
- Reverse Transfer Capacitance (Crss)
- 2pF
- RDS(on)
- 103mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 5.1V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.5 g
Overview
Pin Definition: - Pin 1 - Drain - Pin 2 - Source - Pin 3 - Kelvin Sense Contact - Pin 4 - Gate Note: Source and sense pins are not interchangeable; swapping them may cause malfunction
Applications
- General Purpose Drive (GPD)
- EV Charging
- Online UPS / Industrial UPS
- String Inverter
- Energy Storage System (ESS)
- Welding
Key features
- V_DSS = 1200 V at Tᵥⱼ = 25°C
- I_DDC = 20 A at T_C = 100°C
- R_DS(on) = 78 mΩ at V_GS = 18 V, Tᵥⱼ = 25°C
- Ultra-low switching losses
- Overload operation up to Tᵥⱼ = 200°C
- Short-circuit withstand time 2 μs
- Defined gate threshold voltage, V_GS(th) = 4.2 V
- High immunity to parasitic turn-on, compatible with 0 V turn-off gate voltage
- Robust body diode for hard commutation
- Best-in-class thermal performance with .XT interconnection technology
