InfineonDatasheet (PDF)

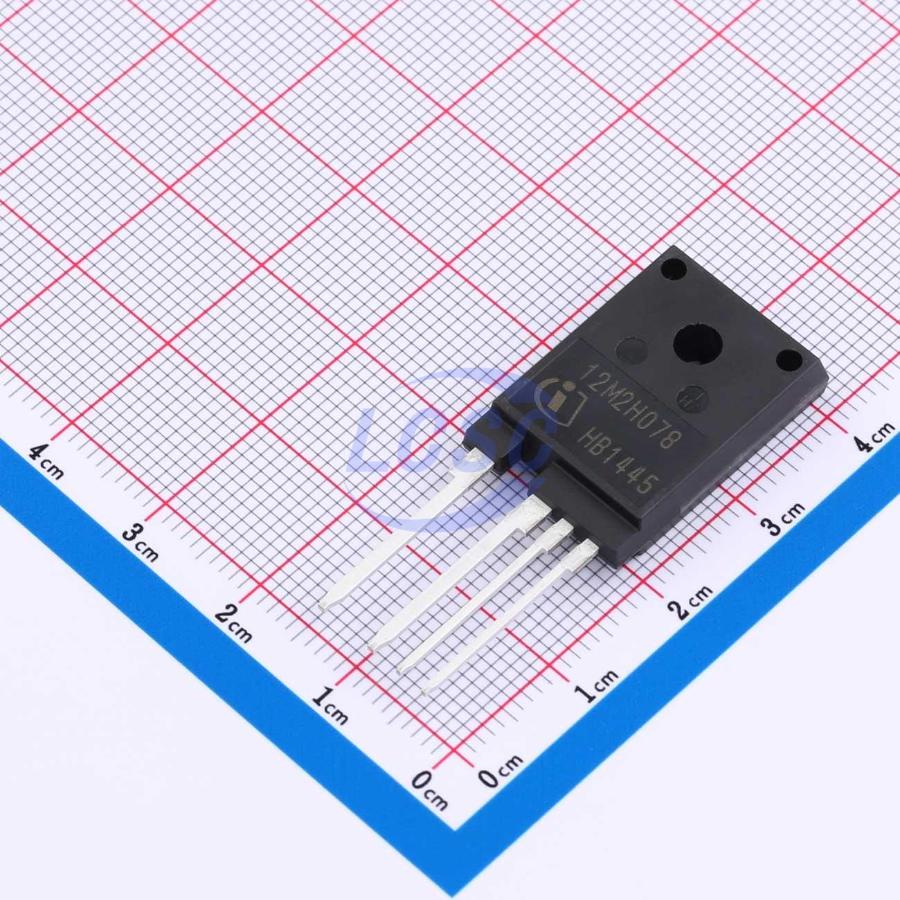

IMZC120R078M2HXKSA1
1.2kV 28A 143W Through Hole TO-247-4
TO-247-4ROHS3 CompliantActive
SICFET 1.2kV 28A TO-247-4
- Manufacturer
- Infineon
- Manufacturer part #
- IMZC120R078M2HXKSA1
- Store part #
- C44184296
- Package / case
- TO-247-4
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C44184296
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,318.03 | ₹1,318.03 |
| 10+ | ₹1,133.51 | ₹11,335.10 |
| 30+ | ₹1,020.99 | ₹30,629.70 |
| 100+ | ₹926.46 | ₹92,646.00 |
1 × ₹1,318.03
₹1,318.03
excl. GST
₹1,555.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 240 per tube
IMZC120R078M2HXKSA1
₹1,318.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 1.2kV
- Current - Continuous Drain(Id)
- 28A
- Output Capacitance(Coss)
- 28pF
- Ciss-Input Capacitance
- 700pF
- Pd - Power Dissipation
- 143W
- Reverse Transfer Capacitance (Crss)
- 2pF
- RDS(on)
- 78mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 4.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 240 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.66 g
Overview
Applications
- General purpose drives (GPD)
- EV Charging
- Online UPS / Industrial UPS
- String inverter
- Energy Storage Systems (ESS)
- Welding
Key features
- VDSS = 1200 V at TVj = 25℃
- IDDC = 20 A at TC = 100℃
- RDS(on) = 78 mΩ at VGS = 18 V, TVj = 25℃
- Very low switching losses
- Overload operation up to TVj = 200℃
- Short circuit withstand time 2 μs
- Benchmark gate threshold voltage, VDDC(th) = 4.2 V
- Robust against parasitic turn on, 0 V turn - off gate voltage can be applied
- Robust body diode for hard commutation
- .XT interconnection technology for best - in - class thermal performance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IMZA120R078M2HXKSA1#C50383068Infineon · TO-247-4 | Infineon | TO-247-4 | 10 | ₹1,810.23 · 10 in stock | View |
| BCZ120N80M2#C54333944Bestirpower · TO-247-4L | Bestirpower | TO-247-4L | 132 | ₹274.50 · 132 in stock | View | |
 | C3M0075120K-A#C7429887Wolfspeed · TO-247-4 | Wolfspeed | TO-247-4 | 31 | ₹1,370.48 · 31 in stock | View |
 | HC3M0075120K#C19723860HXY MOSFET · TO-247-4L | HXY MOSFET | TO-247-4L | 1 | ₹789.21 · 1 in stock | View |
 | UF4C120070K4S-HXY#C48972081HXY MOSFET · TO-247-4L | HXY MOSFET | TO-247-4L | 3 | ₹1,033.36 · 3 in stock | View |
