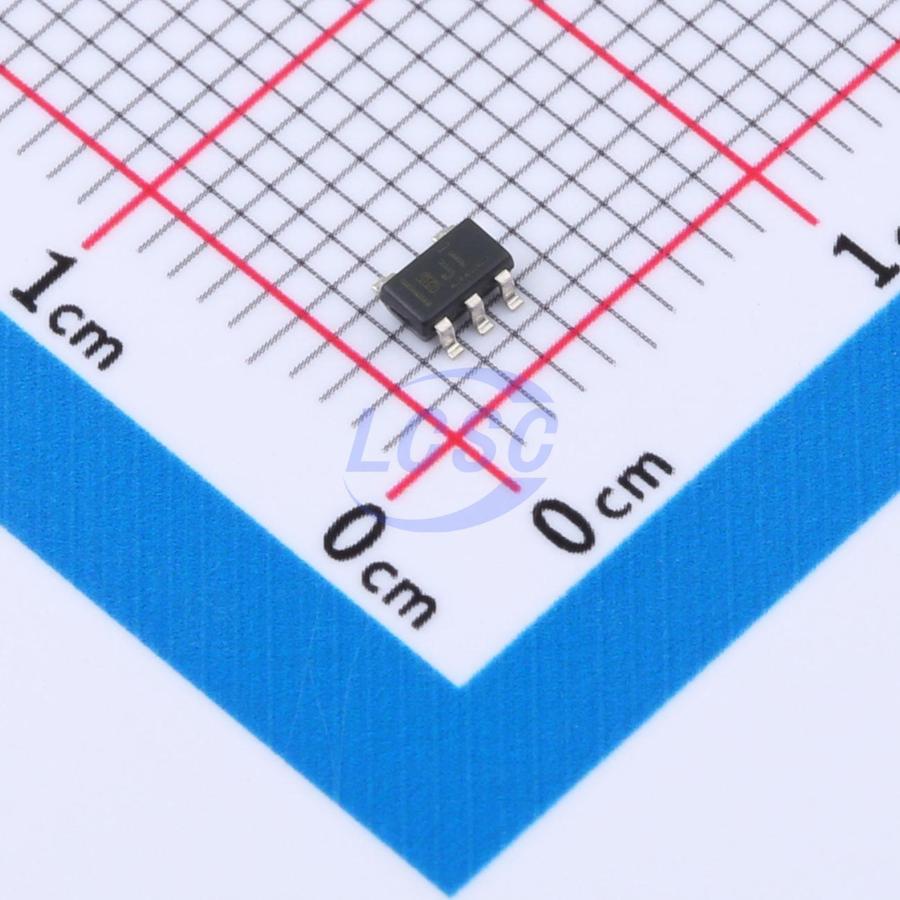

INA194AIDBVR
-16V~80V 300kHz 50V/V 500uV 8uA 1 SOT-23-5 Current Regulation/Management RoHS
SOT-23-5ROHS3 CompliantActive
Current Shunt Monitor - Common-Mode Range
- Manufacturer
- TI
- Manufacturer part #
- INA194AIDBVR
- Store part #
- C37807
- Package / case
- SOT-23-5
- Category
- Current Regulation/Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,229 in stock
#C37807
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹241.96 | ₹241.96 |
| 10+ | ₹187.01 | ₹1,870.10 |
| 30+ | ₹165.30 | ₹4,959.00 |
| 100+ | ₹140.53 | ₹14,053.00 |
| 500+ | ₹129.67 | ₹64,835.00 |
| 1,000+ | ₹124.68 | ₹1,24,680.00 |
1 × ₹241.96
₹241.96
excl. GST
₹285.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
INA194AIDBVR
₹241.96 for 1 + GST
Specifications
- Features
- Input filter;Enable/shutdown function;Bidirectional detection
- Vcm - Common Mode Voltage
- -16V~80V
- Bandwidth
- 300kHz
- Input Voltage (Vin)
- 2.7V~18V
- Operating Temperature
- -40℃~+125℃
- Gain
- 50V/V
- Common Mode Rejection Ratio(CMRR)
- 94dB
- Quiescent Current
- 700uA
- Vos - Input Offset Voltage
- 500uV
- Ib - Input Bias Current
- 8uA
- Number of Channels
- 1
- Differential Voltage
- ±18V
- Input Offset Voltage Drift(Vos TC)
- 2.5uV/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
The INA193−INA198 family of current shunt monitors with voltage output can sense drops across shunts at common-mode voltages from −16V to +80V, independent of the INA19x supply voltage. They are available with three output voltage scales: 20V/V, 50V/V, and 100V/V. The 500kHz bandwidth simplifies use in current control loops. The INA193−INA195 provide identical functions but alternative pin configurations to the INA196−INA198, respectively. The INA193−INA198 operate from a single +2.7V to +18V supply, drawing a maximum of 900μA of supply current. They are specified over the extended operating temperature range (-40°C to +125°C), and are offered in a space-saving SOT23 package.
Applications
- WELDING EQUIPMENT
- NOTEBOOK COMPUTERS
- CELL PHONES
- TELECOM EQUIPMENT
- AUTOMOTIVE
- POWER MANAGEMENT
- BATTERY CHARGERS
Key features
- WIDE COMMON-MODE VOLTAGE: −16V to +80V
- LOW ERROR: ±3.0% Over Temp (max)
- BANDWIDTH: Up to 500kHz
- THREE TRANSFER FUNCTIONS AVAILABLE: 20V/V, 50V/V, and 100V/V
- QUIESCENT CURRENT: 900μA (max)
- COMPLETE CURRENT SENSE SOLUTION
