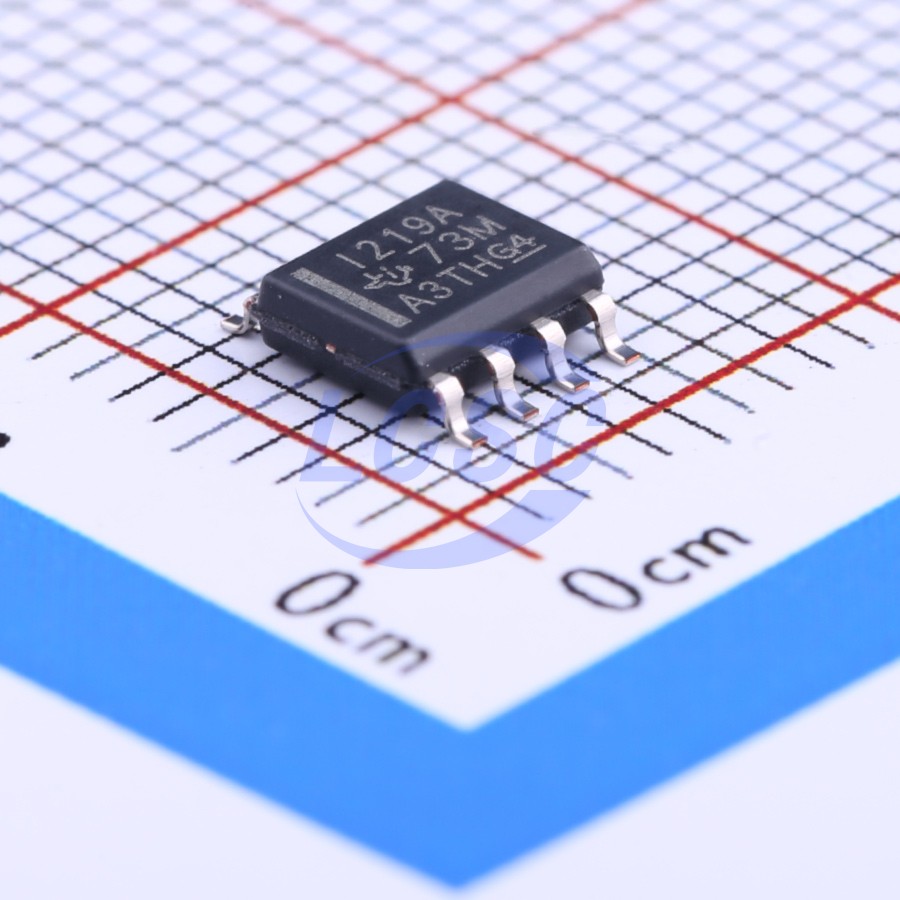

INA219AIDR

The INA219 is a current shunt and power monitor with an I²C or SMBUS-compatible interface. The device monitors both shunt voltage drop and bus supply voltage, with programmable conversion times and filtering. A programmable calibration value, combined with an internal multiplier, enables direct readouts of current in amperes. An additional multiplying register calculates power in watts. The I²C or SMBUS-compatible interface features 16 programmable addresses. The INA219 is available in two grades: A and B. The B grade version has higher accuracy and higher precision specifications. The INA219 senses across shunts on buses that can vary from 0 to 26 V. The device uses a single 3 V to 5.5 V supply, drawing a maximum of 1 mA of supply current. The INA219 operates from -40°C to 125°C.

Applications

• Servers
• Telecom Equipment
• Notebook Computers
• Power Management
• Battery Chargers
• Welding Equipment
• Power Supplies
• Test Equipment

Key features

• Senses Bus Voltages from 0 to 26 V
• Reports Current, Voltage, and Power
• 16 Programmable Addresses
• High Accuracy: 0.5% (Maximum) Over Temperature (INA219B)
• Filtering Options
• Calibration Registers
• SOT23-8 and SOIC-8 Packages
