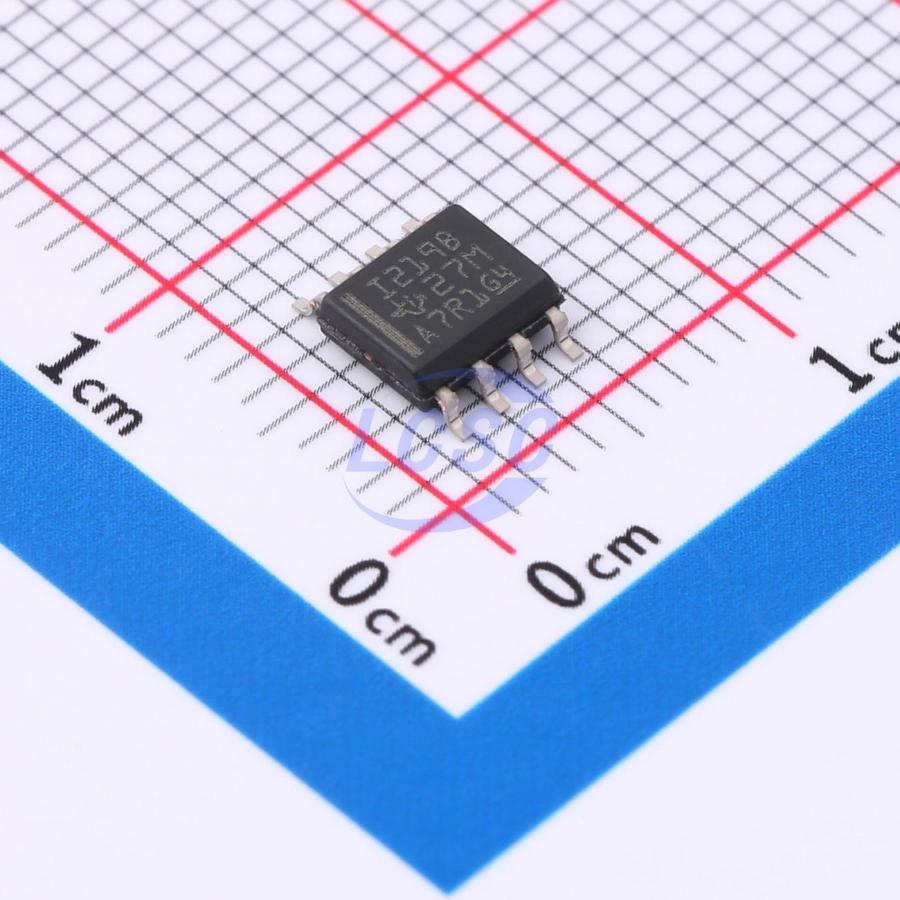

INA219BIDR

300mV~26V 10uV 20uA SOIC-8 Current Regulation/Management RoHS

SOIC-8ROHS3 CompliantActive

Zero-drift bidirectional current/power monitor with I²C interface

Manufacturer: TI
Manufacturer part #: INA219BIDR
Store part #: C2155799
Package / case: SOIC-8
Category: Current Regulation/Management
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,231 in stock

#C2155799

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹119.53	₹119.53
10+	₹97.89	₹978.90
30+	₹86.00	₹2,580.00
100+	₹72.66	₹7,266.00
500+	₹66.53	₹33,265.00
1,000+	₹63.82	₹63,820.00

Quantity (min 1)

1 × ₹119.53

₹119.53

excl. GST

₹141.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

INA219BIDR

₹119.53 for 1 + GST

Specifications

Features: Power monitoring;Digital output interface;Input filter;Zero drift / auto-zero
Vcm - Common Mode Voltage: 300mV~26V
Input Voltage (Vin): 3V~5.5V
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 120dB
Quiescent Current: 700uA
Vos - Input Offset Voltage: 10uV
Ib - Input Bias Current: 20uA
Differential Voltage: ±26V
Input Offset Voltage Drift(Vos TC): 0.1uV/℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.12 g

Overview

The INA219 is a shunt and power monitor with an I²C- or SMBUS-compatible interface. This device monitors the shunt voltage drop and the bus supply voltage. The number of conversions and filtering options can be set by programming. The programmable calibration value combined with the internal multiplier supports direct reading of the current value (in amperes). The power (in watts) can be calculated through an additional multiplication register. The I²C- or SMBUS-compatible interface has 16 programmable addresses. The INA219 is available in two grades: Grade A and Grade B. The Grade B models offer higher accuracy and more stringent precision specifications. The INA219 can sense the divided voltage in the bus within the range of 0V to 26V. This device is powered by a single 3V to 5.5V power supply, with a maximum supply current consumption of 1mA. The operating temperature range of the INA219 is from -40°C to 125°C.
