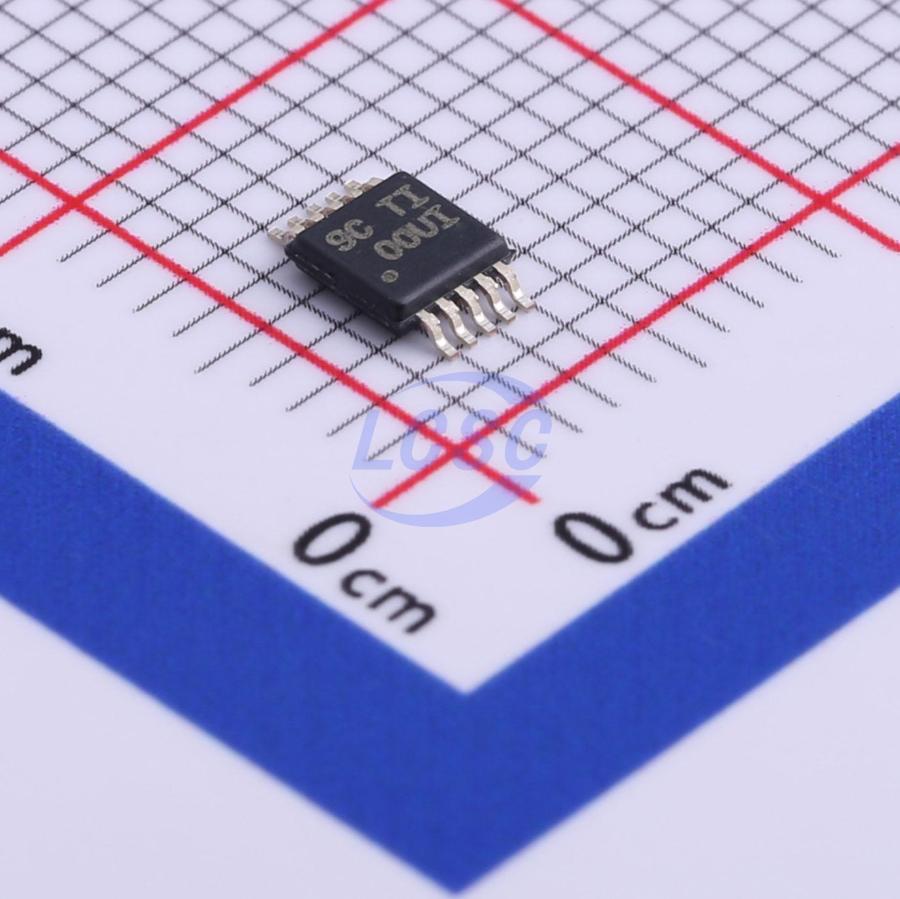

INA220AIDGSR

The INA220 is a shunt and power monitor with an I²C- or SMBus-compatible interface. The INA220 monitors shunt voltage drop and supply voltage. A programmable calibration value, combined with an internal multiplier, enables direct reading of current in amperes. An additional multiplication register calculates power in watts. The I²C- or SMBus-compatible interface has 16 programmable addresses. The independent shunt inputs of the INA220 allow its application in systems with low-side sensing capabilities. The INA220 is available in two grades: Grade A and Grade B. The Grade B models offer higher accuracy and more stringent precision specifications. The INA220 can sense the divided voltage in the bus from 0V to 26V, making it suitable for low-side sensing or CPU power supplies. The device is powered by a single 3V to 5.5V supply, with a maximum supply current consumption of 1mA. The INA220 operates over a temperature range of -40°C to 125°C. It is suitable for general loads, low-side or high-side sensing.

Applications

• Servers
• Telecom Equipment
• Laptop Power Management
• Battery Chargers
• Automotive
• Power Test Equipment

Key features

• High-side or low-side sensing
• Bus voltage sensing range: 0V to 26V
• Reports current, voltage, and power
• 16 programmable addresses
• High accuracy: 0.5% (maximum) over full temperature range (INA220B)
• User-programmable calibration
• Fast (2.56MHz) I²C or SMBUS compatible interface
• Ultra-thin VSSOP-10 package
