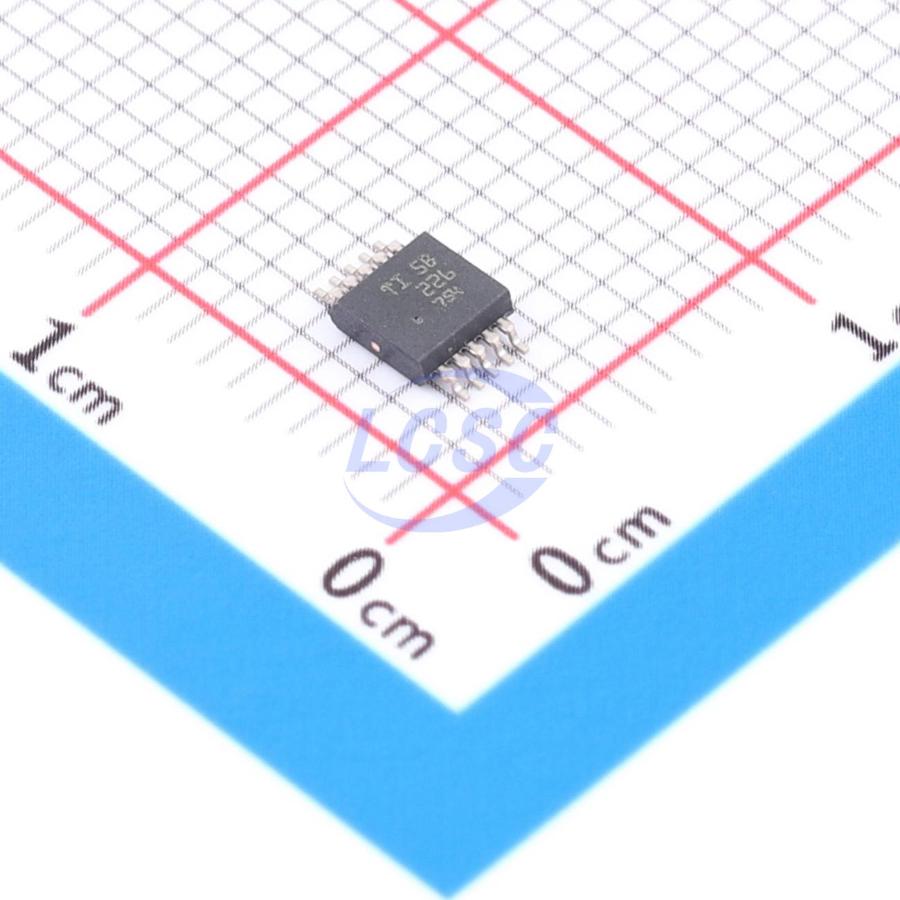

INA226AIDGST
36V 500kHz 2.5uV 10uA VSSOP-10-0.5mm Current Regulation/Management RoHS
VSSOP-10-0.5mmROHS3 CompliantActive
High-side/low-side measurement bidirectional current/power monitor with I²C compatible interface
- Manufacturer
- TI
- Manufacturer part #
- INA226AIDGST
- Store part #
- C2653870
- Package / case
- VSSOP-10-0.5mm
- Category
- Current Regulation/Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,509 in stock
#C2653870
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.06 | ₹125.06 |
| 10+ | ₹100.06 | ₹1,000.60 |
| 30+ | ₹87.66 | ₹2,629.80 |
| 250+ | ₹75.27 | ₹18,817.50 |
| 500+ | ₹67.64 | ₹33,820.00 |
| 1,000+ | ₹63.95 | ₹63,950.00 |
1 × ₹125.06
₹125.06
excl. GST
₹147.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 250 per reel
INA226AIDGST
₹125.06 for 1 + GST
Specifications
- Features
- High-side detection;Low-side detection;Power monitoring;Digital output interface;Programmable threshold alarm;Integrated ADC
- Vcm - Common Mode Voltage
- 36V
- Bandwidth
- 500kHz
- Input Voltage (Vin)
- 2.7V~5.5V
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 140dB
- Quiescent Current
- 330uA
- Vos - Input Offset Voltage
- 2.5uV
- Ib - Input Bias Current
- 10uA
- Differential Voltage
- ±40V
- Input Offset Voltage Drift(Vos TC)
- 0.1uV/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.35 g
Overview
The INA226 is a shunt/power monitor with an I2C- or SMBus-compatible interface. This device monitors shunt voltage drop and bus supply voltage. The programmable calibration value, conversion time, and averaging function, combined with an internal multiplier, enable direct reading of current values (in amperes) and power values (in watts). The INA226 can sense current over a common-mode bus voltage range of 0V to 36V, independent of the supply voltage. The device is powered by a single 2.7V to 5.5V supply, with a typical supply current of 330μA. The device is rated for operation over a temperature range of -40°C to 125°C and has up to 16 programmable addresses on the I2C-compatible interface.
Applications
- Servers
- Telecom equipment
- Computing
- Power management
- Battery charger power supplies
- Test equipment
- High-side or low-side sensing applications
Key features
- Sensed bus voltage range: 0V to 36V
- High-side or low-side sensing
- Reports current, voltage, and power
- High accuracy: 0.1% gain error (maximum), 10μV offset (maximum)
- Configurable averaging options
- 16 programmable addresses
- Powered by 2.7V to 5.5V supply
- 10-pin DGS VSSOP package
