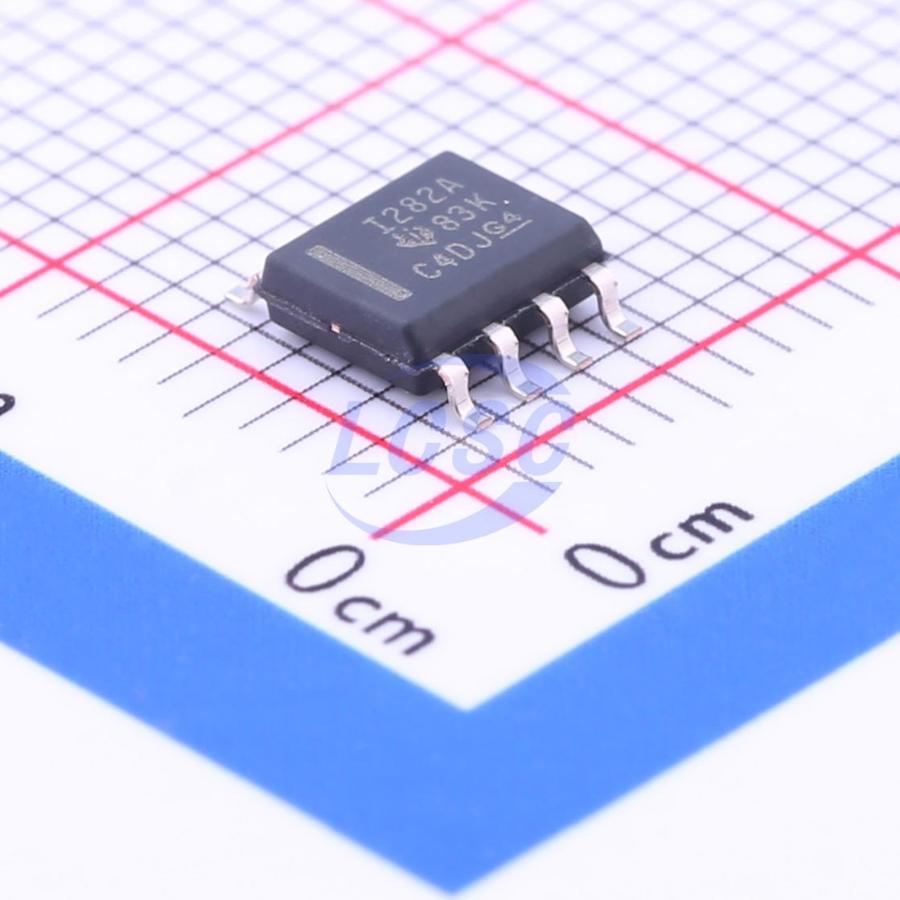

INA282AIDR

-14V~80V 10kHz 50V/V 20uV 25uA 1 SOIC-8 Current Regulation/Management RoHS

SOIC-8ROHS3 CompliantActive

High-Precision Wide Common-Mode Range Bidirectional Current Shunt Monitors

Manufacturer: TI
Manufacturer part #: INA282AIDR
Store part #: C53319
Package / case: SOIC-8
Category: Current Regulation/Management
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,975 in stock

#C53319

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹705.20	₹705.20
10+	₹602.88	₹6,028.80
30+	₹516.19	₹15,485.70
100+	₹454.72	₹45,472.00
500+	₹426.26	₹2,13,130.00
1,000+	₹413.65	₹4,13,650.00

Quantity (min 1)

1 × ₹705.20

₹705.20

excl. GST

₹832.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

INA282AIDR

₹705.20 for 1 + GST

Specifications

Features: Zero drift / auto-zero;High-side detection;Low-side detection;Bidirectional detection;Programmable output reference level
Vcm - Common Mode Voltage: -14V~80V
Bandwidth: 10kHz
Input Voltage (Vin): 2.7V~18V
Operating Temperature: -40℃~+125℃
Gain: 50V/V
Common Mode Rejection Ratio(CMRR): 140dB
Quiescent Current: 600uA
Vos - Input Offset Voltage: 20uV
Ib - Input Bias Current: 25uA
Number of Channels: 1
Differential Voltage: ±5V
Input Offset Voltage Drift(Vos TC): 0.3uV/℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.173 g

Overview

The INA282 family, which includes the INA282, INA283, INA284, INA285, and INA286 devices, are voltage-output current shunt monitors capable of sensing voltage drops across a shunt over a common-mode voltage range of -14V to +80V, independent of the supply voltage. The zero-drift architecture's low offset enables current sensing with a full-scale maximum voltage drop across the shunt as low as 10mV. This current shunt monitor operates from a +2.7V to +18V supply, consuming a maximum supply current of 900μA. It operates over an extended temperature range of -40°C to +125°C and is available in an SOIC-8 package.

Applications

Telecommunications equipment
Automotive electronics
Power management
Solar inverters

Key features

Wide common-mode range: -14V to 80V
Offset voltage: ±20μV
Common-mode rejection ratio (CMRR): 140dB
±1.4% gain error (maximum)
0.3μV/°C offset drift
0.005%/°C gain drift (maximum)
Available gains: 50V/V (INA282), 100V/V (INA286), 200V/V (INA283), 500V/V (INA284), 1000V/V (INA285)
Quiescent current: 900μA (maximum)
