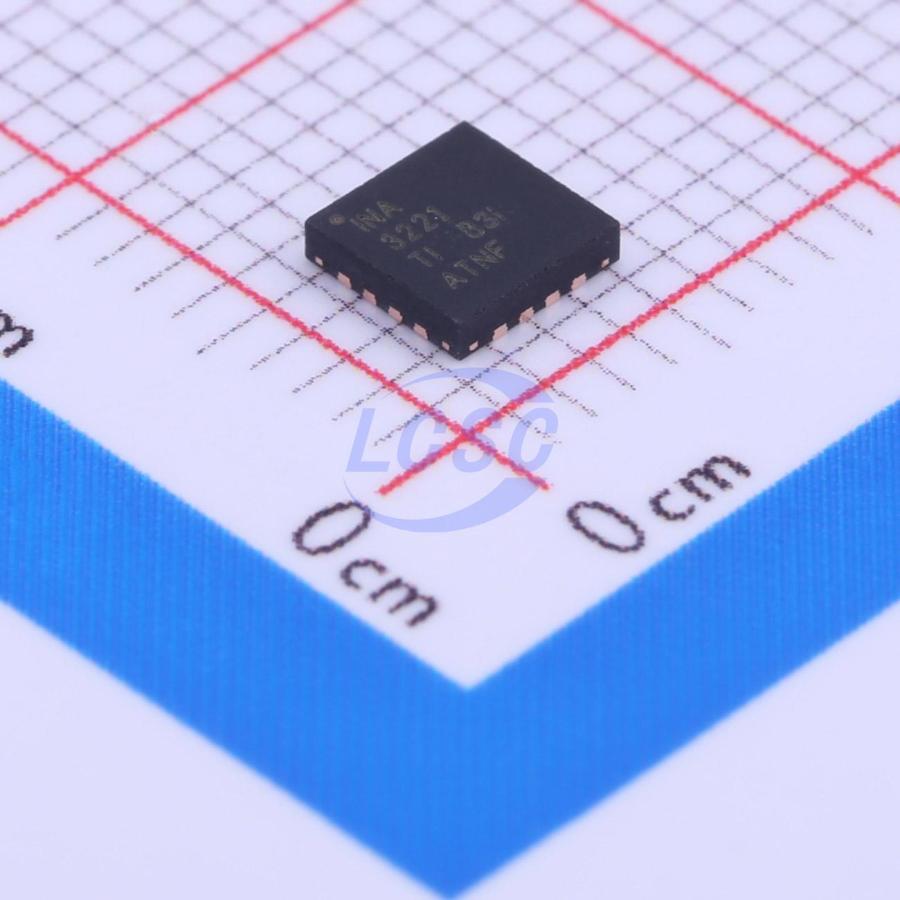

INA3221AIRGVR
-300mV~26V 500nV 10uA 3 QFN-16-EP(4x4) Current Regulation/Management RoHS
PopularQFN-16-EP(4x4)ROHS3 CompliantActive
Triple-Channel, High-Side Measurement, Shunt and Bus Voltage Monitor with I²C- and SMBUS-Compatible Interface
- Manufacturer
- TI
- Manufacturer part #
- INA3221AIRGVR
- Store part #
- C181255
- Package / case
- QFN-16-EP(4x4)
- Category
- Current Regulation/Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,461 in stock
#C181255
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹311.90 | ₹311.90 |
| 10+ | ₹268.67 | ₹2,686.70 |
| 30+ | ₹241.53 | ₹7,245.90 |
| 100+ | ₹213.94 | ₹21,394.00 |
| 500+ | ₹187.67 | ₹93,835.00 |
| 1,000+ | ₹182.23 | ₹1,82,230.00 |
1 × ₹311.90
₹311.90
excl. GST
₹368.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
INA3221AIRGVR
₹311.90 for 1 + GST
Specifications
- Features
- Programmable threshold alarm;Digital output interface;High-side detection;Integrated ADC
- Vcm - Common Mode Voltage
- -300mV~26V
- Input Voltage (Vin)
- 2.7V~5.5V
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Quiescent Current
- 350uA
- Vos - Input Offset Voltage
- 500nV
- Ib - Input Bias Current
- 10uA
- Number of Channels
- 3
- Differential Voltage
- ±26V
- Input Offset Voltage Drift(Vos TC)
- 0.5uV/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.129 g
Overview
The INA3221 is a three-channel, high-side current and bus voltage monitor with an I²C and SMBUS-compatible interface. The INA3221 monitors both shunt voltage drops and bus supply voltages, in addition to having programmable conversion times and averaging modes for these signals. The INA3221 offers both critical and warning alerts to detect multiple programmable out-of-range conditions for each channel. The INA3221 senses current on buses that can vary from 0 V to 26 V. The device is powered from a single 2.7 V to 5.5 V supply, and draws 350 μA (typ) of supply current. The INA3221 is specified over the operating temperature range of -40°C to +125°C. The I²C and SMBUS-compatible interface features four programmable addresses.
Applications
- Computers
- Power Management
- Telecom Equipment
- Battery Chargers
- Power Supplies
- Test Equipment
Key features
- Senses Bus Voltages From 0 V to 26 V
- Reports Shunt and Bus Voltage
- High Accuracy:
- Offset Voltage: ±80 μV (max)
- Gain Error: 0.25% (max)
- Configurable Averaging Options
- Four Programmable Addresses
- Programmable Alert and Warning Outputs
- Power-Supply Operation: 2.7 V to 5.5 V
