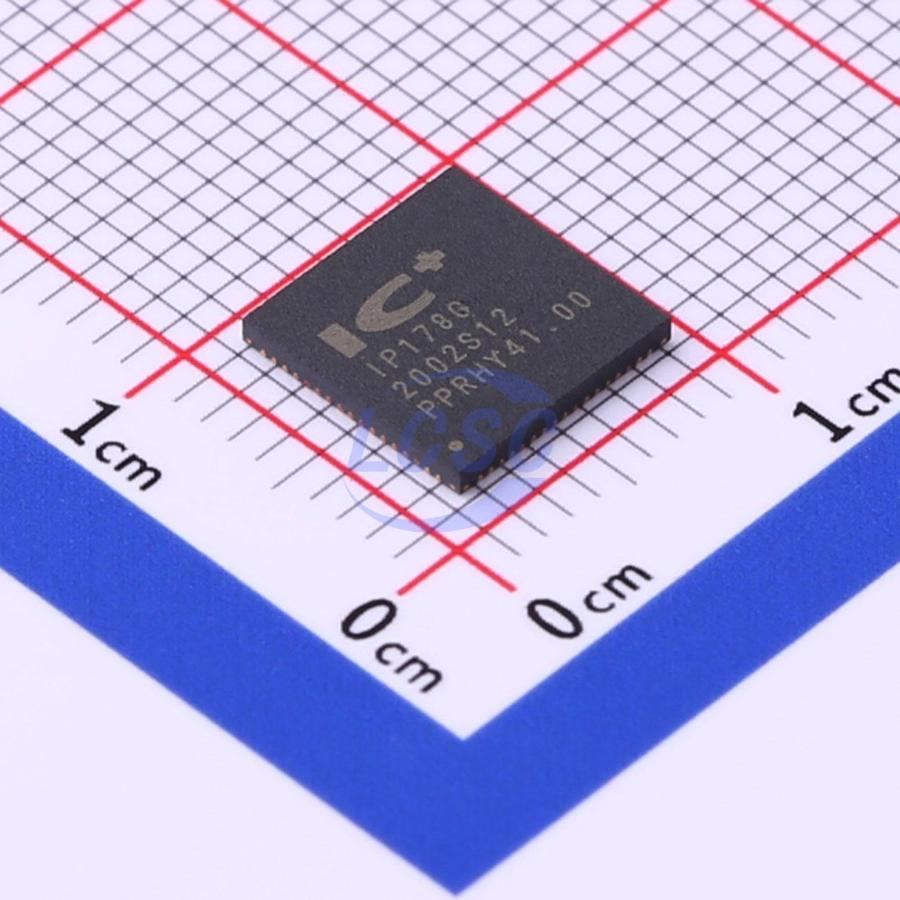

IC Plus

IP178G

QFN-68-EP(8x8) Telecom RoHS

QFN-68-EP(8x8)ROHS CompliantActive

8 Port 10/100 Ethernet Integrated Switch

Manufacturer: IC Plus
Manufacturer part #: IP178G
Store part #: C703544
Package / case: QFN-68-EP(8x8)
Category: Telecom
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,273 in stock

#C703544

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹250.06	₹250.06
10+	₹212.26	₹2,122.60
30+	₹188.79	₹5,663.70
260+	₹164.46	₹42,759.60
520+	₹153.60	₹79,872.00
1,040+	₹148.82	₹1,54,772.80

Quantity (min 1)

1 × ₹250.06

₹250.06

excl. GST

₹295.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 260 per tray

IP178G

₹250.06 for 1 + GST

Specifications

MAC Address Support: 1024
Operating Temperature: 0℃~+70℃
Number of Channels: 8
Integrated PHY: Yes
Features: Automatic polarity correction;Low-power mode;Port independent power-down
VLAN Support: 16
Ethernet Speed Standards: 10BASE-T;100BASE-TX
Memory Space: 56KB
Voltage - Supply: 3.3V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tray
Standard pack: 260 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 1.6 g

Overview

IP178Gx is fabricated with advanced CMOS (85nm) technology and only requires a 3.3V single power supply. This feature makes IP178GX used very low power consume, such as the full load operation (100Mbps full duplex 8 ports), it only takes 0.95W. IP178Gx also supports Power Management Tool (PWMT) for IEEE 802.3az, APS, WOL+ and PWD for Green Power. While two link devices have no IEEE 802.3az capability, IP178Gx use WOL+ to change link from 100Mbps to 10Mbps for saving power. The PWD, force-off power saving of IP178Gx is designed for power down switch immediately by pushing a button, user don’t plug out the power adapter. Push the button again, it will power on immediately. Except Low Power and Rich Power Saving method, IP178Gx supports AFT for saving Customer Testing Cost. By using a push button and cables, IP178Gx will Auto test completely by itself.

Applications

8 port 10/100 Dumb switch
6TX + 2FX Dumb Switch or 7TX + 1FX Dumb Switch

Key features

8 port Embedded 10/100 PHY Switch Controller
IP178G Support 8 100BaseTX IP178GH/GI support 8 100BaseTX or 6 100BaseTX + 2 FX 100M PHY support IEEE802.3az at full duplex 10M PHY only support 10BaseTe
Support Auto MDI-MDIX function
Power Management Tool (PWMT) APS, auto-power saving while Link-off
IEEE 802.3az protocol based power saving WOL+, light traffic power saving PWD, force-off power saving
Support Auto Factory Test (AFT)
Single Power 3.3V supply
Built in 1.1V core voltage LDO Regulator
Two Priority queues per port
Support 802.1p & DiffServ based QoS QoS Port base 802.1p IP DiffServ IPV4/IPV6 TCP/UDP port number
Pins configure ports priority (VIP port)
Support max forwarding packet length 1552/1536 bytes option
Embedded 448K bits packet buffer
Support port mirror function
Support 1k MAC address
Support broadcast storm protection
Support port trunking (Link Aggregation)
Support 16 VLAN (IEEE Std 802.1q) Port-based/Tagged-based VLAN
Support Port-based insert, remove tag
Built-in 50 ohm resistors for simplifying BOM
85nm Process Package and operation temperature IP178G/GH: 68 Pin QFN, 0~70°C
IP178GI: 68 Pin QFN, -40~85°C
