INJOINIC

IP2709_BF20WP

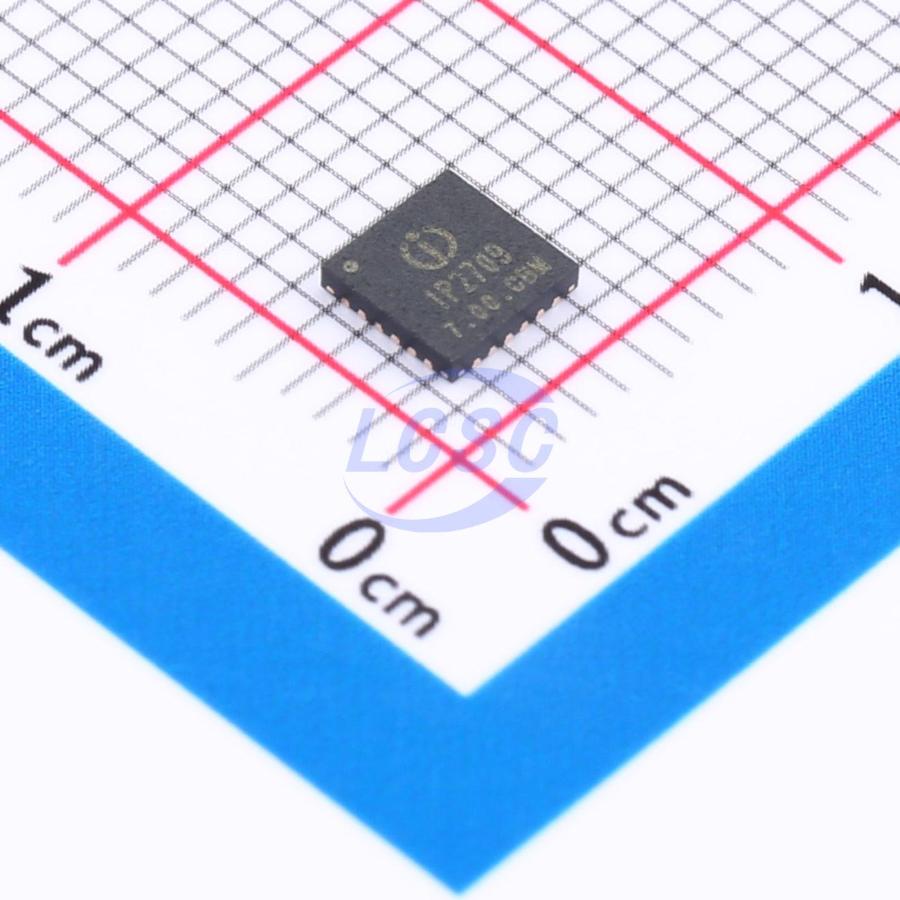

Power Supply Controller 1C1A QFN-24(4x4) Power Management - Specialized

QFN-24(4x4)RoHSActive

Fast charging protocol IC integrating multiple protocols and used for dual-port output of USB-A and Type-C

Manufacturer: INJOINIC
Manufacturer part #: IP2709_BF20WP
Store part #: C20606460
Package / case: QFN-24(4x4)
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,939 in stock

#C20606460

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹35.87	₹35.87
10+	₹31.34	₹313.40
30+	₹29.43	₹882.90
100+	₹26.99	₹2,699.00
500+	₹25.95	₹12,975.00
1,000+	₹25.25	₹25,250.00

Quantity (min 1)

1 × ₹35.87

₹35.87

excl. GST

₹42.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

IP2709_BF20WP

₹35.87 for 1 + GST

Specifications

Type: Power Supply Controller
Features: Under-voltage lockout;Overvoltage protection;Undervoltage Protection;Overcurrent Protection;Thermal Protection;Automatic protocol detection
Protocol: PD 2.0;PD 3.0;PPS;QC 2.0;QC 3.0;QC 4;QC 4+;FCP;SCP;AFC
Number of Lines: 1C1A
Operating Temperature: -40℃~+85℃
Voltage - Supply: 3V~15V
Output Voltage: 5V;7V;9V;12V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.122 g

Overview

IP2709 is a multi-protocol fast charging IC designed for dual-port output with USB-A and Type-C. It supports a wide range of fast charging protocols, including USB Type-C DFP, PD2.0/PD3.0/PPS, HVDCP/QC4+/QC4/QC3.0/QC2.0 (Quick Charge), FCP (Hisilicon Fast Charge Protocol), SCP (Super Fast Charge), AFC (Samsung Adaptive Fast Charge), MTK PE+ 2.0/1.1 (MediaTek Pump Express Plus 2.0/1.1), Apple 2.4A, BC1.2, and Samsung 2.0A. It provides a complete Type-C solution for unidirectional output applications such as adapters and car chargers. The IP2709 features high integration and rich functionality, requiring minimal external components in application, effectively reducing overall solution size and BOM cost.

Applications

Single-directional fast charging output applications
AC power adapters
Car chargers
System applications with PD output functionality

Key features

1A1C support
Dual-port USB-A and Type-C output
Full fast-charging protocol support on single-port output
Voltage reduced to 5V when both ports in use simultaneously
Integrated QC2.0/QC3.0/QC4/QC4+ output fast-charging protocols, Class A voltage level support
Integrated FCP output fast-charging protocol
Integrated SCP output fast-charging protocol
Integrated AFC output fast-charging protocol
Integrated MTK PE+1.1/2.0 output fast-charging protocols
PE+2.0: 5V (0.5V/Step) configuration
PE+1.1: 5V, 7V, 9V, 12V configuration
Integrated USB-C DFP protocol with output fast-charging support
Compatible with BC1.2, Apple, and Samsung fast-charging
Integrated Type-C DFP protocol
Auto-detection of Type-C device insertion and removal
Integrated standard PD2.0/PD3.0/PPS protocols
Integrated E-MARK cable recognition with auto-detection of fast-charging requests based on DP/DM voltage
CV, CC, and CP support on both Type-A and Type-C ports
FB voltage divider resistor mode support
Direct optocoupler drive mode support (built-in 431)
Integrated ADC for path current sensing
Built-in power path management
Built-in automatic discharge circuit control
Auto entry into standby low-power mode
Output OCP, OVP, and short-circuit protection
NTC over-temperature protection
DP, DM, CC1, CC2 OVP
DP, DM weak short-to-ground protection
DP/DM/CC1/CC2 20V high voltage tolerance
