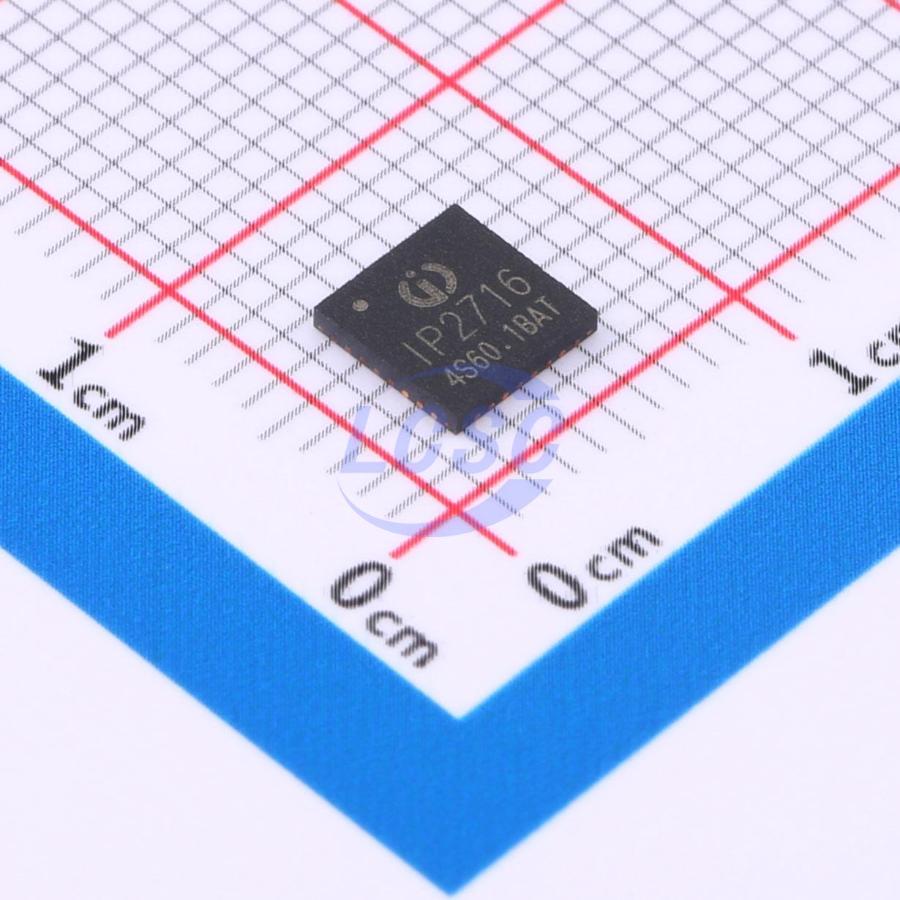

IP2716T_65W_T3

IP2716T is a multifunctional power management SOC integrating USB Type-C input/output protocols, USB Power Delivery (PD2.0/PD3.0) input/output protocols, QC3.0/2.0 output fast charging protocols (compatible with DCP identification, BC1.2, Apple, and Samsung devices), MTK PE+1.1, FCP, and more. It provides a complete Type-C solution for adapters, power banks, and car chargers.

Applications

• Mobile phones
• Laptops
• Tablets
• VR headsets
• Drones

Key features

• Integrated USB TYPE-C protocol
• Integrated TYPE-C DRP protocol
• Auto-detection of TYPE-C device insertion and removal
• Auto-detection of TYPE-C device charging and discharging attributes
• Integrated USB Power Delivery (PD2.0/PD3.0) protocol
• USB PD2.0 DRP certified, TID: 1000162
• Integrated hardware bidirectional Biphase Mark Coding/Decoding (BMC) protocol
• Integrated Physical Layer (PHY) protocol
• Integrated hardware CRC
• Integrated PD2.0/PD3.0 protocol
• Integrated E-MARK cable identification and support
• Power Role Swap support
• Hardware Reset support
• Integrated QC3.0/2.0 fast charging protocol
• Integrated QC3.0/2.0 output fast charging protocol
• CLASS A and CLASS B voltage level support
• BC1.2/APPLE/SAMSUNG charging protocol compatible
• Integrated voltage feedback regulation mechanism
• MTK PE+1.1 fast charging support
• FCP/SCP fast charging support
• Power Management
• Built-in 5V 600mA VCONN switch path
• Integrated switch control for external 5V~20V power MOS
• Integrated ADC detection for external MOS path current
• Built-in power path management
• Battery or VBUS power supply support
• Battery-free system power supply support
• ADC
• Built-in 14-bit ADC
• Built-in VBUS voltage and current detection
• Built-in battery voltage detection
• Built-in VCONN voltage detection
• General Interface
• I2C
• Low Power Consumption
• Standby average current less than 100uA
• Package
• 5 mm × 5 mm QFN32
