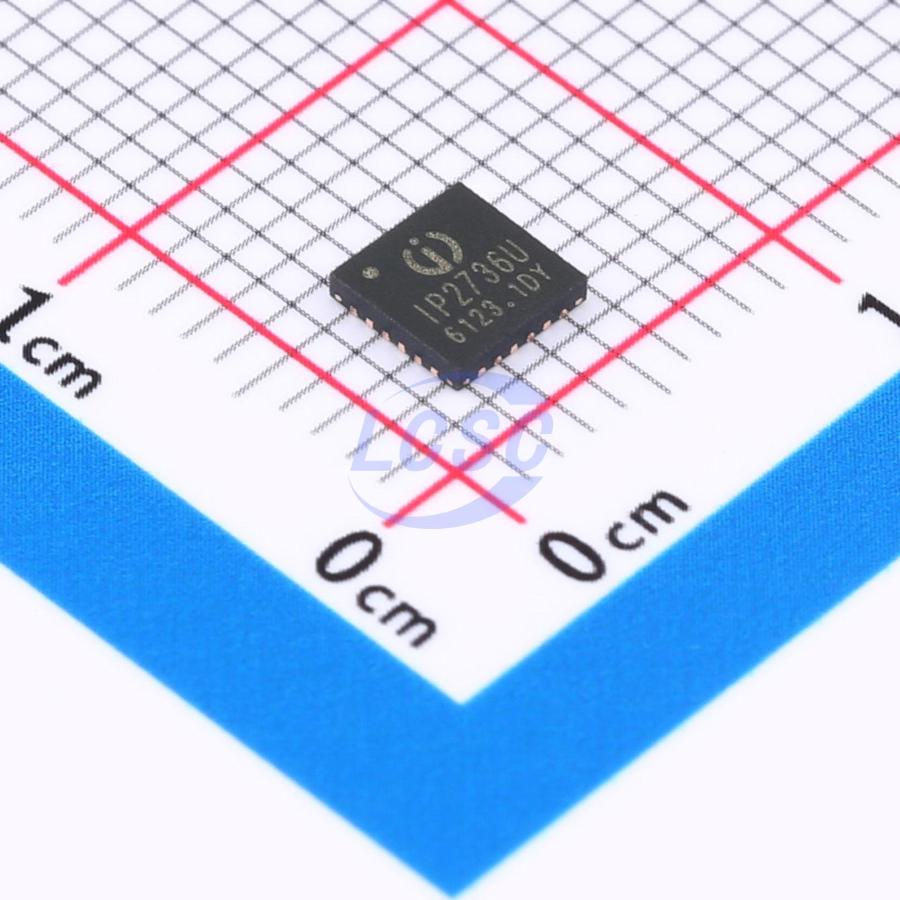

Power Supply Controller QFN-24-EP(4x4) Power Management - Specialized

QFN-24-EP(4x4)RoHSActive

USB port fast charging protocol IC integrating multiple protocols

Manufacturer: INJOINIC
Manufacturer part #: IP2736U_EF
Store part #: C42437970
Package / case: QFN-24-EP(4x4)
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,982 in stock

#C42437970

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹96.27	₹96.27
10+	₹86.27	₹862.70
30+	₹80.84	₹2,425.20
100+	₹74.54	₹7,454.00
500+	₹71.93	₹35,965.00
1,000+	₹70.62	₹70,620.00

Quantity (min 1)

1 × ₹96.27

₹96.27

excl. GST

₹113.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

IP2736U_EF

₹96.27 for 1 + GST

Specifications

Type: Power Supply Controller
Features: Under-voltage lockout;Overcurrent Protection;Overvoltage protection;Short-Circuit Protection;Thermal Protection;Automatic protocol detection
Protocol: PD 2.0;PD 3.1;FCP;SCP;AFC
Operating Temperature: -20℃~+115℃
Voltage - Supply: 3V~25V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.124 g

Overview

IP2736U is a multi-protocol fast charging protocol controller IC for USB ports, supporting a wide range of fast charging protocols including USB Type-C DFP, PD2.0/PD3.1/PPS/EPR 28V, HVDCP QC5/QC4+/QC3+/QC3.0/QC2.0 (Quick Charge), FCP (Hisilicon Fast Charge Protocol), SCP (Super Fast Charge), AFC (Samsung Adaptive Fast Charge), SFCP, MTK PE+2.0/1.1 (MediaTek Pump Express Plus 2.0/1.1), UFCS (Universal Fast Charging for Mobile Devices), Apple 2.4A, BC1.2, and SAMSUNG 2.0A. It provides a complete solution for unidirectional output applications such as adapters and car chargers. The IP2736U features high integration and rich functionality, requiring minimal external components in application, effectively reducing overall solution size and lowering BOM cost.

Applications

Single-way fast charging output applications
AC power adapters
Mobile power banks
In-vehicle chargers
System applications with PD output functionality

Key features

Fast Charging Specifications:
Integrated USB Power Delivery (2.0/3.1) protocol
Integrated Type-C protocol (Source), integrated PD2.0/PD3.1/PPS/EPR 28V protocol, PD with PPS USB-IF TID: 10162, integrated E-Marker cable recognition and support
Integrated QC5/QC4+/QC3+/QC3.0/QC2.0 protocol, supports Class B voltage level
Integrated FCP/SCP output fast charging protocol
Integrated AFC output fast charging protocol
Integrated SFCP output fast charging protocol
Integrated MTK PE+2.0/1.1 output fast charging protocol
Integrated UFCS fast charging protocol, certified with UFCS Fast Charging Function Certificate 0302247161585R0M-UFCS00009
Compatible with BC1.2, Apple, and SAMSUNG fast charging
Built-in Voltage Reference:
Integrated programmable voltage loop control, minimum step 10mV
Integrated programmable current loop control
Integrated low-side current sensing
Line loss compensation support
Multiple Voltage Adjustment Methods:
PWM controller feedback control
Optocoupler drive control
I2C interface control
Power Management:
Integrated NMOS driver
Integrated NMOS dropout detection
Built-in automatic discharge control
Standby low-power mode support
Multiple Protections, High Reliability:
Output overcurrent, overvoltage, and short-circuit protection
Up to 4-channel NTC over-temperature protection, built-in NTC open-circuit detection
DP/DM/CC1/CC2 overvoltage protection
DP/DM/CC1/CC2 all support 20V high voltage tolerance
Flexible customization, supports online upgrade, QFN24 package
