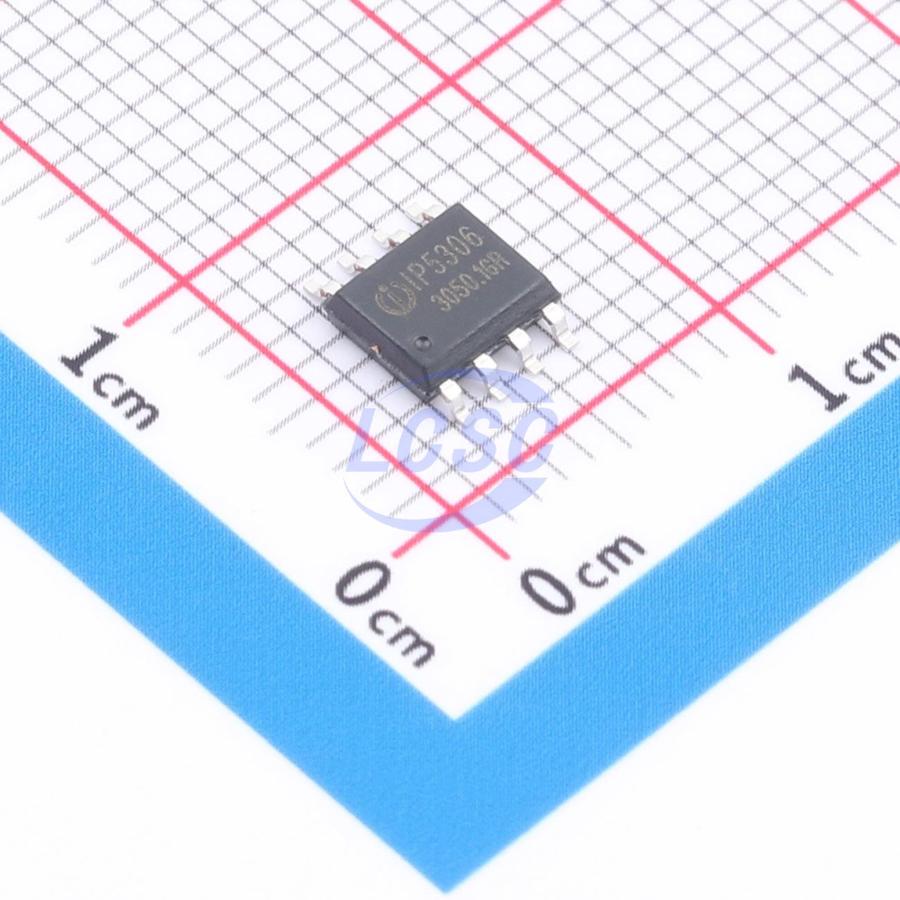

IP5306_4V4

IP5306 is a multifunctional power management SoC integrating a boost converter, lithium battery charge management, and battery level indication, providing a complete power solution for power banks. Its high integration and rich feature set require minimal external components, effectively reducing overall solution size and BOM cost. The device requires only a single inductor to implement both buck and boost functions, supporting low-cost inductors and capacitors. The synchronous boost system delivers a maximum output current of 2.4A with conversion efficiency up to 92%; under no-load conditions, it automatically enters sleep mode with quiescent current dropping to 100µA. It employs switching charging technology to provide a maximum charging current of 2.1A with charging efficiency up to 91%, with built-in intelligent charging current adjustment based on IC temperature and input voltage. The device supports 1, 2, 3, or 4 LEDs for battery level display and comes in an ESOP8 package.

Applications

• Power banks / portable chargers
• Mobile phones, tablets, and other portable devices

Key features

• Synchronous switch charge/discharge: 2.4A synchronous boost conversion, 2.1A synchronous switch charging; boost efficiency up to 92%; charging efficiency up to 91%; built-in power path management with simultaneous charge and discharge support.
• Charging: adaptive charging current regulation, adaptive adapter; supports 4.20V, 4.30V, 4.35V, 4.40V batteries.
• Battery level display: supports 4, 3, 2, 1 LED battery level indicators.
• Feature-rich: power-on button; built-in flashlight driver; automatic detection of mobile device insertion and removal.
• Low power consumption: intelligent load detection with automatic standby entry; standby power consumption less than 100µA.
• Minimal BOM: built-in power MOSFETs, single-inductor charge/discharge implementation.
• Multiple protections, high reliability: output overcurrent, overvoltage, and short-circuit protection; input overvoltage, overcharge, over-discharge, and overcurrent discharge protection; full-system overtemperature protection; ESD protection up to 4kV, transient voltage withstand 12V.
• Deep customization: customizable I2C interface, flexible and low-cost customization solution, customized model IP5306_I2C.
