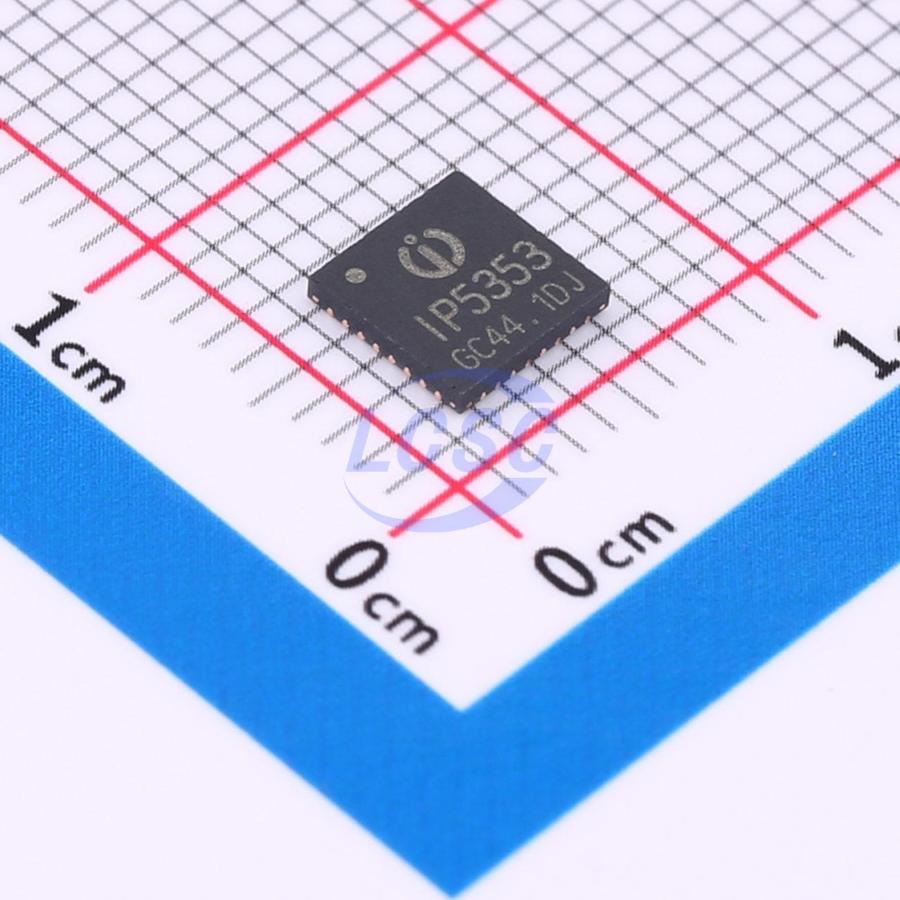

IP5353_I2C_AABC_DWDKO

This chip integrates QC2.0/QC3.0/SCP output fast charging protocols, FCP/AFC input/output fast charging protocols, TYPE-C/PD2.0/PD3.0 input/output protocols, PPS output protocol, and BC1.2/Apple/Samsung DCP protocols. It also integrates a synchronous buck-boost converter, battery charging management, battery fuel gauge, and other multi-function power management SOC, providing a complete power solution for fast-charging power banks. It supports simultaneous multi-port USB output, up to 4 USB ports with fast charging, and any single USB port supports fast charging independently. In multi-port output and pass-through charging mode, only the 5V voltage level is supported. Thanks to its high integration and rich feature set, minimal external components are required — a single inductor enables both buck and boost functionality, effectively reducing solution size and BOM cost. The synchronous switching boost system delivers up to 22.5W (10V@2.25A) output capability. Under light load, the chip automatically enters sleep mode. The synchronous switching charging system supports 18W charging with battery-side charging current up to 5.0A. Built-in chip temperature, battery temperature, and input voltage control loops enable intelligent charging current regulation. Built-in TYPE-C & PD2.0/PD3.0 protocol support. Supports 4-LED battery level display, lighting function, button function, and I2C control interface.

Applications

• Power banks
• Portable storage power supplies
• Mobile phones
• Tablets

Key features

• Supports multiple USB port configurations simultaneously, including AABC, AACL, ABCL, and more
• Supports 5V, 9V, 12V voltage input/output
• Integrated QC2.0/QC3.0 output fast charging protocol
• Integrated FCP input/output fast charging protocol
• Integrated AFC input/output fast charging protocol
• Integrated high-voltage 10V@2.25A SCP output fast charging protocol
• Integrated USB C DRP protocol with input/output fast charging support
• Compatible with BC1.2, Apple, and Samsung fast charging
• Integrated USB Power Delivery (PD2.0/PD3.0) protocol with input/output and PPS output protocol support
• PPS supports 3.3V–11V output voltage in 20mV/step increments
• Integrated hardware bi-directional Biphase Mark Coding/Decoding (BMC) protocol
• Integrated PHY
• Integrated hardware CRC
• Supports Hard Reset
• Supports 18W charging with maximum battery charging current up to 5.0A
• Adaptive charging current regulation
• Compatible with 4.20V, 4.30V, 4.35V, and 4.40V battery specifications
• Output current capability: 5V@3.1A, 9V@2.22A, 12V@1.67A
• Synchronous buck discharge efficiency ≥95% at 5V@2A
• Supports output cable compensation
• Supports 4-LED battery level display
• Automatic device insertion/removal detection
• Supports fast charging status indicator
• Intelligent load detection with automatic standby under light load
• Built-in flashlight driver
• Supports I2C interface
• Comprehensive protection and high reliability: input OVP/UVP, output OCP/OVP/SCP, battery overcharge/over-discharge/OCP, chip OTP, and NTC protection for abnormal battery temperature during charge/discharge
• ESD 4KV
• Minimal BOM with integrated power switch MOS and path MOS
• Single-inductor design for both charging and discharging
• QFN32 package, 5mm×5mm (0.5mm pin pitch)
