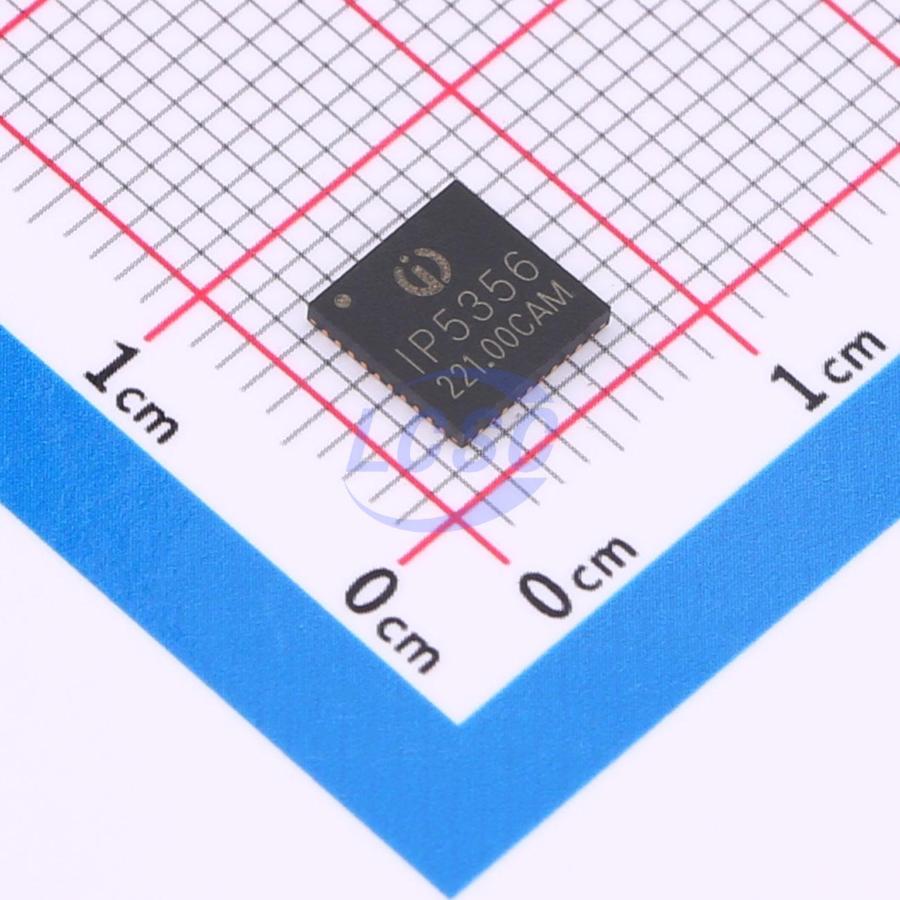

IP5356M_LBZ_CB

This device is a power management SoC integrating multiple fast-charging protocols, a synchronous buck-boost converter, Li-ion battery charge management, and battery fuel gauge functions, providing a complete solution for fast-charging power banks. It supports multiple simultaneous USB ports, with fast charging available on any single port when used alone, and 5V-only output when multiple ports are active simultaneously. Its highly integrated design requires only a single inductor to achieve both buck and boost functions, significantly reducing the peripheral component count and helping to minimize solution size and BOM cost. The synchronous switching boost system delivers up to 22.5W output capability and automatically enters sleep mode under no-load conditions. The synchronous switching charge system supports 18W charging power, with a maximum battery-side charging current of 5.0A and built-in multiple control loops for intelligent charging current regulation. The device integrates TYPE-C and PD2.0/PD3.0 protocols, a 14-bit ADC, current sensing circuitry, and a fuel gauge algorithm to accurately measure and display battery capacity. It also supports multiple battery level display modes, lighting functions, button control, and an I2C interface.

Applications

• Power bank
• Mobile phone
• Tablet

Key features

• Supports multiple USB ports simultaneously: 2× USB-A output, 1× USB-B input, 1× USB-C input/output, 1× Lightning input; customizable with 1× USB-C input/output + USB-C output configuration.
• Wide fast-charging protocol support: integrated QC2.0/QC3.0 output, FCP input/output, AFC input/output, high-voltage SCP output, USB-C DRP protocol; compatible with BC1.2, Apple, and Samsung fast charging; integrated Lightning input communication.
• Integrated USB Power Delivery protocol: supports PD2.0 bidirectional input/output, PD3.0 input/output, and PPS output; voltage levels of 5V, 9V, 12V for both input and output; PPS output voltage adjustable from 3.3~11V in 20mV steps; integrated hardware bidirectional marker codec protocol, physical layer protocol, hardware CRC, and hard reset support.
• Charging specifications: 18W charging support; maximum battery charging current 5.0A; adaptive charging current adjustment; compatible with 4.20V, 4.30V, 4.35V, and 4.40V batteries.
• Discharging specifications: output capability 5V@3.1A, 9V@2.22A, 12V@1.67A; synchronous switching discharge efficiency >95% at 5V@2A; cable compensation supported.
• Battery gauge display: built-in 14-bit ADC and fuel gauge; supports 1/2/3/4 LED indicators or 88/188 segment display; automatic LED count detection.
• Additional features: automatic device insertion/removal detection; fast-charging status indication; battery temperature monitoring; intelligent load detection with light-load standby; built-in flashlight LED driver; I2C interface support.
• Comprehensive protection and high reliability: input OVP/UVP, output OCP/OVP/SCP, battery overcharge/over-discharge/overcurrent, chip over-temperature, charge/discharge NTC temperature protection; 4kV ESD protection; 20V voltage rating on input pins (including CC pins).
• Simplified BOM: integrated switching power MOSFETs and path MOSFETs; single-inductor charge/discharge architecture; QFN40 package, 6mm×6mm, 0.5mm pitch.
