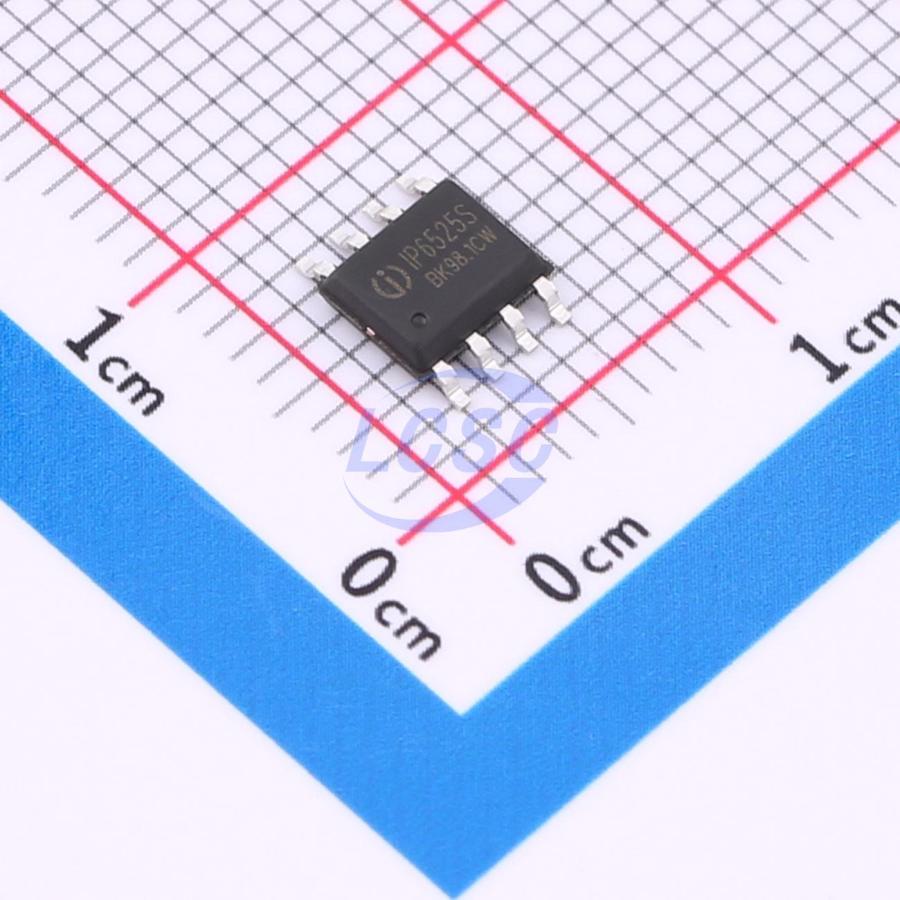

Power Supply Controller 18W ESOP-8 Power Management - Specialized

ESOP-8RoHSActive

Step-down SOC with a maximum output of 22.5W and integrated fast-charging output protocol

Manufacturer: INJOINIC
Manufacturer part #: IP6525S_EN
Store part #: C46550236
Package / case: ESOP-8
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,797 in stock

#C46550236

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹75.61	₹75.61
10+	₹59.75	₹597.50
30+	₹53.01	₹1,590.30
100+	₹44.55	₹4,455.00
500+	₹40.85	₹20,425.00
1,000+	₹38.46	₹38,460.00

Quantity (min 1)

1 × ₹75.61

₹75.61

excl. GST

₹89.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

IP6525S_EN

₹75.61 for 1 + GST

Specifications

Type: Power Supply Controller
Features: Soft-start;Undervoltage Protection;Overvoltage protection;Overcurrent Protection;Short-Circuit Protection;Thermal Protection;With enable;Automatic protocol detection
Protocol: BC 1.2;QC 2.0;QC 3.0;FCP;SCP;AFC;;SFCP;VOOC
Output Power: 18W
Voltage - Supply: 5.2V~32V
Output Voltage: 5V;9V;12V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.172 g

Overview

IP6525S is a buck system-on-chip integrating a synchronous switching buck converter with multi-protocol fast charging output support, providing a complete solution for car chargers, fast charging adapters, and smart power strips. The chip integrates built-in power MOSFETs, with an input voltage range of 5.2V to 32V, an output voltage range of 3V to 12V, and a maximum output power of 22.5W. It automatically adjusts output voltage and current based on the detected fast charging protocol, with typical outputs of 5V/3.4A, 9V/2.0A, and 12V/1.5A. The device features automatic OCP adjustment, supporting 5V/4.5A and 4.5V/5A output after successful handshake with low-voltage fast charging protocols such as SCP. Output voltage line compensation is supported, whereby increasing output current correspondingly raises the output voltage to compensate for the voltage drop caused by cable impedance. The chip also integrates soft-start functionality to prevent inrush current from affecting input power supply stability. It automatically detects the fast charging protocols supported by the connected device via the DP/DM pins and adjusts the output accordingly. Supported protocols include DCP (Apple and BC1.2), Qualcomm QC2.0/QC3.0, Huawei FCP and SCP, Samsung AFC (up to 12V), MediaTek PE+1.1/PE+2.0, Spreadtrum SFCP, and OPPO VOOC. IP6525S integrates comprehensive protection features, including input OVP/UVP, output OCP/OVP/UVP/SCP, DP/DM OVP, and full-system OTP, with an ESD protection rating of 4KV and an input DC withstand voltage of 40V. The chip is available in an ESOP8 package.

Applications

On-board charger
Fast charging adapter
Smart power strip

Key features

Integrated synchronous step-down converter with built-in power MOSFETs
Input voltage range: 5.2V to 32V
Output voltage range: 3V to 12V, auto-adjusted per fast charging protocol
Maximum output power: 22.5W (SCP protocol)
Multi-protocol fast charging support: DCP, QC2.0, QC3.0, FCP, AFC, SFCP, MTK PE+, SCP, VOOC
Constant voltage, constant power, and constant current output characteristics
High conversion efficiency: 94.2% at VIN=24V, VOUT=5V/3A
Integrated soft-start function
Output voltage line compensation: 50mV@1A compensation voltage
Multiple protections: output overcurrent, input OVP/UVP, output short circuit, DP/DM OVP, and thermal shutdown
ESD protection: 4KV; input DC withstand voltage: 40V
