InfineonDatasheet (PDF)

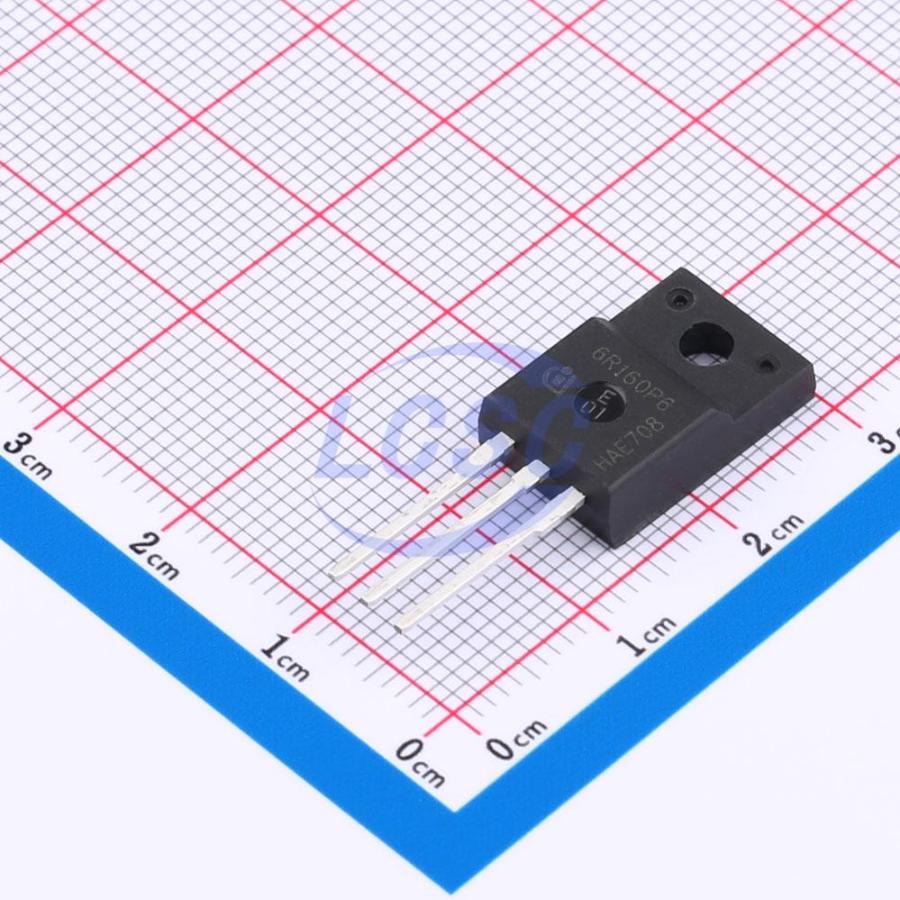

IPA60R160P6
650V 15A 176W 160mΩ 1 N-channel N-Channel TO-220FP-3 Single FETs, MOSFETs RoHS
TO-220FP-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPA60R160P6
- Store part #
- C536354
- Package / case
- TO-220FP-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C536354
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹380.10 | ₹380.10 |
| 10+ | ₹320.02 | ₹3,200.20 |
| 50+ | ₹282.57 | ₹14,128.50 |
| 100+ | ₹244.04 | ₹24,404.00 |
| 500+ | ₹226.84 | ₹1,13,420.00 |
| 1,000+ | ₹219.22 | ₹2,19,220.00 |
1 × ₹380.10
₹380.10
excl. GST
₹448.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPA60R160P6
₹380.10 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 89pF
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 2.08nF
- Pd - Power Dissipation
- 176W
- RDS(on)
- 160mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 44nC@400V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.99 g
Overview
CoolMOS is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The CoolMOS P6 series combines the expertise of a leading SJ MOSFET supplier with best-in-class innovation. The offered devices deliver all the advantages of fast-switching SJ MOSFETs without sacrificing ease of use. Ultra-low switching and conduction losses enable switching applications to be more efficient, compact, lightweight, and thermally optimized.
Applications
- PFC stage circuits - Hard-switching PWM stage circuits - Resonant switching stage circuits, e.g. for PC power supplies, adapters, LCD and plasma TVs, lighting, servers, telecom and UPS
Key features
- Enhanced MOSFET dv/dt robustness
- Ultra-low FOM (Rdson×Qg and Eoss) for minimal switching losses
- Extremely high commutation robustness
- Easy to use/drive
- Lead-free plating, halogen-free molding compound
- JEDEC (J-STD20 and JESD22) compliant for industrial-grade applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WTM22N65AF#C50176606WPMtek · TO-220F | WPMtek | TO-220F | 56 | ₹84.31 · 56 in stock | View |
 | NCE70T180F#C502888NCE · TO-220F | NCE | TO-220F | 44 | ₹304.36 · 44 in stock | View |
 | ASA60R170E#C5439997ANHI · TO-220F | ANHI | TO-220F | 40 | ₹208.80 · 40 in stock | View |
 | IPA60R099P7XKSA1#C672156Infineon · TO-220FP-3 | Infineon | TO-220FP-3 | 100 | ₹638.64 · 100 in stock | View |
 | FDPF20N50FT-VB#C7569001VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 38 | ₹403.09 · 38 in stock | View |
