InfineonDatasheet (PDF)

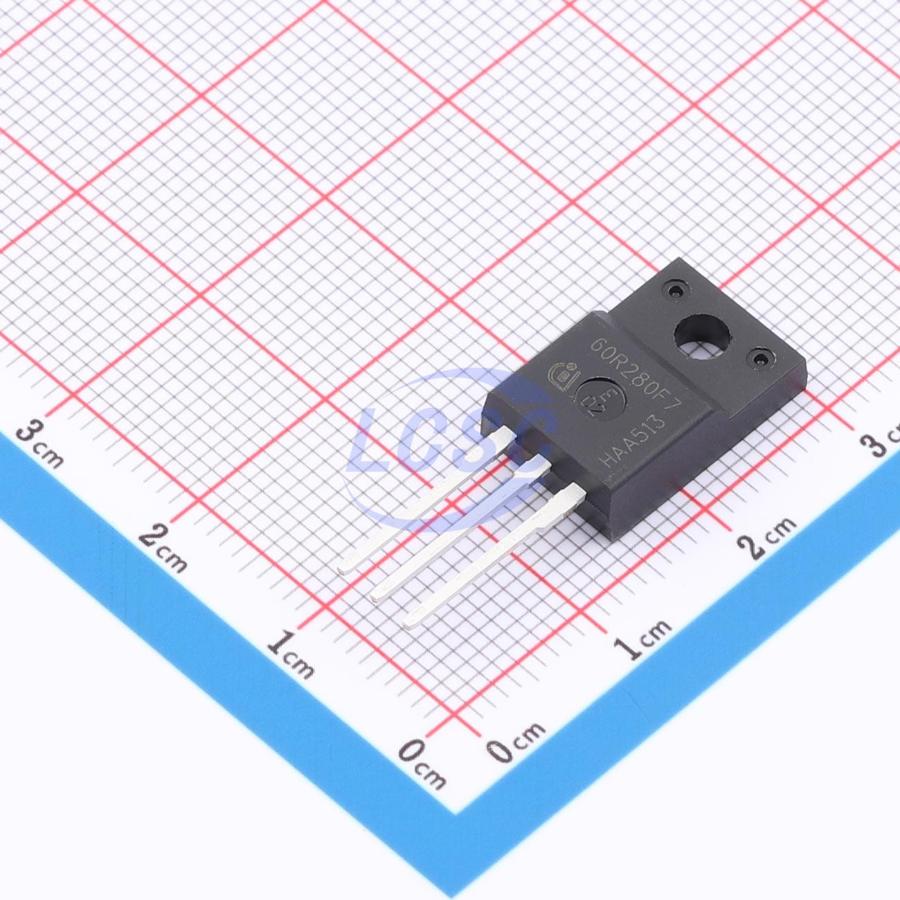

IPA60R280CFD7
600V 6A 24W 237mΩ@10V 1 N-channel N-Channel TO-220F-3 Single FETs, MOSFETs RoHS
TO-220F-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPA60R280CFD7
- Store part #
- C536369
- Package / case
- TO-220F-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C536369
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹283.94 | ₹283.94 |
| 10+ | ₹278.99 | ₹2,789.90 |
| 30+ | ₹275.77 | ₹8,273.10 |
| 100+ | ₹272.55 | ₹27,255.00 |
1 × ₹283.94
₹283.94
excl. GST
₹335.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
IPA60R280CFD7
₹283.94 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 14pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 807pF
- Pd - Power Dissipation
- 24W
- RDS(on)
- 237mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.156 g
Overview
CoolMOS is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The latest CoolMOS CFD7 is the successor to the CoolMOS CFD2 series and is an optimized platform tailored specifically for soft-switching applications such as Phase-Shifted Full Bridge (ZVS) and LLC. With reduced gate charge (Qg), best-in-class reverse recovery charge (Qrr), and improved turn-off characteristics, CoolMOS CFD7 achieves maximum efficiency in resonant topologies. As part of Infineon's fast body diode portfolio, this new product family combines all the advantages of fast switching technology with excellent hard-commutation robustness, while maintaining ease of implementation throughout the design-in process. CoolMOS CFD7 technology meets the highest standards of efficiency and reliability, and supports high power density solutions. Overall, CoolMOS CFD7 makes resonant switching topologies more efficient, more reliable, lighter, and cooler.
Applications
- Suitable for soft-switching topologies
- Optimized for phase-shifted full-bridge (ZVS) and LLC applications — servers, telecom, EV charging
Key features
- Ultra-fast body diode
- Low gate charge
- Best-in-class reverse recovery charge (Qrr)
- Improved dv/dt and diF/dt robustness of MOSFET body diode
- Lowest figure-of-merit RDS(ON)*Qg and RDS(ON)*Eoss
- Best-in-class RDS(ON) in SMD and THD packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IPA60R280P7#C536372Infineon · TO-220FP-3 | Infineon | TO-220FP-3 | 10 | ₹353.15 · 10 in stock | View | |
 | IPA60R280P7SXKSA1#C536373Infineon · TO-220FP-3 | Infineon | TO-220FP-3 | 116 | ₹168.56 · 116 in stock | View |
 | NTPF360N65S3H#C2902187onsemi · TO-220F | onsemi | TO-220F | 77 | ₹473.22 · 77 in stock | View |
 | STF18N60M2#C146209ST · TO-220FP | ST | TO-220FP | 2,690 | ₹79.04 · 2,690 in stock | View |
 | STFH18N60M2#C495240ST · TO-220FP-3 | ST | TO-220FP-3 | 4 | ₹132.04 · 4 in stock | View |
